THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
4880 ± 80mm
4
REV.
REVISION
DESCRIPTION
DATE
APPROVED
4
2
CN1
1
3
CN2
5.4MIN
11.75MIN
NOTES:
1. CABLE: UL2725
28AWG*1PR+24AWG*2C+AEB(AL) 65%
OUTER JACKET: BLACK, OD: 4.2 ± 0.2mm
2. CONNECTOR: USB 2.0 A TYPE MALE
INSULATOR: WHITE PBT
PIN G/F
NICKEL PLATED SHELL
3. CONNECTOR: MICRO USB 2.0 B TYPE MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
4. PVC MOLDED: 45P BLACK COLOR
5. ELECTRICAL TEST:
<1>.100% OPEN SHORT & MISS WIRE TEST
<2>. INSULATION RESISTANCE: DC300V 10M ohm MIN.
<3>. CONDUCTOR RESISTANCE: 5 ohm MAX.
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.

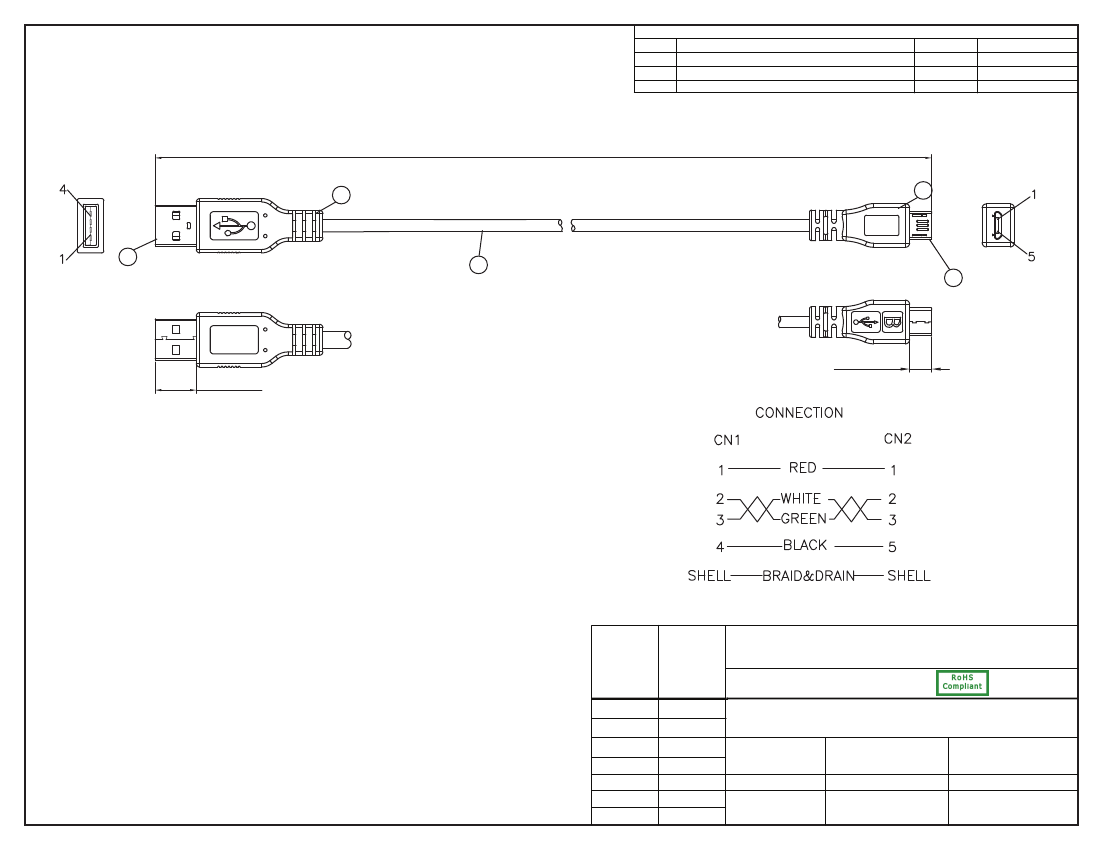

Part Number:
Description:
WCI DIVISION
3025035-16
USB 4P(A)/M - MICRO USB 5P(B)/M
UNIT: mm
Drawn / Date
R. Nuti
08-30-16
Checked / Date
08-30-16
Approved / Date
LY / 08-30-16
