8117 Overview

MAGNET RECTANGULAR NDFEB AXIAL

8117 Parametric

Parameter NameAttribute value
shaperectangle
magnetizationAxial
MaterialNeodymium Iron Boron (NdFeB)
surfaceNiCuNi
gradeN35
Gaussian intensity2186G (surface magnetic field strength)
size2.000" long x 1.000" wide x 0.250" high (50.8mm x 25.4mm x 6.35mm)
Operating temperature-

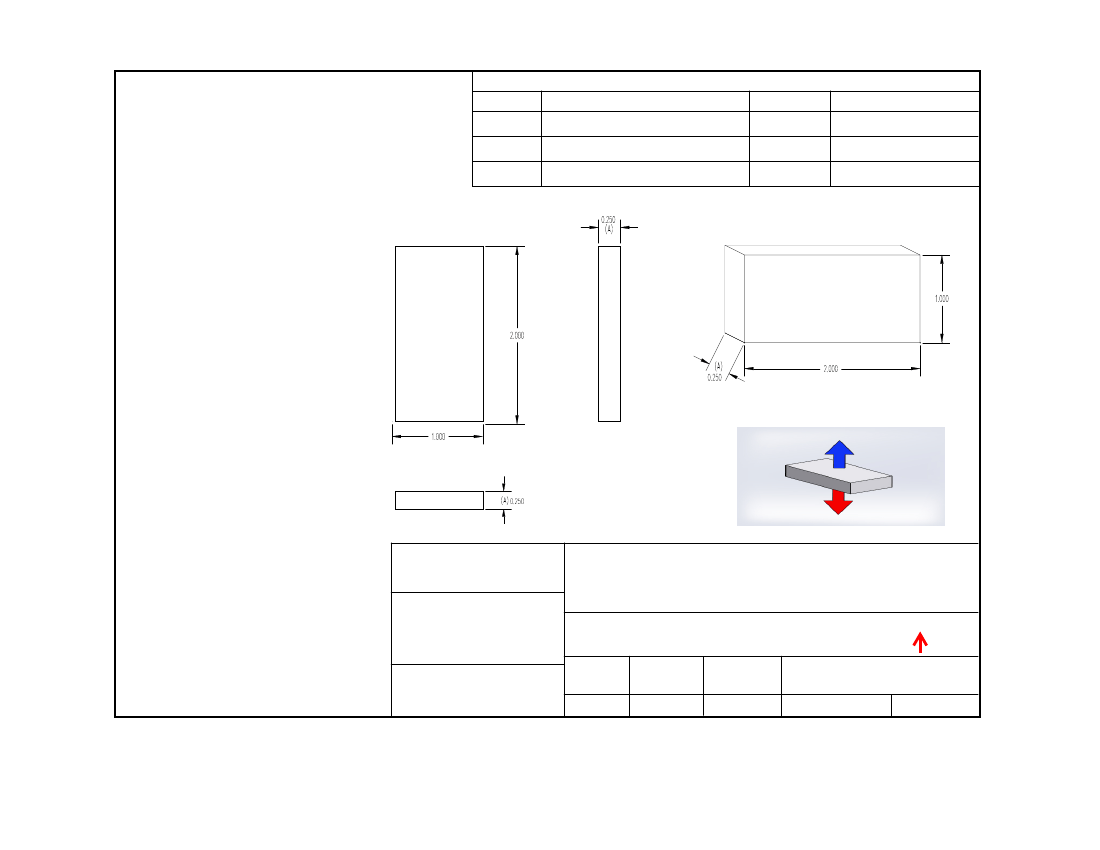

REVISIONS
LTR
DESCRIPTION
INITIAL RELEASE
DATE
APPROVED
H D
_
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTONS:
DECIMALS:
ANGLES:
± 1/64
± 0.015
±1°
SHAPE
RADIAL MAGNETS INC.
108B NW 20th St. BOCA RATON,FL 33431 (561)392-2103
STRENGTH
PLATING
NiCuNi
SIZE AND DIRECTION OF MAGNETIZATION (A)
BLOCK
SIZE
A
SCALE 2 : 1
N35
PART #
8117
1" x 2" x 1/4"
REVISION
-
APPROVED:
HD
PAGE 1 OF
1
DRAWING #
RM8117
MATERIAL:
FINISH:
NdFeB
NiCuNi
DRAWN: CG
CHECKED: HD
