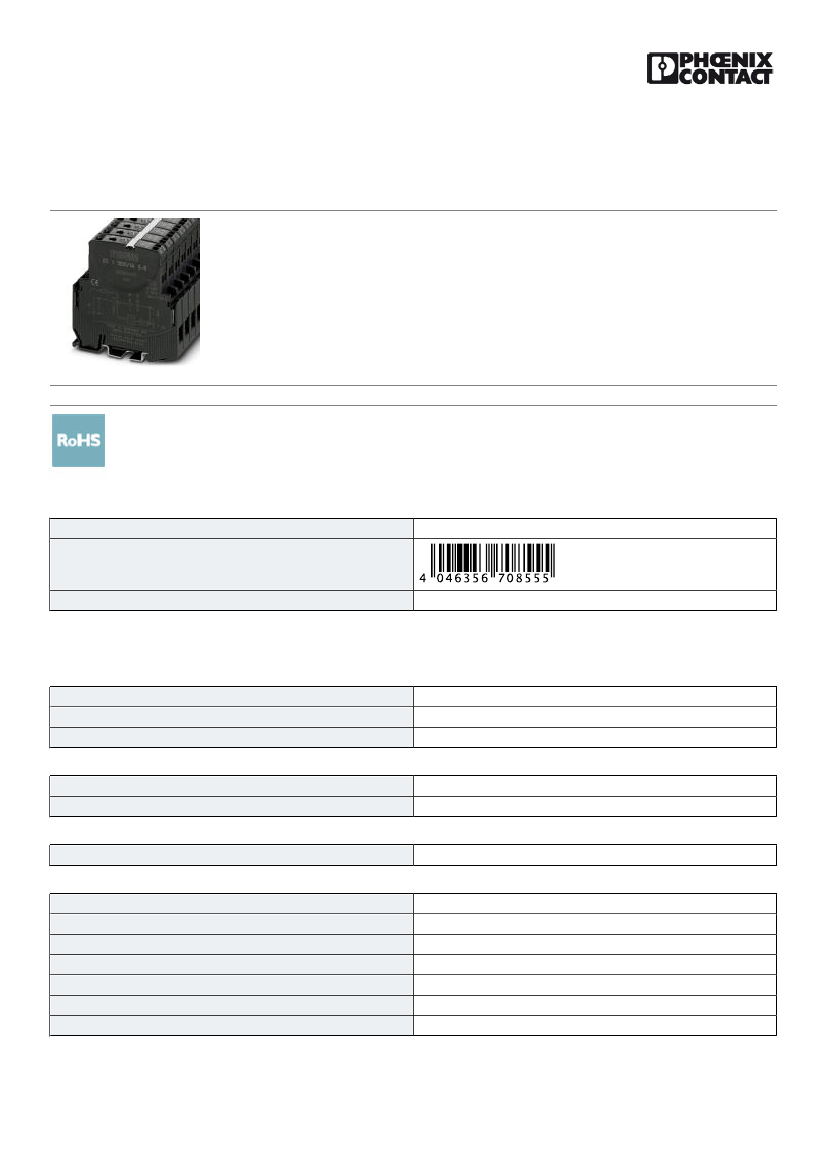

Electronic device circuit breaker - EC 1 12DC/2A S-R - 3000761
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Electronic circuit breaker, reset input and status output, nominal current: 2 A
Key Commercial Data
Packing unit
GTIN
GTIN
4046356708555
10 pc
Technical data
General
Mounting type
Color
Number of positions
DIN rail: 35 mm
black
1
Dimensions
Height
Width
80 mm
12.5 mm
Ambient conditions
Ambient temperature (operation)
-20 °C ... 60 °C (ordinary locations)
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
0.5 mm²
10 mm²
0.5 mm²
10 mm²
0.5 mm²
4 mm²
0.5 mm²
10/28/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3000761
Electronic device circuit breaker - EC 1 12DC/2A S-R - 3000761
Technical data
Connection data
2 conductors with same cross section, stranded max.
Connection method
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
4 mm²
Screw connection
10 mm
M4
1.5 Nm
1.8 Nm
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
DNV GL / UL Recognized / UL Listed / UL Recognized / cUL Recognized / cUL Listed / EAC / cULus Listed
Ex Approvals
UL Recognized
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00002HC
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 317172
10/28/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3000761
Electronic device circuit breaker - EC 1 12DC/2A S-R - 3000761
Approvals
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
EAC
RU C-
DE.A*30.B01546
cULus Listed
