1300150049

Description
CBL MALE TO WIRE LEAD 10POS 6'
CategoryWire/cable
File Size227KB,2 Pages
ManufacturerMolex Premise Network
Download Datasheet Parametric Compare View All

1300150049 Online Shopping

Suppliers Part Number Price MOQ In stock
1300150049 - - View Buy Now

1300150049 Overview

CBL MALE TO WIRE LEAD 10POS 6'

1300150049 Parametric

Parameter NameAttribute value
first connectormale head
1st Connector Number of Positions10
1st Connector Number of Positions Loadedall
Second connectorWire leads
length6.00'(1.83m)
Cable typeSingle
colormultiple
shieldNo shielding
useIndustrial environment - IP67
10
9
8
7
6
5
4
3
2
1
F
1
2
5
4
F
E
3
6
E
D

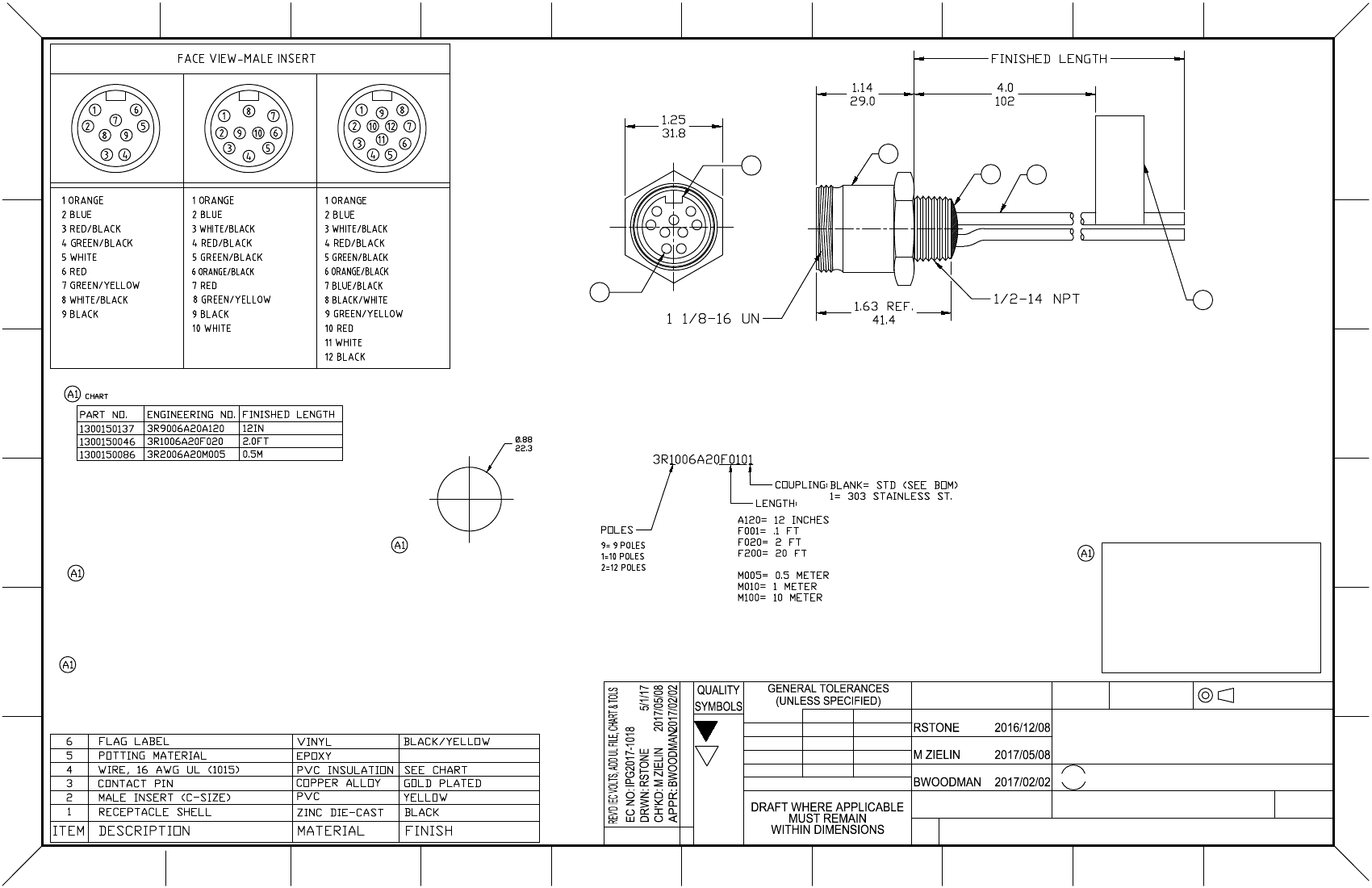

PART NUMBER LEGEND
D
C
NOTES:
1. MATERIAL: AS NOTED
2. FINISH: AS NOTED
3. ELECTRICAL:
VOLTAGE: 320V PER IEC60664
600V PER UL2238
CURRENT: 9 POLE: 7A
10 POLE: 7A
12 POLE: 5A
5. PROTECTION: IP67 (WHEN MATED)
6. UL RECOGNIZED, FILE: E152210
7. DIMS ARE FOR REFERENCE
UNLESS OTHERWISE NOTED
C
REF. KNOCKOUT HOLE
CABLE LENGTH TOLERANCES
>.3M [1FT]: +19mm-0 [ +.75in-0]
.3 - .9M [1 - 3FT]: +44.5mm-0 [+1.75in-0]
.9 - 1.8M [3 - 6FT]: +55.6mm-0 [+2.19in-0]
1.8 - 3.7M [6 - 12FT: +88.9mm-0 [+3.50in-0]
3.7 - 7.3M [12 - 24FT]: +165.1mm-0 [+6.50in-0]
7.3-14.6M [24 - 48FT]: +317.5mm-0 [+12.50in-0]
14.6 - 30.5M [48-100FT]: +622.3mm-0 [+24.50in-0]
OVER 30M [100FT] +2% OF FINISHED LENGTH
DIMENSION STYLE
SCALE
DESIGN UNITS
B
B
IN/MM
DESCRIPTION
---
TITLE
INCH
THIRD ANGLE
PROJECTION
=
0
C
=
0
A
4 PLACES
3 PLACES
2 PLACES
1 PLACE
mm
---
---
---
---
---
INCH
---
---
---
---
DRAWN BY
DATE

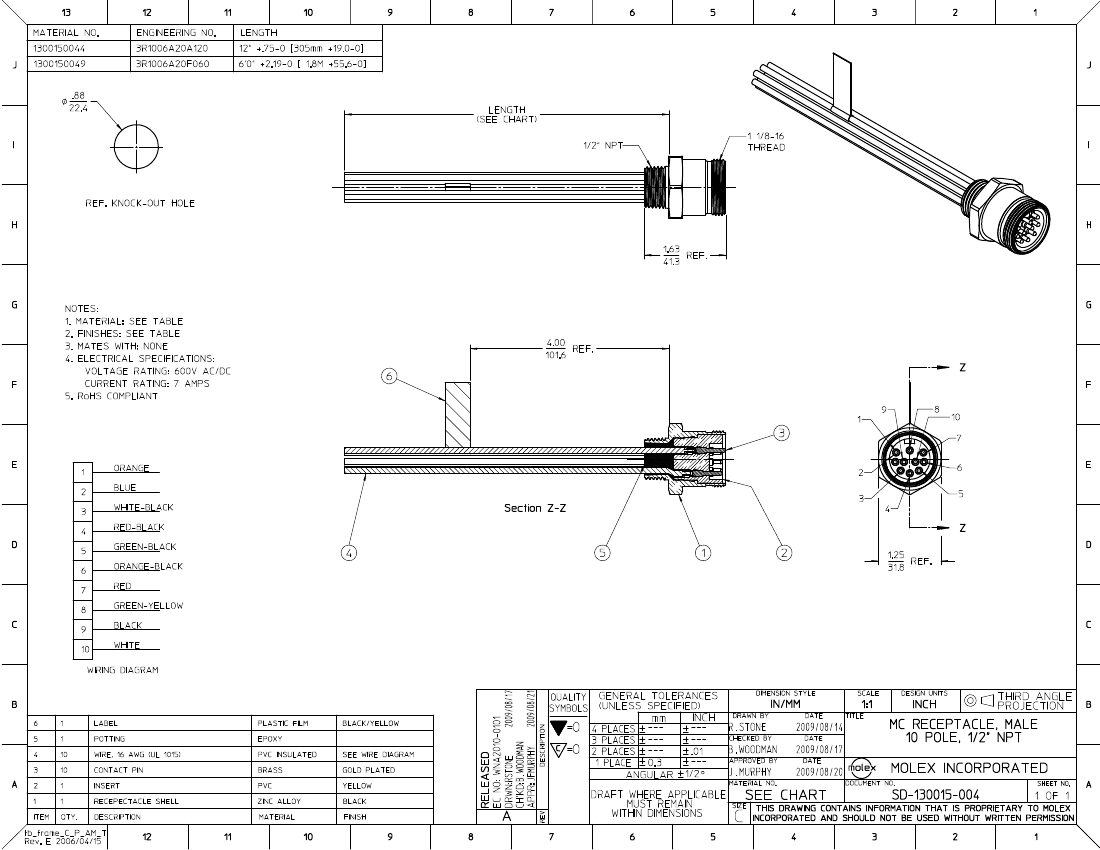

MINI-CHANGE RECEPTACLE
CHECKED BY
DATE
APPROVED BY
DATE
molex
9, 10, & 12P MALE
16 AWG
MOLEX INCORPORATED
SHEET NO.
A
MATERIAL NO.
DOCUMENT NO.
---
SIZE
SD-130015-027
3
2
1
1 OF 1
A1
B
5
4
10
9
8
7
6
REV
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX
INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
