The ABC180 Series of ultra low profile open frame power supplies
feature a wide universal AC input range of 80
–
264 VAC, offering up
to 180 W of output power with 13 CFM, or up to 120 W with convection
cooling in a compact footprint, with a variety of isolated single output
voltages.
The high efficiency and high power density of the ABC family ensures
minimal power loss in end-use equipment, thereby facilitating higher
reliability, easier thermal management and meets regulatory approvals
for environmentally-friendly end products.
These power supplies are ideal for broad range of telecom, datacom,
industrial equipment and other applications.
•
•
•
•
•
•
•
4 x 2 x 0.75 Inches Form factor
180 Watts with Forced Air Cooling
Efficiencies up to 92%
-40 to 70°C degree operating temperature
12 V / 0.5 A Fan Output, Thermal Shut-Down feature
3.37 million Hours, Telcordia -SR332-issue 3 MTBF
Standby Power < 0.5W
•
•
•
•
Instrumentation
Lighting
Industrial Applications
Applied Computing
•
•
•
•
Renewable Energy
Test and Measurement
Robotics
Wireless Communication
ABC180 Series
2
ABC180-1T12L
ABC180-1012L
ABC180-1T15L
ABC180-1015L
ABC180-1T24L
ABC180-1024L
ABC180-1T30L
ABC180-1030L
ABC180-1T48L
ABC180-1048L
ABC180-1T58L
ABC180-1058L
COVER-180-XBC
2
Screw Terminal
12 V
Molex Connector
Screw Terminal
15 V
Molex Connector
Screw Terminal
24 V
Molex Connector
Screw Terminal
30 V
Molex Connector
Screw Terminal
48 V
Molex Connector
Screw Terminal
58 V
Molex Connector
metal cover kit accessory
1.94 A
2.07 A
3.1 A
0.0 A
1%
2.34 A
2.5 A
3.75 A
0.0 A
1%
3.75 A
4A
6A
0.0 A
1%
4.68 A
5A
7.5 A
0.0 A
1%
7.5 A
8A
12 A
0.0 A
2%
9.37 A
10 A
15 A
0.0 A
2%
Specifications are for nominal input voltage, 25°C unless otherwise stated.
Input Voltage
Input Frequency
Input Current
No Load Power
Inrush Current
Leakage Current
Power Factor
Switching Frequency
Universal
(Derate from 100% at 100 VAC to 77% at 80 VAC)
115 VAC:
230 VAC:
Typical for ABC180-1XXX
Typical for ABC180-1XXX-PGPF
115 VAC:
230 VAC:
264 VAC:
Typical (N.A. For Class II Option- without input Earth pin)
Touch current
115 VAC:
230 VAC:
PFC
PWM
80-264 VAC / 390 VDC
47-63 Hz
2.2 A max.
1.1 A max.
< 0.5 W
< 0.85 W
25 A
45 A
75 A
300 µA
< 100 µA
> 0.95
0.90
70 to 130 kHz
50 to 80 kHz
1
Ripple is peak to peak with 20 MHz bandwidth and 10 µF (Tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line voltage
and load ranges.
2
When used in Cover Kit, de-rate output power to 70 % under all operating conditions.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00879_AB
© 2017 Bel Power Solutions & Protection
ABC180 Series
3
Output Power
3
Efficiency
(
typical @ 230 VAC full load)
Hold-up Time
Line Regulation
Load Regulation
Transient Response
Voltage Adjustment
Rise Time
Set Point Tolerance
5
4
With 13 CFM forced air cooling
With natural convection cooling at 100 to 264 VAC
48 V, 58 V:
24 V, 30 V:
12 V, 15 V:
At 180 W:
At 120 W:
180 W
up to 120 W
92%
90%
88%
10 ms
16 ms
+/-0.5%
+/-1%
25% step load change, at 0.1 A/ µs slew rate,
50% duty cycle, 50 Hz = 4%
Typical
recovery time < 5 ms
+/-3%
55 ms
+/-1%
> 110%
110 to 140%
Over Current Protection
Over Voltage Protection
Short Circuit Protection
Hiccup mode
Operating Temperature
6
Storage Temperature
Relative Humidity
Altitude
MTBF
Startup guaranteed with spec. deviation
Non-condensing
Operating:
Non-operating:
Telcordia -SR332-issue 3
-40 to +70°C
-40 to 0°C
-40 to +85°C
5% to 95%
16,000 ft.
40,000 ft.
3.37 million hours
Conducted Emissions
Radiated Emissions
Input Current Harmonics
Voltage Fluctuation and Flicker
ESD Immunity
Radiated Field Immunity
Electrical Fast Transient Immunity
Surge Immunity
Conducted Immunity
Magnetic Field Immunity
Voltage Dips, Interruptions
EN55032-B, CISPR22-B, FCC PART15-B
EN 55032 A;
with external core (King core K5B RC 25x12x15-M in input cable)
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
Pass
Pass
Level B
Class D
Pass
Level 3, Criterion A
Level 3, Criterion A
Level 3, Criterion A
Level 3, Criterion A
Level 3, Criterion A
Level 3, Criterion A
Criterion A & B
3
4
Combined output power of main output, fan supply shall not exceed max. Power rating.
Adjustment potentiometer is located on the SMT side of the PCB.
5
Fan supply output voltage tolerance including set point accuracy, line & load regulation is +/-10% and Ripple & noise is less than 10%.
6
Output ripple can be more than 10% of the output voltage.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00879_AB
© 2017 Bel Power Solutions & Protection
ABC180 Series
4
Isolation Voltage
Safety Standard(s)
Agency Approvals
CE mark
Input to Output: (for ITE applications)
Input to GND:
(Not Applicable for Class II Option*)
Approved to the latest edition of the following
standards: CSA/UL60950-1, EN60950-1 and
IEC60950-1. Class1 SELV
Nemko, UL, C-UL
Complies with LVD Directive
3000 VAC
1500 VAC
* Class II Option means without input Earth pin.
AC Input Connector
J1
Pin 1
Pin 2
Pin 3
Pin 1, 2, 3
Pin 4. 5. 6
Pin 1
Pin 2
Pin 1
Pin 2
Pin 3
AC Line
Not Fitted
AC Neutral*
V1 +VE
V1 -VE
FAN +VE
FAN -VE
Vs
PGPF
GDN
Molex: 26-60-4030
Mating: 09-50-3031; Pins: 08-50-0106
Option 1 (Screw Terminal): Molex: 39357 Series or equivalent
Option 2 (Molex Connector): Molex: 26-60-4060
Mating: 09-50-3061; Pins: 08-50-0106
AMP: 640456-2
Mating: 640440-2
AMP :640456-3
Mating: 640440-3
DC Output Connector
Aux (Fan) Output
Signal Output
7
J2
J3
J4
*Fusing on neutral for ITE model is optional.
Power good / AC fail signal specs
Weight
Dimensions
Cooling
8
approx. 200 g
101.6 x 50.8 x 19.05 mm (4 x 2 x 0.75 inches)
180 W with 13 CFM forced air cooling (refer to Mechanical Drawing)
Up to 120 W with natural convection cooling (refer to Derating Curve)
7
A TTL signal is available at pin 2 of J4 which goes high 100-500mS after output voltage reaches 90% of set value.
It goes low a minimum of 1 ms before output falls below 90% of the set value, when input AC is switched off.
8
180 W with 13CFM forced air cooling and 120 W with natural convection cooling at 100 to 264 VAC.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00879_AB
© 2017 Bel Power Solutions & Protection
ABC180 Series
5

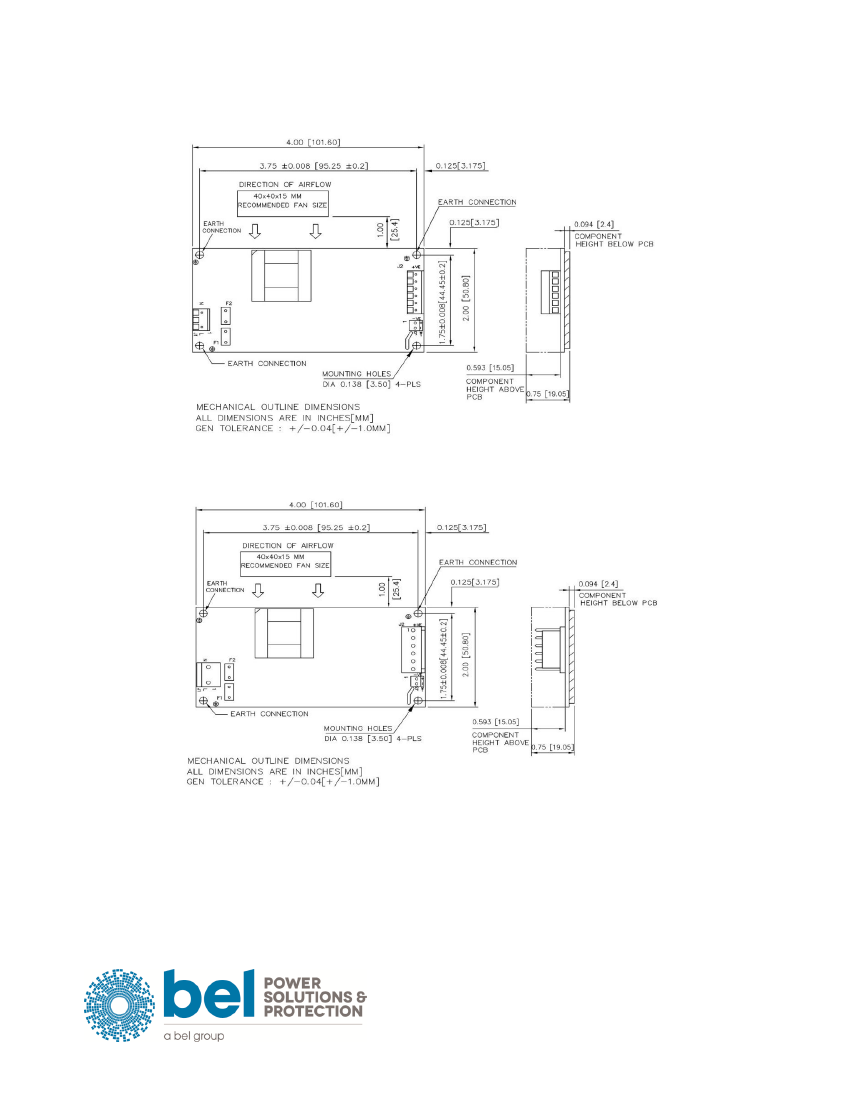

Mechanical Drawing
–
Option 1 without PGPF
Mechanical Drawing
–
Option 2 without PGPF
NOTES:
In case the PCB is mounted in a metal enclosure, using metal hardware ensure the following:
1
Stand off, used to mount PCB has OD of 5.4 mm max.
2
Screws, used to fix PCB on stand off, have head dia of 6.0 mm max.
3
Washer, if used, to have dia of 6.5 mm max.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00879_AB
© 2017 Bel Power Solutions & Protection
