ZT028LAIC3R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> ZT028LAIC3R

ZT028LAIC3R: DescriptionBUZZER PIEZO 24V 22MM PANEL MT; CategoryModule/solution; File Size41KB，1 Pages; ManufacturerMallory; Websitehttps://www.msdperformance.com/brands/mallory/; Environmental Compliance

Download Datasheet Parametric View All

ZT028LAIC3R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZT028LAIC3R	-	-	View	Buy Now

ZT028LAIC3R Overview

BUZZER PIEZO 24V 22MM PANEL MT

ZT028LAIC3R Parametric

Parameter Name	Attribute value
driver circuit	Indicator light, internally driven
input type	AC，DC
Voltage - Rated	24V
voltage range	20 ~ 28V
frequency	3.9kHz
technology	Piezoelectric
Operating mode	pulse, slow, visual indicator
duration	1 PPS
Sound pressure level (SPL)	85dB @ 20V、61cm
Current - Power	50mA
port location	top
Operating temperature	-30°C ~ 65°C
Approval	cUL，UL
grade	-
Intrusion protection	NEMA 3R，4X，12

Preview

Download Datasheet

View All

Mallory Sonalert Products,Inc.

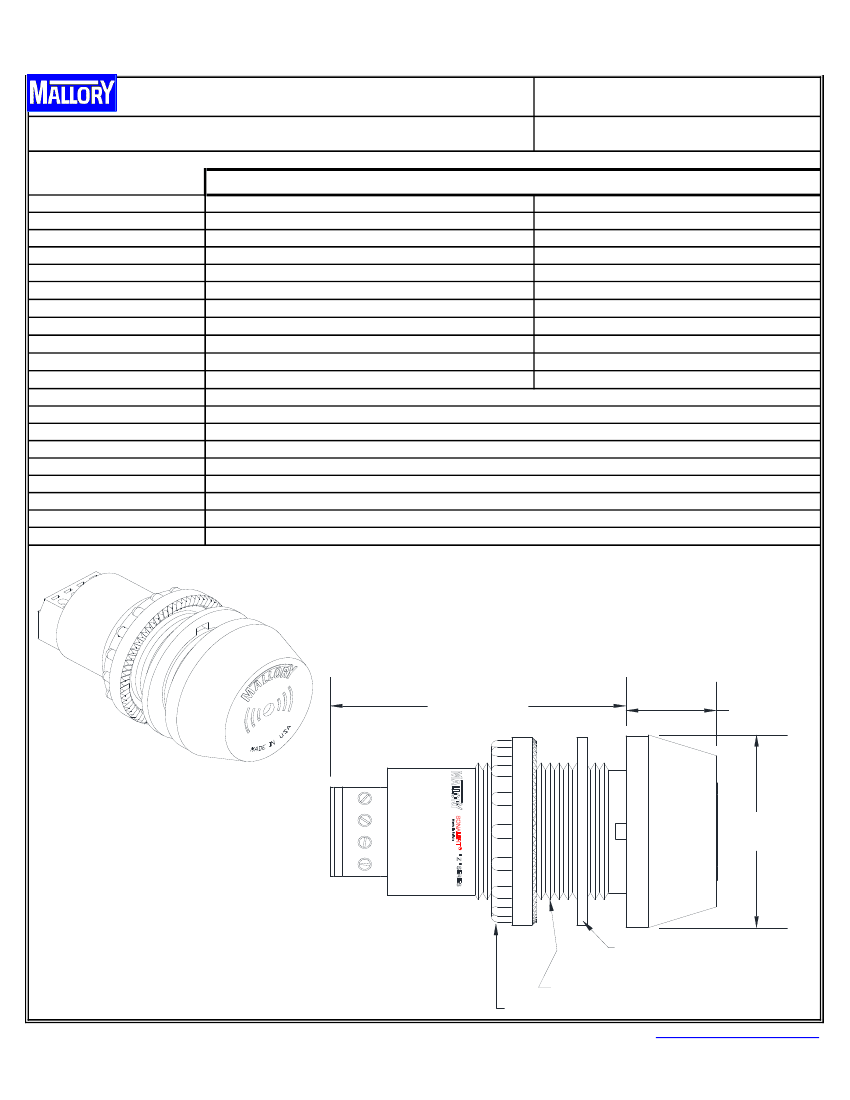

Sales Outline Drawing

Specifications:

Function

Sound Level Category

Mode of Operation

Lens Color

LED Color

Rated Voltage

Voltage Range

Power Connection

Current Draw

Frequency

Loudness @ 2 FT

Housing Material

Front Cap Material

Storage Temperature

Operating Temperature

Panel Mounting

Knurled Nut

Weight (Typical)

NEMA 3R,4X, & 12

Options

Part #:

Revision:

ZT028LAIC3R

INDIVIDUAL CONTROL OF LIGHT AND SOUND

LIGHT

SOUND

N/A

Loud

Continuous

Slow Pulse @ 1 PPS

Opaque White

N/A

RED

N/A

24 Vac/dc

20 to 28 VAC/DC

L~ to ~Vac/dc & L~ to ~Vac/dc

S~ to ~Vac/dc & S~ to ~Vac/dc

25mA MAX

N/A

3900 ± 500 Hz

N/A

85 to 95 dB(A) Typ.

6/6 Nylon, Color: Black

6/6 Nylon, Color: Opaque White

-40° to +80° C

-30° to +65° C

Recommended hole size is 22.5 mm. Thread front will fit standard 22.5mm hole.

Used to attach part to panel. The max recommended torque is 10 in-lbs.

28 g

Approved with use of included gasket.

Please contact factory.

Dimensions:

Inches (mm)

cUL Recognized

ROHS Compliant

1.710 [43.44]

0.524 [13.31]

4411 South High School Road, Indianapolis, Indiana 46241 U.S.A · Phone: (317) 612-1000 Fax: (317) 612-1010

L~ L~ S~ S~

Gasket

M22 x 1.5 Thread

<0.86 Maj. Dia.

Knurl nut

1.210 [30.74]

www.mallory-sonalert.com
