3122-20-1-0500-005-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 3122-20-1-0500-005-1-TS

3122-20-1-0500-005-1-TS: DescriptionHOOK-UP STRND 20AWG BLUE 500'; CategoryWire/cable; File Size185KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

3122-20-1-0500-005-1-TS Overview

HOOK-UP STRND 20AWG BLUE 500'

3122-20-1-0500-005-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	20 AWG
Number of wire strands	21/0.0071"
conductor material	Copper, tin plated
Sheath (insulation) material	silicone rubber
Sheath (insulation) diameter	0.073"（1.85mm）
Sheath (insulation) thickness	0.019"（0.48mm）
length	500.0'（152.4m）
Voltage	300V
Operating temperature	-50°C ~ 200°C
Casing color	blue
grade	UL type 3122
characteristic	Oil resistant

Preview

Download Datasheet

View All

service, high temperature appliance etc.

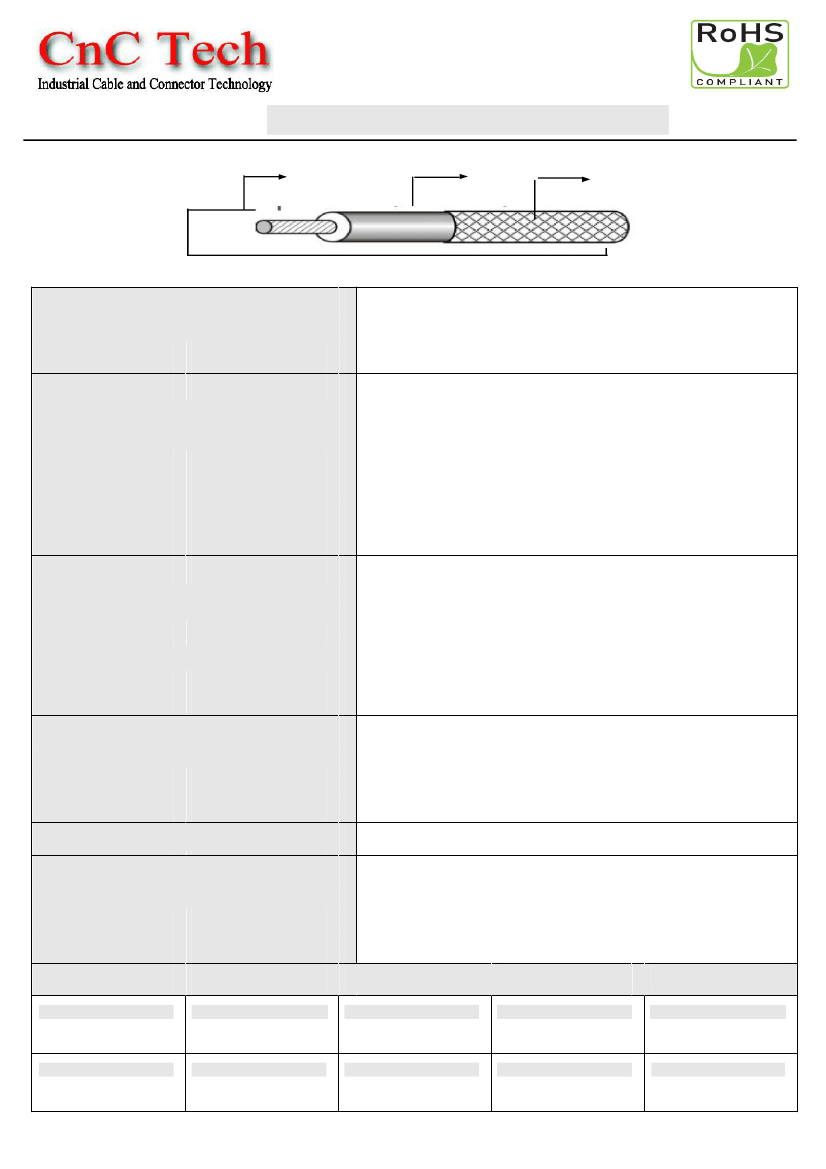

P/N 3122-20-1-0500-0XX-1-TS

(Conductor:Conductor:TinnedTinnestrands)Strands

Insulation:(Insulation:SiliconeSiliconeRubberRubber)

Fiberglass

UL3122 Fiberglass Braiding over Silicone Rubber Wire 200℃ 300V(20AWG)

Tinned Strands, copper conductor, 21/0.180mm strands.

(OD without fiber glass is

Overall Diameter=2.15+/-0.20mm

1.850mm)

silicone rubber insulation thickness:0.48mm

fiber thickness: 0.15mm

CONSTRUCTION:

CERTIFICATION & APPROVALS:

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

AWG 3122 200°C 300V E108485-S ( )AWG REI HSING

CSA SEW-1 200° 300V LL84687 -H- SILICONE RUBBER

Rated Temperature: 200℃ ~ -50℃

PHYSICAL

ELECTRICAL PROPERTIES:

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min.

Flexibility: Silicone Rubber Insulation

Maximum Conductor Resistance: 39.5 ohm/km

Resistant to: Oil, hot & cold, lighter, flexing.

APPLICATIONS:

Pass FT2 flame test

Suitable for Lights, Electric heaters, electric heated household

service, high temperature appliance etc.

PACKAGING:

ENVIRONMENTAL APPROVALS:

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC.

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

3122-20-1-0500-001-1-TS

3122-20-1-0500-002-1-TS

3122-20-1-0500-003-1-TS

3122-20-1-0500-004-1-TS

3122-20-1-0500-005-1-TS

BLACK

3122-20-1-0500-006-1-TS

WHITE

3122-20-1-0500-007-1-TS

YELLOW

3122-20-1-0500-008-1-TS

RED

3122-20-1-0500-010-1-TS

BLUE

3122-20-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

3122-20-1-0500-005-1-TS Related Products

	3122-20-1-0500-005-1-TS	3122-20-1-0500-007-1-TS	3122-20-1-0500-004-1-TS	3122-20-1-0500-001-1-TS	3122-20-1-0500-003-1-TS	3122-20-1-0500-006-1-TS	3122-20-1-0500-010-1-TS	3122-20-1-0500-002-1-TS	3122-20-1-0500-008-1-TS	3122-20-1-0500-011-1-TS
Description	HOOK-UP STRND 20AWG BLUE 500'	HOOK-UP STRND 20AWG GREEN 500'	HOOK-UP STRND 20AWG RED 500'	HOOK-UP STRND 20AWG BLACK 100'	HOOK-UP STRND 20AWG YELLOW 100'	HOOK-UP STRND 20AWG BROWN 100'	HOOK-UP STRND 20AWG VIOLET 100'	HOOK-UP STRND 20AWG WHITE 100'	HOOK-UP STRND 20AWG ORANGE 100'	HOOK-UP STRND 20AWG GRN/YEL 100'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG
Number of wire strands	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"	21/0.0071"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber
Sheath (insulation) diameter	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）
Sheath (insulation) thickness	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）
length	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-50°C ~ 200°C	-50°C ~ 200°C	-50°C ~ 200°C	-50°C ~ 200°C	-50°C ~ 200°C	-50°C ~ 200°C	-50°C ~ 200°C	-50°C ~ 200°C	-50°C ~ 200°C	-50°C ~ 200°C
Casing color	blue	green	red	black	yellow	brown	Purple	White	orange color	green,yellow
grade	UL type 3122	UL type 3122	UL type 3122	UL type 3122	UL type 3122	UL type 3122	UL type 3122	UL type 3122	UL type 3122	UL type 3122
characteristic	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant
