TECHNICAL DATA SHEET
N 50
Ω
TERMINATION
PLUG 1 WATT
53S17R-001N3

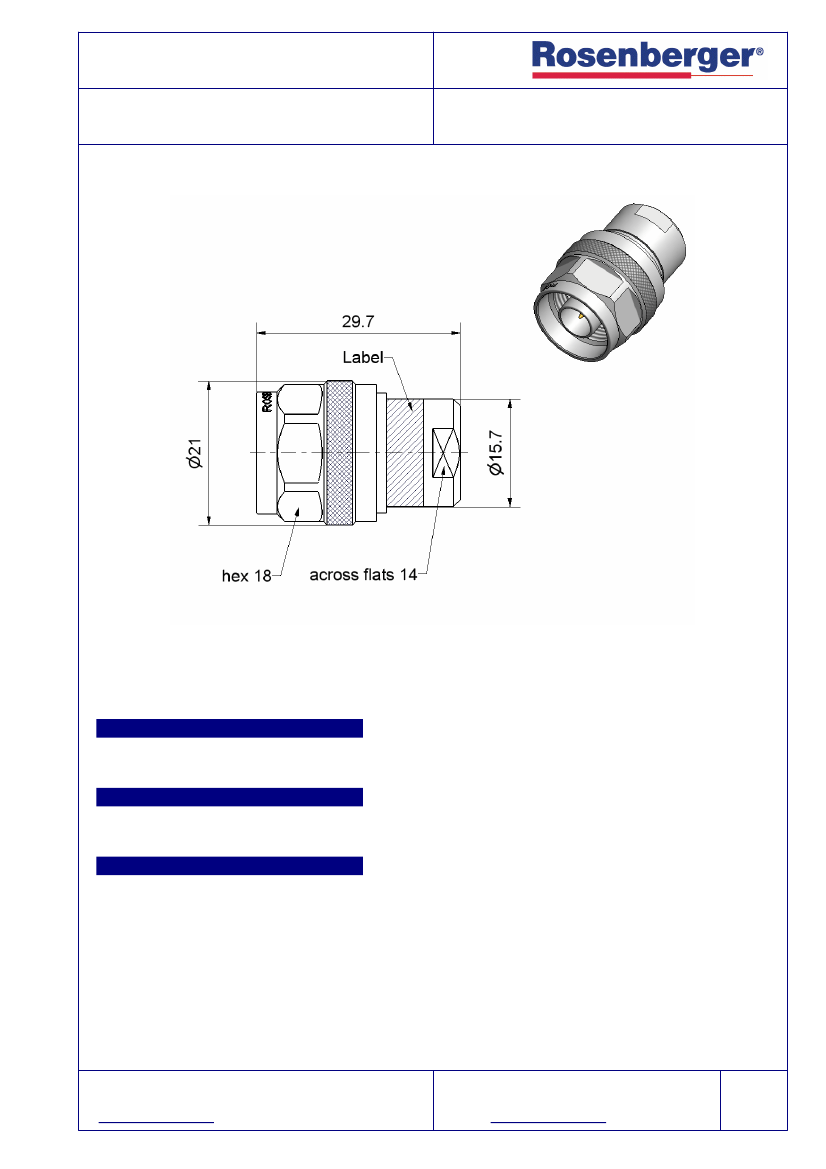

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Coupling nut
Dielectric
Substrate
Material
Brass
Brass
Brass
PTFE
Al
2
O
3
Plating
Gold, min. 1.27 µm, over nickel
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
N 50
Ω
TERMINATION
PLUG 1 WATT
53S17R-001N3
50
Ω
DC to 12.4 GHz
≥
32.2 dB, DC to 1 GHz
≥
26.4 dB, 1 GHz to 2 GHz
≥
20.8 dB, 2 GHz to 12.4 GHz
≤
1 mΩ
≤
0.25 mΩ
1 W at 25°C
derated linearity to 0 Watts at 125°C
Electrical data
Impedance
Frequency
Return loss
Center contact resistance
Outer contact resistance
Power handling
Mechanical data
Mating cycles
Center contact captivation
Coupling test torque
Recommended torque
min. 500
≥
28 N
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
-55°C to +155°C
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
40.0 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Kerstin Herzog
Date
26/07/05
Approved
Frank Weiß
Date
05/12/05
Rev.
b00
Engineering change number
05-0412
Name
Kerstin Herzog
Date
05/12/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
