ROHS COMPLIANT

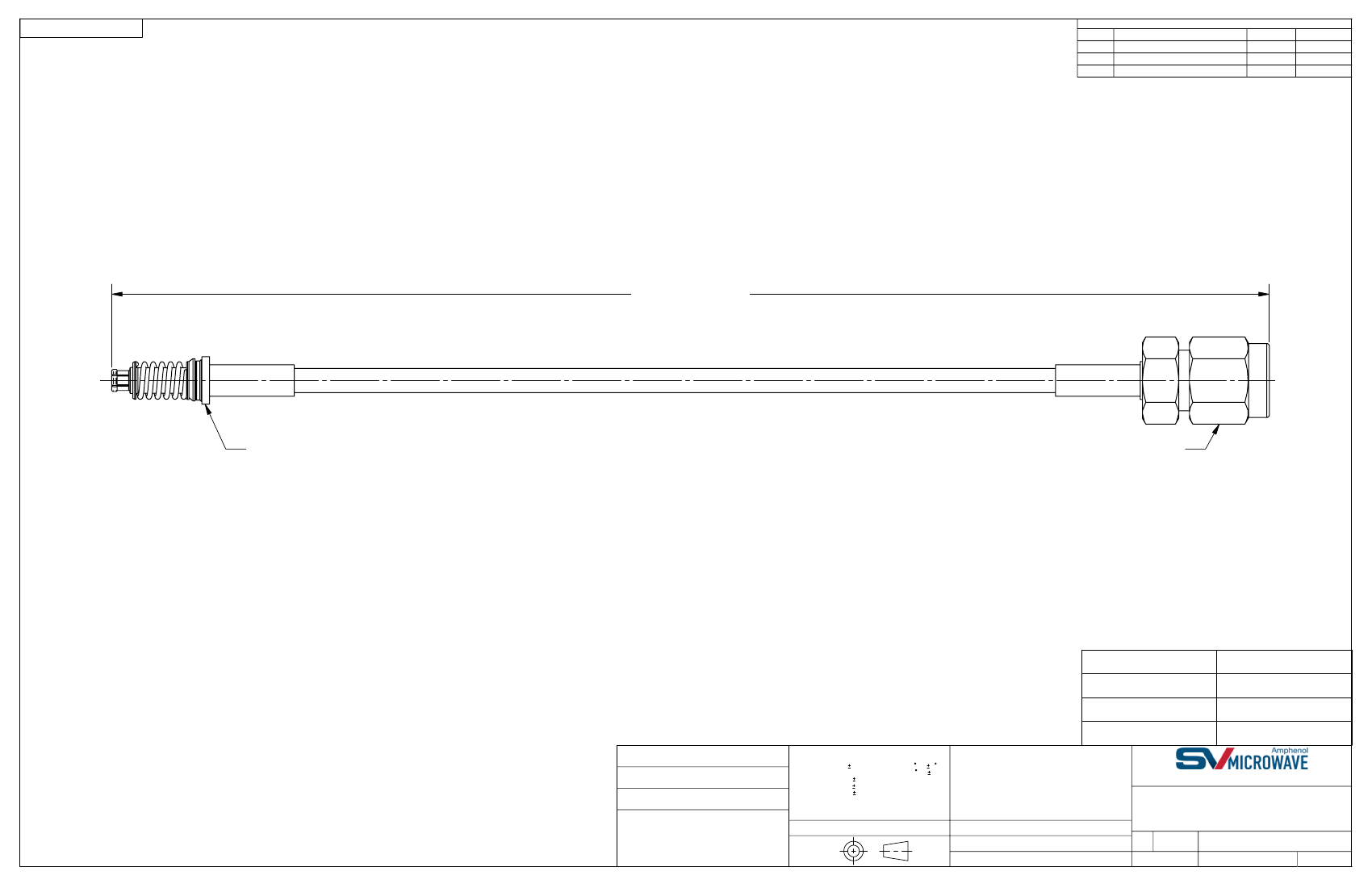

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 46496
06/17
GPF
OAL (SEE TABLE)
3221-40022
SF1511-60071
MATERIAL:
CONNECTORS:
CABLE:
SHRINK TUBING:
SMP STRAIGHT FEMALE (3221-40022)
2.92mm STRAIGHT MALE (SF1511-60071)
T-FLEX 405 (200-70-139)
M23053/5
MATERIAL:
FINISH:
SV P/N
7032-7162
7032-7163
7032-7164
L(OAL)
(6.000")
(12.000")
(24.000")
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
50 OHMS
DC TO 40.0 GHz
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
VB 06/05/17
GPF 06/05/17
GPF 06/05/17
SMP FEMALE TO 2.92mm MALE
FOR .085 CABLE ASSEMBLY
95077
SIZE CAGE CODE DWG. NO.
B
7032-7162-7163-7164
SHEET 1 OF 1
SCALE: 1:1
