DCM
™
DC-DC Converter
DCM3623x50M04A2yzz
S
®
C
US
C
NRTL
US
Isolated, Regulated DC Converter
Features & Benefits
•
Isolated, regulated DC-DC converter
•
Up to 120 W, 36.40 A continuous
•
89.2% peak efficiency
•
327 W/in
3
Power density
•
Wide input range 16 – 50 Vdc
•
Safety Extra Low Voltage (SELV) 3.3 V Nominal Output
•
2250 Vdc isolation
•
ZVS high frequency switching
Product Ratings
V
IN
= 16 V to 50 V
V
OUT
= 3.3 V
(3.0 V to 3.6 V Trim)
P
OUT
= 120 W
I
OUT
= 36.40 A
Product Description
The DCM Isolated, Regulated DC Converter is a DC-DC
converter, operating from an unregulated, wide range input to
generate an isolated 3.3 Vdc output. With its high frequency
zero voltage switching (ZVS) topology, the DCM converter
consistently delivers high efficiency across the input line range.
Modular DCM converters and downstream DC-DC products
support efficient power distribution, providing superior power
system performance and connectivity from a variety of
unregulated power sources to the point-of-load.
Leveraging the thermal and density benefits of Vicor’s ChiP
packaging technology, the DCM module offers flexible thermal
management options with very low top and bottom side
thermal impedances. Thermally-adept ChiP based power
components enable customers to achieve cost effective power
system solutions with previously unattainable system size,
weight and efficiency attributes, quickly and predictably.
n
Enables low-profile, high-density filtering
n
Up to 8 units – 960 W
n
No power derating needed
n
Sharing strategy permits dissimilar line voltages
•
Optimized for array operation
across an array
•
Fully operational current limit
•
OV, OC, UV, short circuit and thermal protection
•
3623 through-hole ChiP package
n
1.524” x 0.898” x 0.284”
(38.72 mm x 22.8 mm x 7.21 mm)
Typical Applications
•
•
•
•
Industrial
Process Control
Heavy Equipment
Defense / Aerospace
Part Ordering Information
Product
Function
DCM
DCM =
DC-DC
Converter
36
Length
in mm
x 10
Package
Size
23
Width
in mm
x 10
Package
Type
x
T=
Through hole
ChiPs
Max
Input
Voltage
50
Range
Ratio
M
Max
Output
Voltage
04
Max
Output
Power
A2
Temperature
Grade
y
T = -40°C – 125°C
M = -55°C – 125°C
Option
zz
00 = Analog Control
Interface Version
Internal Reference
DCM™ DC-DC Converter
Page 1 of 25
Rev 1.2
08/2017
DCM3623x50M04A2yzz
Pin Configuration
1
TOP VIEW
2
+IN
A
A’
+OUT
TR
B
B’
-OUT
EN
C
C’
+OUT
FT
D
-IN
E
D’
-OUT
3623 ChiP Package
Pin Descriptions
Pin
Number
A1
B1
C1
D1
E1
A’2, C’2
B’2, D’2
Signal Name
+IN
TR
EN
FT
-IN
+OUT
-OUT
Type
INPUT POWER
INPUT
INPUT
OUTPUT
INPUT POWER
RETURN
OUTPUT POWER
OUTPUT POWER
RETURN
Positive input power terminal
Function
Enables and disables trim functionality. Adjusts output voltage when trim active.
Enables and disables power supply
Fault monitoring
Negative input power terminal
Positive output power terminal
Negative output power terminal
DCM™ DC-DC Converter
Page 4 of 25
Rev 1.2
08/2017
DCM3623x50M04A2yzz
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent damage to the device.
Electrical specifications do not apply when operating beyond rated operating conditions.
Parameter
Input Voltage (+IN to –IN)
Input Voltage Slew Rate
TR to - IN
EN to -IN
FT to -IN
5
Output Voltage (+Out to –Out)
Dielectric withstand (input to output)
Internal Operating Temperature
M Grade
T Grade
Storage Temperature
M Grade
Average Output Current
-65
125
55.0
°C
A
-55
-40
125
125
°C
°C
Basic insulation
T Grade
-0.5
2250
-40
125
4.4
mA
V
Vdc
°C
Comments
Min
-0.5
-1
-0.3
-0.3
-0.3
Max
65.0
1
3.5
3.5
3.5
Unit
V
V/µs
V
V
V
Figure 1
—

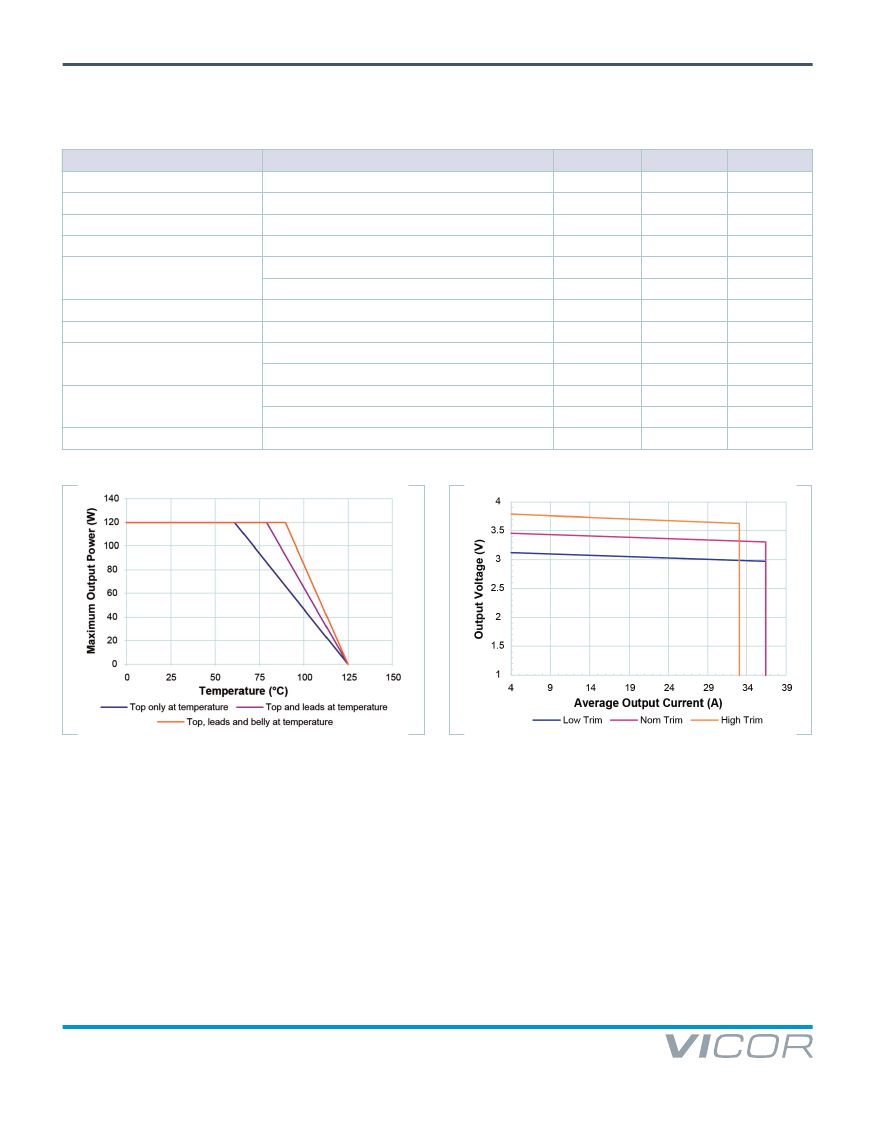

Thermal Specified Operating Area: Max Output Power
Figure 2
—
Electrical Specified Operating Area
vs. Case Temp, Single unit at minimum full load efficiency
DCM™ DC-DC Converter
Page 5 of 25
Rev 1.2
08/2017
