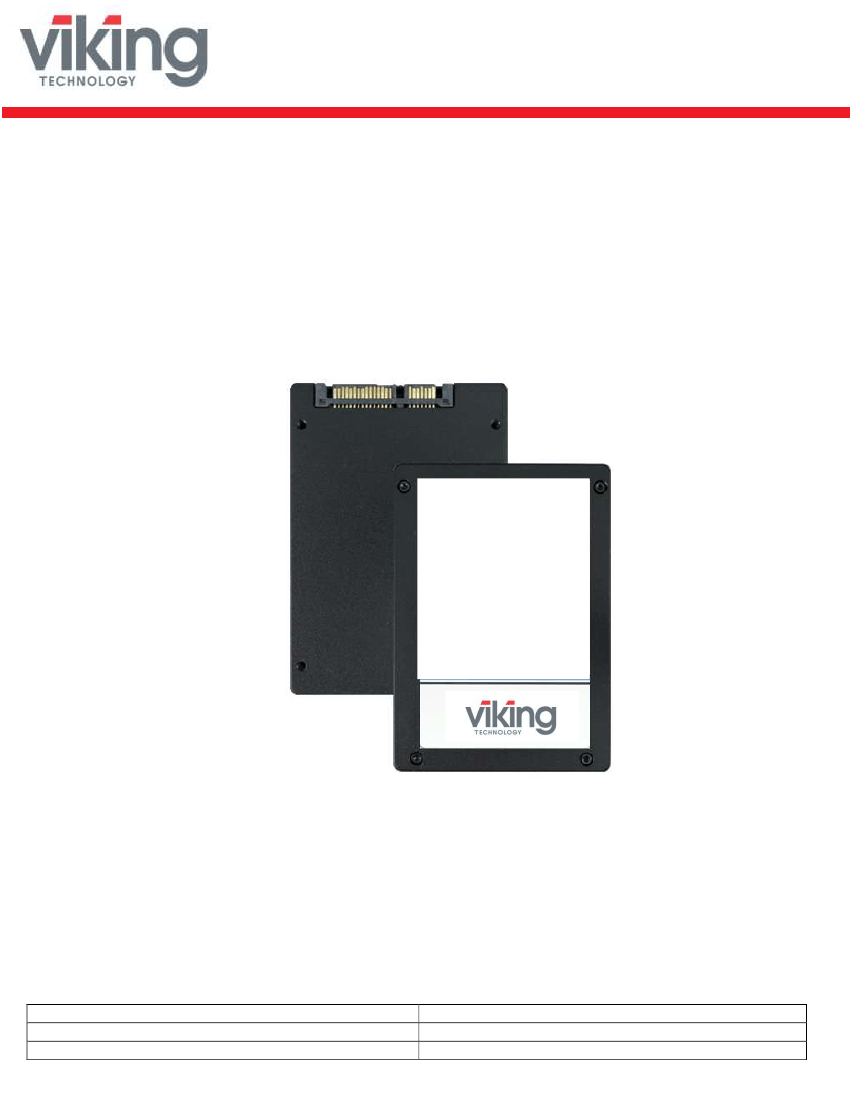

SATA 6Gb/s
2.5” SSD
Manual
The SATA SSD is a non-volatile, solid-state storage device. With its Serial ATA
interface and industry-standard form factors, it is a drop in replacement for hard
disk drives. The SSD delivers extremely high levels of performance, reliability and
ruggedness for I/O intensive or environmentally challenging applications.
Manual
PSFS22xxxxLxxx_PM863A
Revision B
www.vikingtechnology.com
5/31/2017
Viking Technology
Page 1 of 28
Legal Information
Legal Information
Copyright© 2017 Sanmina Corporation. All rights reserved. The information in
this document is proprietary and confidential to Sanmina Corporation. No part of
this document may be reproduced in any form or by any means or used to make
any derivative work (such as translation, transformation, or adaptation) without
written permission from Sanmina. Sanmina reserves the right to revise this
documentation and to make changes in content from time to time without
obligation on the part of Sanmina to provide notification of such revision or
change.
Sanmina provides this documentation without warranty, term or condition of any
kind, either expressed or implied, including, but not limited to, expressed and
implied warranties of merchantability, fitness for a particular purpose, and non-
infringement. While the information contained herein is believed to be accurate,
such information is preliminary, and should not be relied upon for accuracy or
completeness, and no representations or warranties of accuracy or
completeness are made. In no event will Sanmina be liable for damages arising
directly or indirectly from any use of or reliance upon the information contained in
this document. Sanmina may make improvements or changes in the product(s)
and/or the program(s) described in this documentation at any time.
Sanmina, Viking Technology, Viking Modular Solutions, and logo are trademarks
of Sanmina Corporation. Other company, product or service names mentioned
herein may be trademarks or service marks of their respective owners.
Manual
PSFS22xxxxLxxx_PM863A
Revision B
www.vikingtechnology.com
5/31/2017
Viking Technology
Page 3 of 28
Ordering Information: 2.5” SSD Solid-State Drive
Part Numbers
VSFS22480GLCHWSME
VSFS22960GLCFWSME
VSFS22960GLIFWSME
VSFS22960GLIZMSC
VSFS22960GLIZVSD
SATA
Interface
SATA 6GB
SATA 6GB
SATA 6GB
SATA 6GB
SATA 6GB
Application
Enterprise
Enterprise
Enterprise
Enterprise
Enterprise
Useable
Capacity
(GB)
1
480 GB
960 GB
960 GB
960 GB
960 GB
Temperature
Range
(0 to +70'c)
(0 to +70'c)
(-40 to +85'c)
(-40 to +85'c)
(-40 to +85'c)
NAND
Samsung TLC VNAND (3D)
Samsung TLC VNAND (3D)
Samsung TLC VNAND (3D)
Samsung MLC
Samsung MLC VNAND (3D)
VSFS22960GLIZVSCE
SATA 6GB
Enterprise
960 GB
(-40 to +85'c)
Samsung MLC VNAND (3D)
VSFS221T92LCFWSME
SATA 6GB
Enterprise
1920 GB
(0 to +70'c)
Samsung TLC VNAND (3D)
Usable capacity based on specification LBA1-03a and level of over-provisioning applied to wear leveling, bad sectors,
index tables etc.
SSD’s ship unformatted from the factory unless otherwise requested.
1 GB = 1,000,000,000 Byte
One Sector = 512 Byte.
“y’ specifies flash capacity code
xx is a wild card to indicate customer specific BOM and/or manufacturing location
SSD drive part numbers with an E suffix (VSxxxxxxxxxE) are self-encrypting drives (SED)
Enterprise SSD
– An Enterprise SSD contains hardware and firmware that detect and
manage power failures. This allows the drive to flush the controller cache and harden data to
NAND flash. No data is lost or corrupted.
Manual
PSFS22xxxxLxxx_PM863A
Revision B
www.vikingtechnology.com
5/31/2017
Viking Technology
Page 4 of 28
Table of Contents
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
GENERAL DESCRIPTION
FEATURES
DRIVE CONFIGURATION
PERFORMANCE SPECIFICATIONS
RELIABILITY SPECIFICATIONS
ENVIRONMENTAL SPECIFICATIONS
POWER REQUIREMENTS
PHYSICAL DIMENSION
2
8
8
8
8
8
9
9
9
2
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
MECHANICAL SPECIFICATION
PRODUCT SPECIFICATIONS
System Interface and Configuration
System Performance
Drive Capacity
Operating Voltage
System Power Consumption
System Reliability
Environmental Specifications
IOPS Consistency
Latency
Quality of Service (QoS)
10
11
11
11
12
12
12
13
13
14
14
15
4
4.1
ELECTRICAL INTERFACE SPECIFICATION
Serial ATA Interface Connector
16
16
Manual
PSFS22xxxxLxxx_PM863A
Revision B
www.vikingtechnology.com
5/31/2017
Viking Technology
Page 5 of 28
