1mm Pitch Wire-to-Board Connectors supporting LVDS signal
FX15 Series
Space saving, Equal length transmission lines
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Termination side: 0.5mm pitch, 1-row construction
Mating side: 1 mm pitch, staggered 2-row construction
Contacts consolidated into 1 row for equal length transmission lines
Fig.1
■

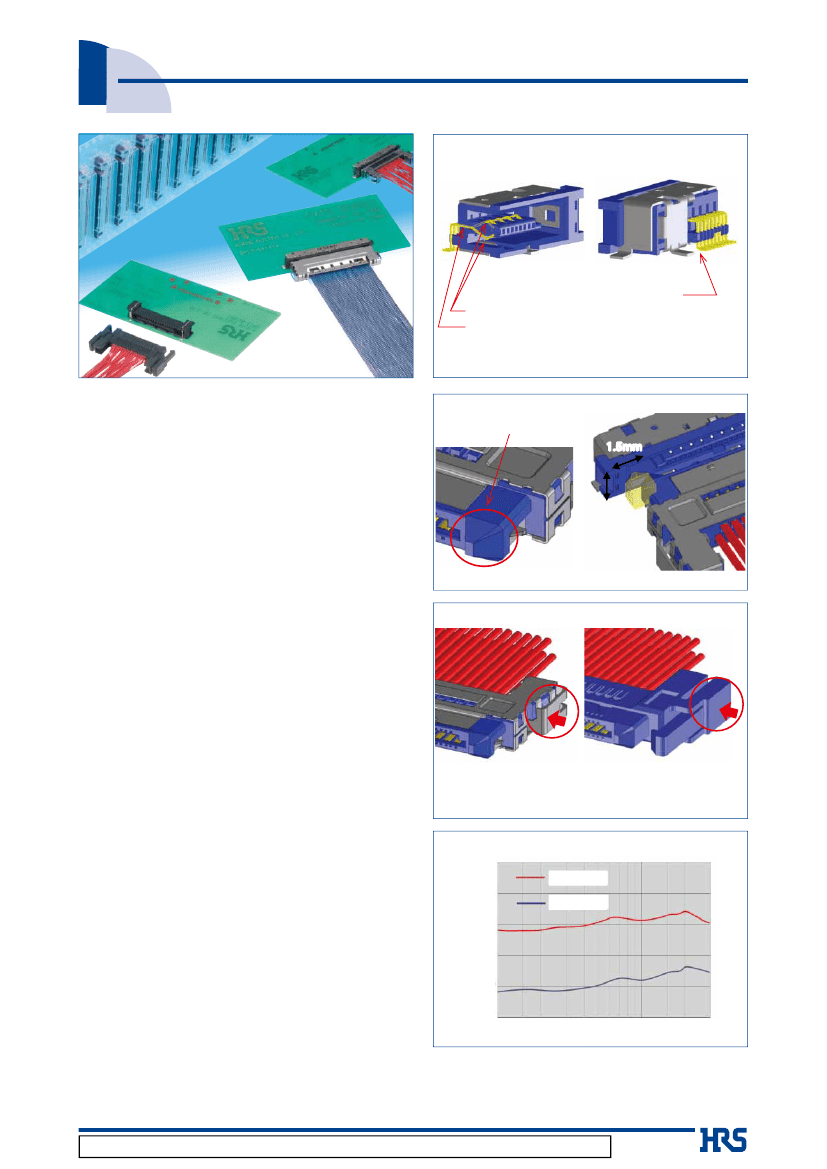

Features
1. Space-saving
Reduction in space is achieved by designing the
contacts in 2-row staggered 1mm pitch on the
mating side and on a single row 0.5mm pitch on
the termination side (Fig.1).
Self-alignment of ±1.5mm
Large guide post
1.5mm
1.5mm
2. Equal length transmission lines
Contact configuration provides equal length
transmission lines, which prevents LVDS signal
loss within the connector.
Fig.2
3. Variations
Availability of shielded and non-shielded types
allows for design flexibility and cost reduction.
Side latch -locks
4. Self alignment and self-guiding
Built-in guide posts allow secure self-alignment
within ±1.5mm (Fig.2).
5. Secure and complete mating / unmating
Side latch locking provides complete and secure
mating, as well as easy unmating (Fig.3).
With metal shields
(FX15 and FX15S Series)
Without metal shields
(FX15M Series)
Fig.3
6. Enhanced shielding performance with
FX15S
Enlarged metal shields prevent intrusion and
emission of electromagnetic interference, which
enhances the integrity of the LVDS signal (Fig.4).
High Shielding Performance
0
Without metal
Emitting Noise Level (dBm)
-10
-20
With metal
7. RoHS compliant
All materials and substances used to produce this
product comply with RoHS standards.
-30
-40
-50
0.1 0.2
0.3
0.5
1
1.5
2
3
Frequency (GHz)
Fig.4
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2015.10e
1
FX15 Series●1mm Pitch Wire-to-Board Connectors supporting LVDS signal
■Product
Specifications
Ratings
Item
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Insertion-Extraction force
5. Mating cycles
6. Vibration resistance
7. Shock resistance
Current rating
Voltage rating
0.5A
100V AC
Operating temperature range
Storage temperature range
Conditions
1mA
100V DC
300V AC/one minute
With corresponding connector
50 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75mm, 2 hours, 3 axis
Acceleration of 490m/s
2
, 11ms durations, sine half-wave waveform, 3 cycles, 3axis.
-55ç to +80ç (Note 1)
-10ç to +60ç (Note 2)
Specification
60mø max. (Note 3)
500Mø min.
No flashover or insulation breakdown.
2N min., 30N max.
Contact resistance : 80mø max.(Note 3)
No electrical discontinuity of 1µs or more.
No electrical discontinuity of 1µs or more.
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
8. Humidity resistance
9. Temperature cycle
10. Salt spray
Contact resistance : 80mø max.
96 hours at 40ç, RH 90% to 95%
No damage, cracks, or parts dislocation.(Note 3)
Contact resistance : 80mø max. (Note 3)
Insulation resistance : 500Mø min.
Contact resistance : 80mø max. (Note 3)
No corrosions
Temperature : -55ç
→
+15ç to +35ç
→
+85ç
→
+15ç to +35ç
Time
: 30
→
5
→
30
→
5 (Minutes) 5 cycles
5% water solution for 48 hours.
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term “storage” refers to products stored for long period of time prior to mounting and use. Operating
temperature and humidity range includes non-conducting condition of installed connectors in storage, shipment or
during transportation.
Note 3 : Includes wire conductor resistance (12mm long).
●
Receptacle
Insulator
Contact
■Materials
/ Finish
Component
Material
Polyamide
Phosphor bronze
FX15S : Nickel silver
FX15SC : Stainless steel
Phosphor bronze
Finish
Color : Black
Contact area : Gold plated
Termination area : Tin plated
FX15S : ---------------
FX15SC : Tin plated
Selective gold flash plated
Remarks
UL94V-0
---------------
---------------
---------------
Metal shell (shielded version only)
Metal fittings (shielded version only)
●
Plug
Component
Insulator
Contact
Metal shell (shielded version only)
Metal latch locks (shielded version only)
Metal shell, metal latch locks
(on micro coax version only)
Material
Polyamide
Phosphor bronze
Nickel silver
Stainless steel
Stainless steel
Finish
Color : Black
Contact area : Gold plated
Termination area : Tin plated
---------------
---------------
Nickel plated
Remarks
UL94V-0
---------------
---------------
---------------
---------------
■Product
Number Structure
●
Receptacle
q
w
qSeries
Name
wConfiguration
Blank
15S
15SC
15M
eNumber
of contacts
rConnector
type
tContact
pitch
yHousing
configuration
uTermination
iApplicable
conductor
oPackaging
!0
Plating (contact area)
!1
Packaging
SH
SV
P
S
: FX15
: With shields (or crimp contact)
: With shields – enhanced shielding
: With shields – enhanced shielding
(PCB mounting pattern : VESA standard)
: Without shields
: Male contact
: Female contact
: 0.5 mm
: Right angle
: Straight
FX15 S - 31 S - 0.5 SH (
**
)
e
r
t
y
!1
●
Plug
FX15 S - 31 P - C
q
w
e
r
u
●
Crimp contact
FX15 - 3032 PCF B
q
i
o
!0
C
: Crimp
0.5SD : Micro-coaxial cable
GND : Separate ground plate
2830
3032
PCF
B
Blank
(30)
: 28 to 30 AWG
: 30 to 32 AWG
: Male contact / reel
: Gold plated
: Embossed Packaging (1,000 pcs/reel)
: Embossed Packaging (100 pcs/reel)
2
FX15 Series●1mm Pitch Wire-to-Board Connectors supporting LVDS signal
■FX15

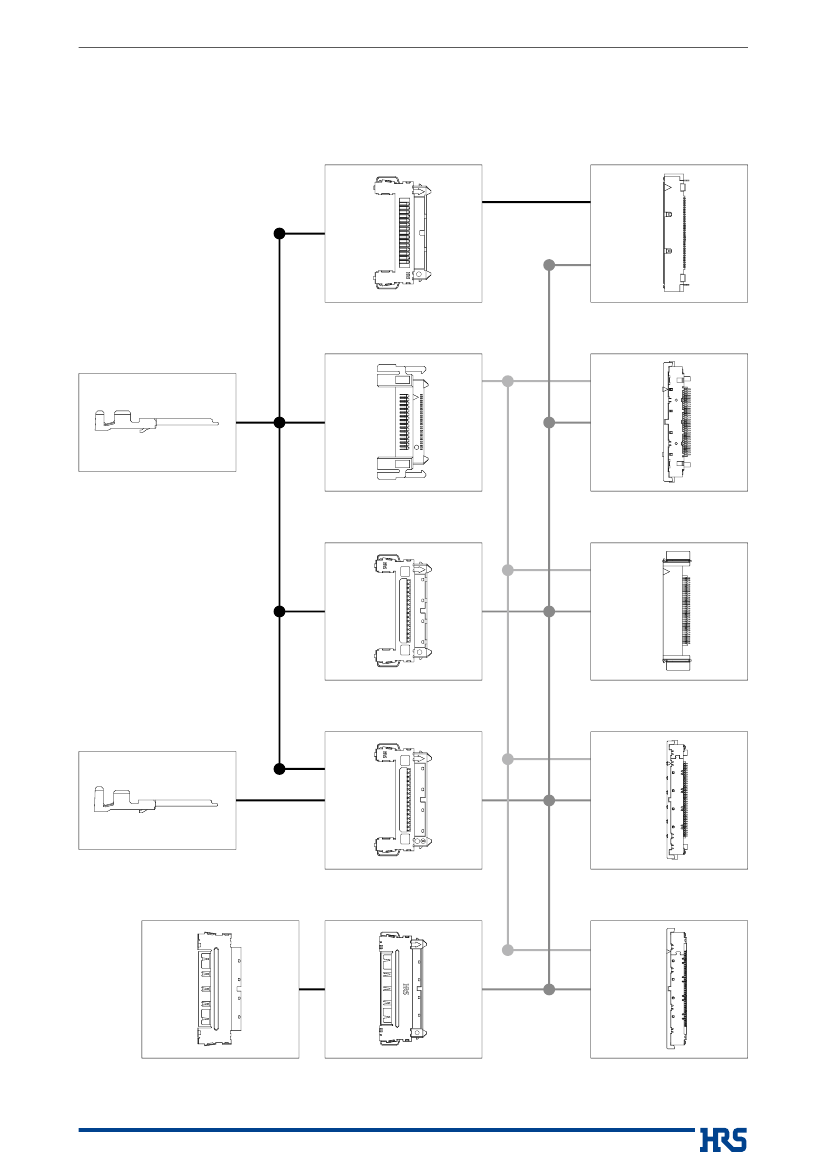

Series – Functional Diagram
Crimp contact
Plugs
With shields-standard
(FX15-31P-C)
Receptacles
Vertical, with shields
(FX15-31S-0.5SV)
B
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Crimp contact
(FX15-3032-PCFB)
Without shields
(FX15M-P-C)
Right angle, with shields
–enhanced shielding
(FX15S-S-0.5SH)
With shields – enhanced shielding
(FX15S-P-C)
Crimp contact
(FX15-2830-PCFB)
With shields – enhanced shielding
28 to 30 AWG
(FX15SW-31P-C)
B
Right angle, without shields
(FX15M-S-0.5SH)
B
With shields – enhanced shielding
PCB mouting pattern : VESA standard
(FX15SC-S-0.5SH)
28
Ground plate
(FX15S-P-GND)
Micro-coaxial cable
(FX15S-P-0.5SD)
With shields – enhanced shielding
PCB mouting pattern : VESA standard
(FX15SC-S-0.5SV)
A
3
FX15 Series●1mm Pitch Wire-to-Board Connectors supporting LVDS signal

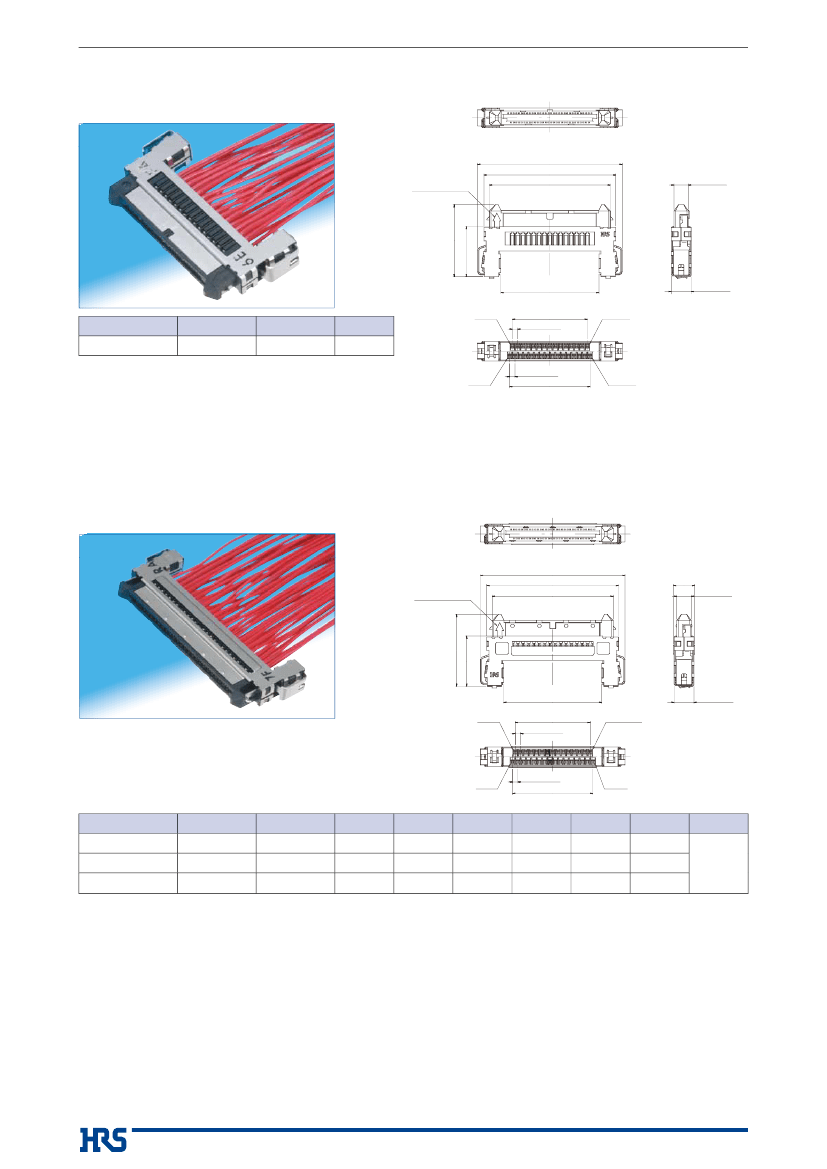

■Plugs
●
With shields (FX15-31P-C)
(27)
24.6±0.3
22.57±0.15
Polarizing mark
indicator
2.7±0.1
(13.45)
9.4±0.3
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
18.3±0.3
No.2
14±0.15
P=1±0.1
No.30
3.7±0.3
Part No.
FX15-31P-C
HRS No.
575-2101-2
No. of contacts
RoHS
Yes
No.1
31
Note 1 : Packaged in trays.
Note 2 : Dimensions in parenthesis ( ) are reference dimensions.
P=1±0.1
15±0.15
No.31
●
With shields, enhanced shielding (FX15S-**P-C)
(A)
B±0.3
C±0.15
Polarizing mark
indicator
4±0.3
2.7±0.1
(13.45)
9.4±0.3
D±0.3
No.2
E±0.15
P=1±0.1
No.n-1
3.7±0.3
No.1
P=1±0.1
F±0.15
No.n
Part No.
FX15S-31P-C
FX15S-41P-C
FX15S-51P-C
HRS No.
575-2106-6
575-2107-9
575-2103-8
No. of contacts
A
27
32
37
B
24.6
29.6
34.6
C
22.6
27.6
32.6
D
18.3
23.3
28.3
E
14
19
24
F
15
20
25
RoHS
Yes
31
41
51
Note 1 : Packaged in trays.
Note 2 : Dimensions in parenthesis ( ) are reference dimensions.
4

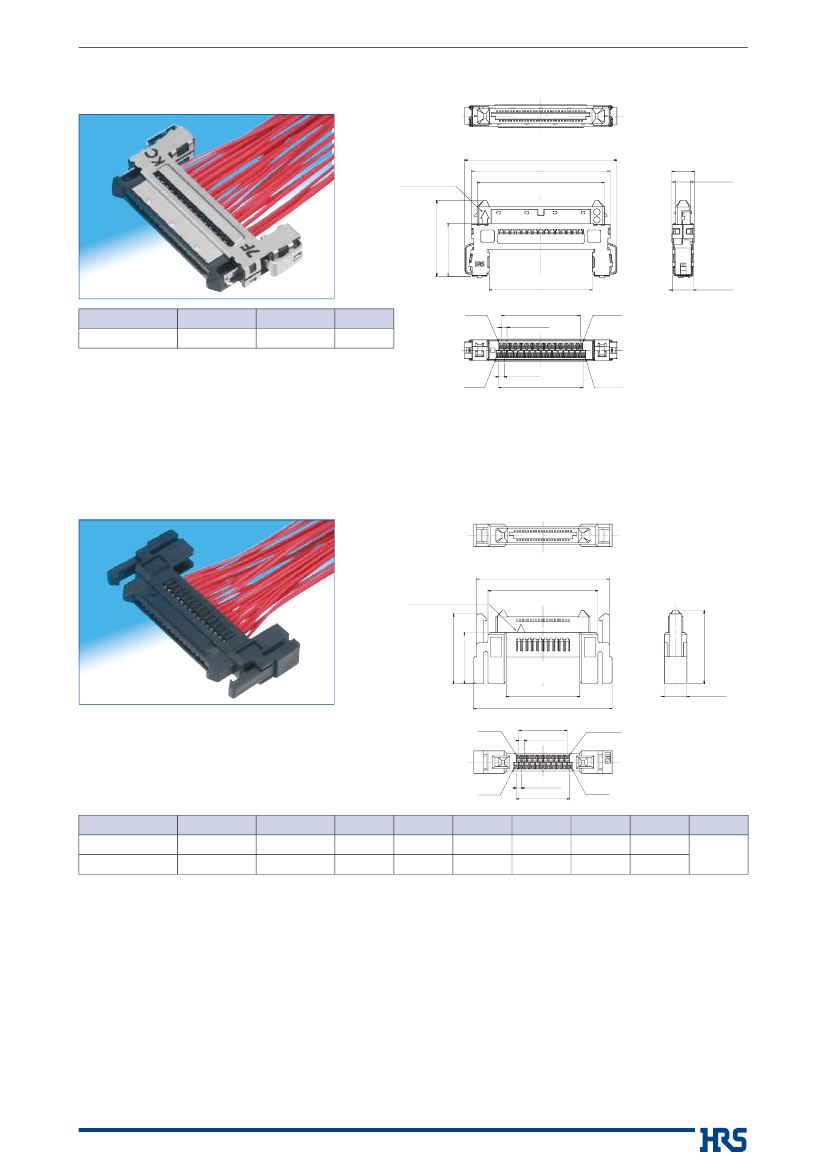

FX15 Series●1mm Pitch Wire-to-Board Connectors supporting LVDS signal
●
With shields – enhanced shielding
28 to 30 AWG (FX15SW-31P-C)
Polarizing mark
indicator
(27)
24.6±0.3
22.57±0.15
4±0.3
2.7±0.1
(13.45)
9.4±0.3
B
28
18.3±0.3
3.7±0.3
No.30
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
FX15SW-31P-C
HRS No.
575-2113-1
No. of contacts
RoHS
Yes
No.2
14±0.15
P=1±0.1
A
31
Note 1 : Packaged in trays.
Note 2 : Dimensions in parenthesis ( ) are reference dimensions.
No.1
P=1±0.1
15±0.15
No.31
●
Without shields (FX15M-**P-C)
Polarizing mark
indicator
(A)
B±0.3
(13)
9.55±0.3
C±0.3
(D)
No.2
E±0.15
P=1±0.1
No.n-1
4.2±0.3
No.1
P=1±0.1
F±0.15
No.n
Part No.
FX15M-21P-C
FX15M-31P-C
HRS No.
575-2109-4
575-2108-1
No. of contacts
A
24.8
29.8
B
20.5
25.5
C
13.7
18.7
D
25.8
30.8
E
9
14
F
10
15
RoHS
Yes
21
31
Note 1 : Sold in 100 piece packages. Please order in full package quantities.
Note 2 : Dimensions in parenthesis ( ) are reference dimensions.
(13.6)
5
