Technical Data
10548
Effective August 2016
HCM1A0703
Automotive grade
High current power inductors
Applications
•
Body electronics
•
Central body control module
•
•
•
Vehicle access control system
Headlamps, tail lamps and interior lighting
Heating ventilation and air conditioning
controllers (HVAC)
Doors, window lift and seat control
•
•
Advanced driver assistance systems
•
77 GHz radar system
•
•
•
Adaptive cruise control (ACC)
Automatic parking control
Collision avoidance system/Car black
box system
Product features
•
•
•
•
•
•
•
AEC-Q200 Grade 1 qualified
High current carrying capacity
Magnetically shielded, low EMI
Frequency range up to 1 MHz
Inductance range from 0.1 μH to 33 μH
Current range from 1.6 A to 36 A
7.4 mm x 7.0 mm footprint surface mount
package in a 3.0 mm height
Alloy powder core material
Moisture Sensitivity Level (MSL): 1
Halogen free, lead free, RoHS compliant
•
Infotainment and cluster electronics
•
Active noise cancellation (ANC)
•
•
•
•
Audio subsystem: head unit and trunk amp
Digital instrument cluster
In-vehicle infotainment (IVI) and navigation
Port power/USB HUB for front and rear
passengers
•
•
•
•
Chassis and safety electronics
•
Airbag control unit
•
Electronic stability control system (ESC)
•
Engine and Powertrain Systems
•
Electric pumps, motor control and auxiliaries
•
Powertrain control module (PCU)/Engine
Control unit (ECU)
Transmission Control Unit (TCU)
•
Environmental Data
•
Storage temperature range (Component):
-55 °C to +155 °C
Operating temperature range: -55 °C to +155 °C
(ambient plus self-temperature rise)
Solder reflow temperature:
J-STD-020 (latest revision) compliant
•
•
Pb
HF
FREE
HALOGEN
Technical Data
10548
Effective August 2016
HCM1A0703
Automotive grade high current power inductors
Product Specifications
OCL
1
(μH) ± 20%
FLL
2
(μH)
minimum
I
rms3
(A)
I
sat4
(A)
DCR (mΩ)
typical @ +20 °C
DCR (mΩ)
maximum @ +20 °C
Part Number
6
K-factor
5
HCM1A0703-R10-R
HCM1A0703-R15-R
HCM1A0703-R22-R
HCM1A0703-R33-R
HCM1A0703-R47-R
HCM1A0703-R56-R
HCM1A0703-R68-R
HCM1A0703-R82-R
HCM1A0703-1R0-R
HCM1A0703-1R2-R
HCM1A0703-1R5- R
HCM1A0703-2R2-R
HCM1A0703-3R3-R
HCM1A0703-4R7-R
HCM1A0703-6R8-R
HCM1A0703-8R2-R
HCM1A0703-100-R
HCM1A0703-150-R
HCM1A0703-220-R
HCM1A0703-330-R
0.10
0.15
0.22
0.33
0.47
0.56
0.68
0.82
1.0
1.2
1.5
2.2
3.3
4.7
6.8
8.2
10
15
22
33
0.06
0.09
0.13
0.21
0.30
0.35
0.43
0.52
0.64
0.76
1.0
1.4
2.1
3.0
4.3
5.2
6.4
9.6
14.1
19.8
22
18.5
17
14
12
10.3
10
8.5
7.9
7.8
6.6
5.7
4.9
4.1
3.5
3.1
3.0
2.2
2.0
1.6
28
36
24
19
17
14
15
14
13
11
11
10
9.0
8.8
6.4
5.6
4.4
4.0
3.4
2.3
1.2
1.5
2.3
3.5
3.7
4.7
5.0
6.7
9.0
9.3
14
18
28
37
54
64
71
118
135
220
1.4
1.8
2.7
4.0
4.2
5.2
5.5
8.0
10
10.2
15.5
20
30
40
60
68
77.6
127
149
242
2737
1358
1386
907
818
740
574
482
450
446
353
309
262
235
177
159
153
127
121
81
1. Open Circuit Inductance (OCL) Test Parameters: 100 kHz, 0.25 V
rms
, 0.0 Adc, +25 °C
2. Full Load Inductance (FLL) Test Parameters: 100 kHz, 0.25 V
rms
, I
sat
, +25 °C
3. I
rms
: DC current for an approximate temperature rise of 30 °C without core loss. Derating is necessary for AC currents.
PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the
temperature rise. It is recommended that the temperature of the part not exceed 155 °C under worst case operating
conditions verified in the end application.
4. I
sat
: Peak current for approximately 20% rolloff @ +25 °C

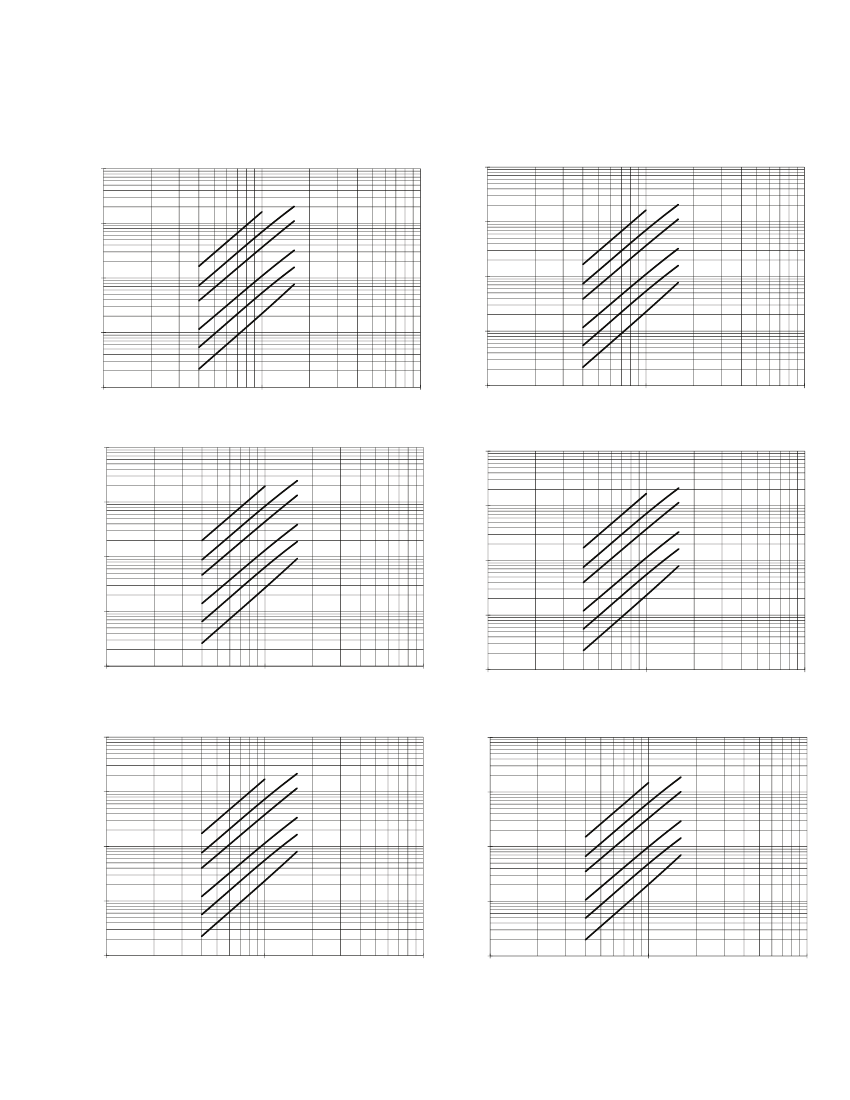

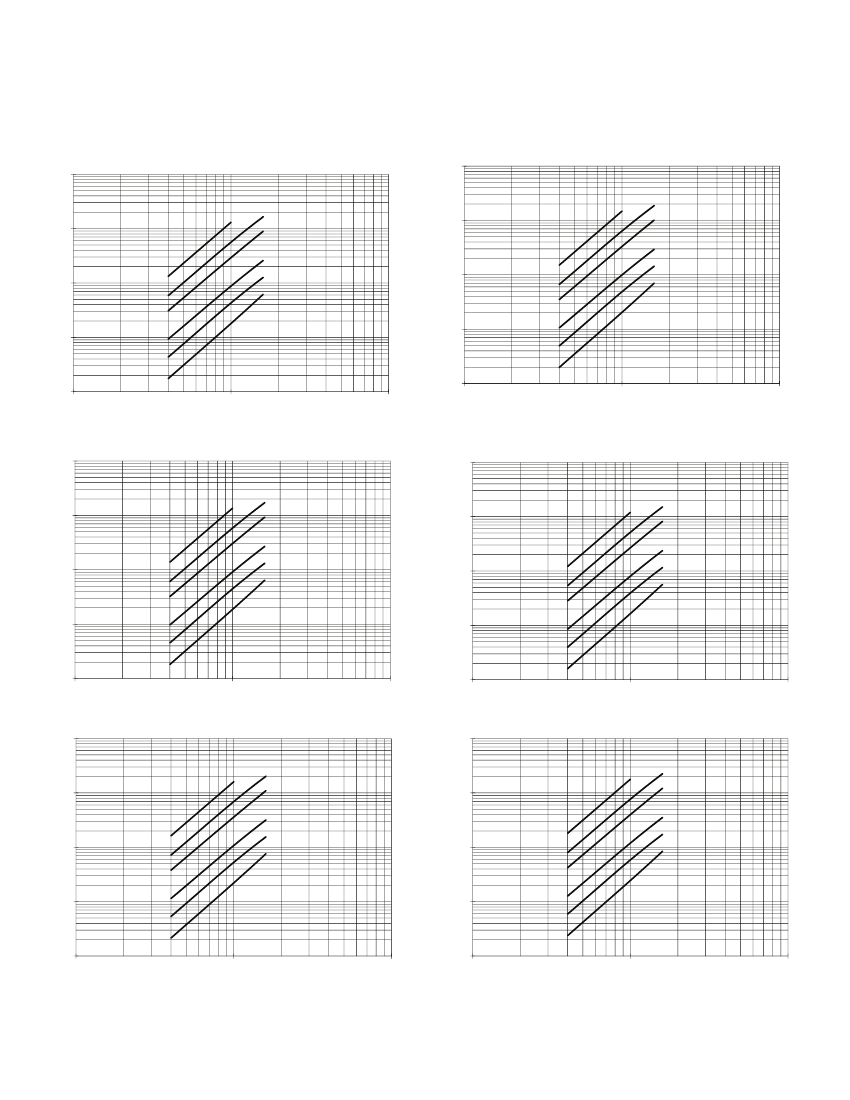

5. K-factor: Used to determine B
p-p
for core loss (see graph). Bp-p = K * L *
ΔI.
B
p-p
: (Gauss), K: (K-factor from table),
L: (Inductance in μH),
ΔI
(Peak to peak ripple current in Amps).
6. Part Number Definition: HCM1A0703-xxx-R
HCM1A0703 = Product code and size
xxx= inductance value in μH, R= decimal point,
If no R is present then last character equals number of zeros
-R suffix = RoHS compliant

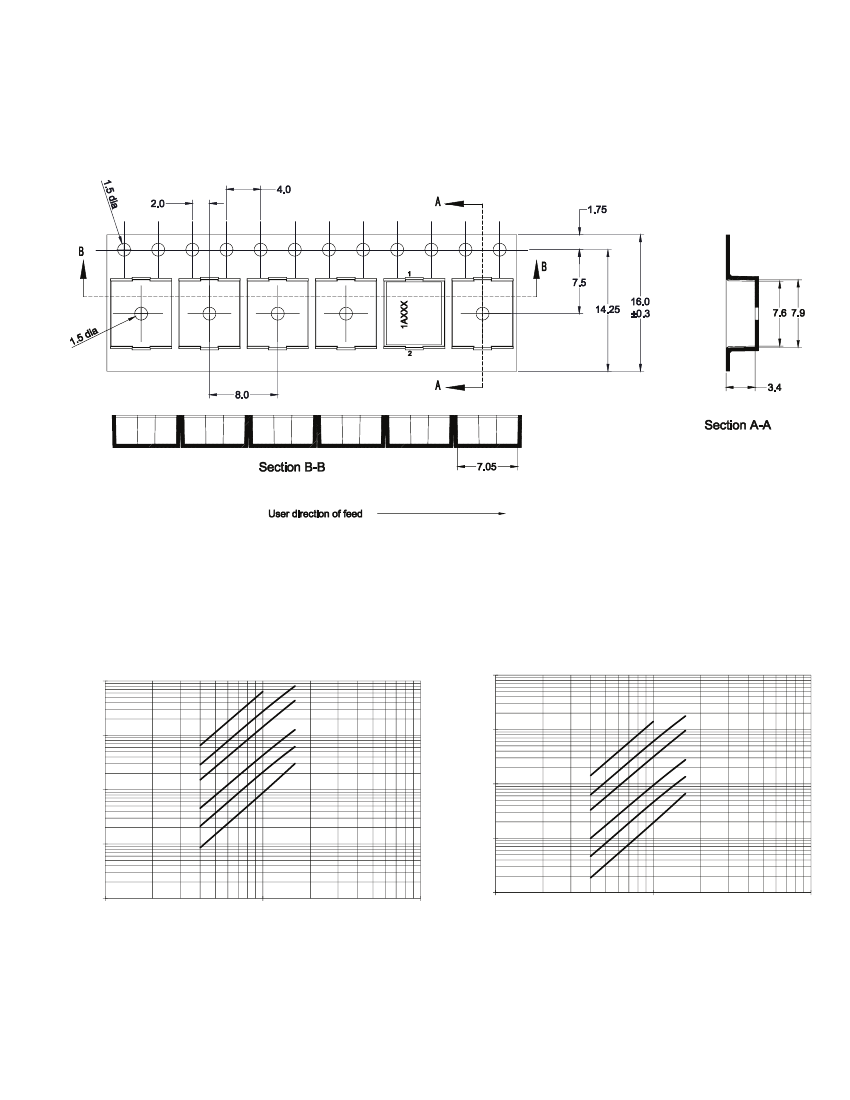

Dimensions (mm)
Part marking: 1AXXX=automotive grade, XXX=inductance value in uH, R=decimal point. If no R is present then last character equals number of zeros.
xxxx= Lot code
All soldering surfaces to be coplanar within 0.1 millimeters
Tolerances are ±0.3 millimeters unless stated otherwise
DCR measured from point “a” to point “b”
Color: Grey
Do not route traces or vias underneath the inductor
2
www.eaton.com/electronics
ctronics
xxxx
