MJS13: DescriptionSWITCH SLIDE SP3T 100MA 12V; CategoryMechanical and electronic products switch; File Size93KB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric Compare View All

MJS13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MJS13	-	-	View	Buy Now

MJS13 Overview

SWITCH SLIDE SP3T 100MA 12V

MJS13 Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.079 inch
Actuator material	THERMOPLASTIC
Actuator type	SLIDE
body width	4 mm
body height	4.5 mm
Body length or diameter	15.8 mm
Center contact plating	SILVER
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@12VDC
Contact resistance	0.02 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	500VRMS V
Electrical life	10000 Cycle(s)
End contact plating	SILVER
Shell material	THERMOPLASTIC
Insulation resistance	100000000 Ω
insulator material	PHENOLIC
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	3
Maximum operating force	2.21 N
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
PCB hole count	4
seal	MOLDED
Solderability	WAVE
surface mount	NO
Switch action	LATCHED
switch function	SP3T
Switch type	SLIDE SWITCH
Terminal surface	SILVER
Terminal length	0.118 inch
Termination type	SOLDER
Washability	PARTIAL

Preview

Download Datasheet

View All

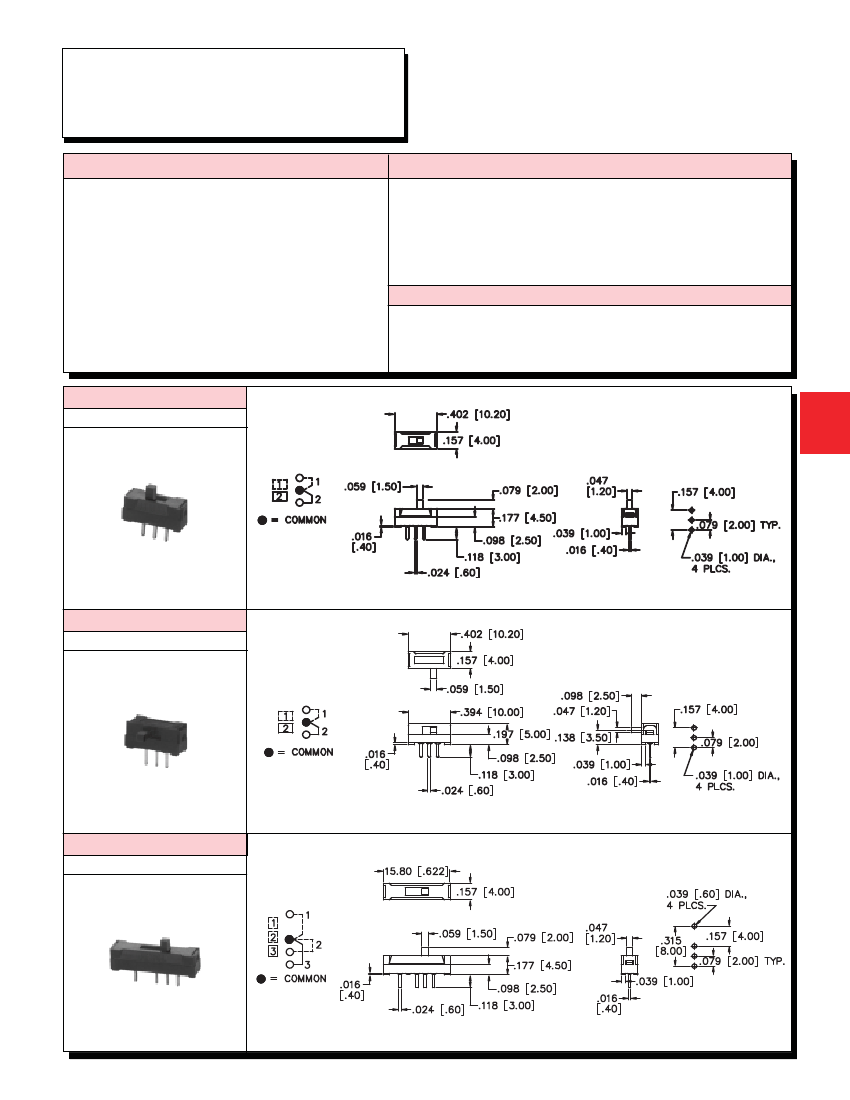

MJS Series

Microminiature Slide Switches

SPECIFICATIONS

Contact rating:

100 mA at 12 VDC

Initial contact resistance:

20 milliohms max.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

FEATURES

Molded-in terminals minimize flux or solder entry.

Molded-in high temperature phenolic base.

Low Profile.

Bifurcated wiping contact design.

Insulation resistance:

100 megohms min. at 500 VDC

Dielectric strength:

500 volts RMS at sea level

Electrical life:

10,000 cycles min.

Operating temperature range:

-10°C to +60°C

Actuation force:

225g (average)

Solder heat resistance:

260°C max. for 5 seconds

Washing not recommended

MATERIALS

Contacts & terminals:

Silver plated

Case & actuator:

Thermoplastic

Terminal seal:

Molded-in

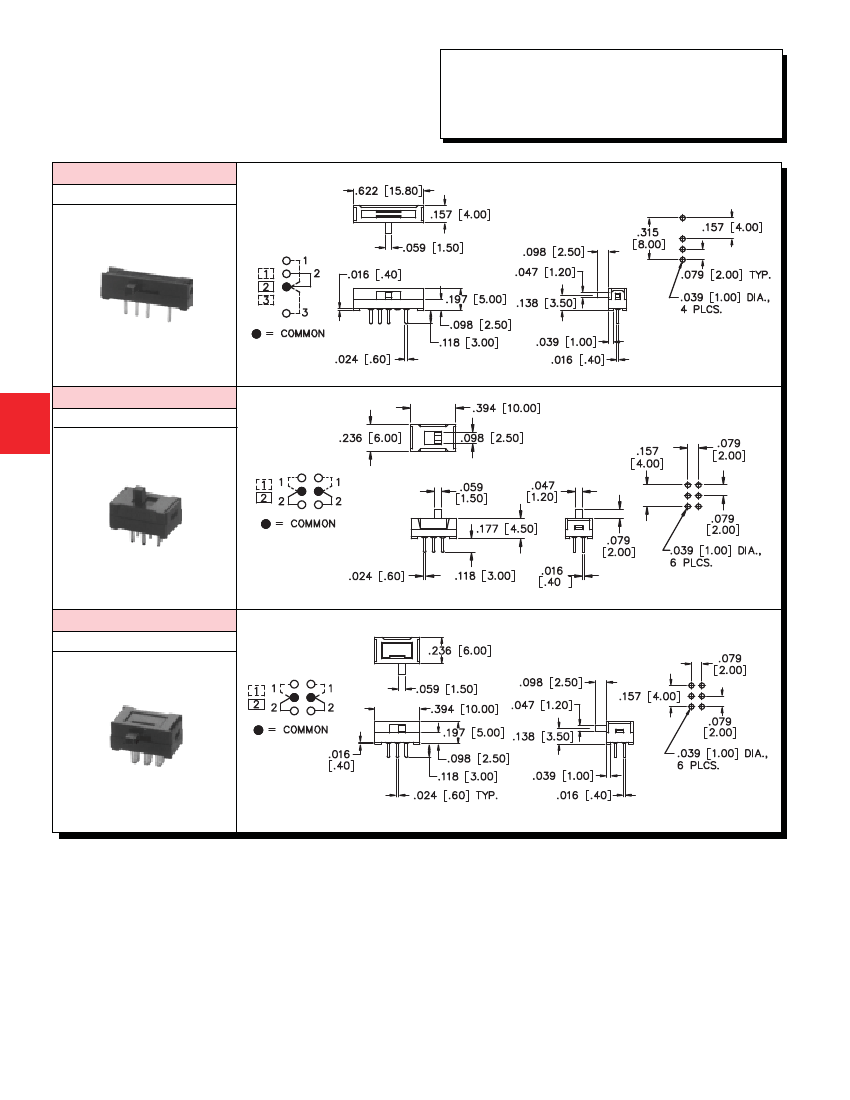

.079 (2.00) TRAVEL/THROW

MODEL NO.

MJS12

1P2T

VERTICAL ACTUATOR

MODEL NO.

MJS12R

SCHEMATIC

MECHANICAL OUTLINE

.079 (2.00) TRAVEL/THROW

P.C. BOARD LAYOUT

1P2T

RIGHT ANGLE ACTUATOR

MODEL NO.

MJS13

SCHEMATIC

MECHANICAL OUTLINE

.079 (2.00) TRAVEL/THROW

P.C. BOARD LAYOUT

1P3T

VERTICAL ACTUATOR

SCHEMATIC

MECHANICAL OUTLINE

P.C. BOARD LAYOUT

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
