IRFR3910CPBF

Description
MOSFET N-CH 100V 16A DPAK
Categorysemiconductor    Discrete semiconductor
File Size391KB,11 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

IRFR3910CPBF Overview

MOSFET N-CH 100V 16A DPAK

IRFR3910CPBF Parametric

Parameter NameAttribute value
FET typeN channel
technologyMOSFET (metal oxide)
Drain-source voltage (Vdss)100V
Current - Continuous Drain (Id) at 25°C16A(Tc)
Drive voltage (maximum Rds On, minimum Rds On)10V
Rds On (maximum value) when different Id, Vgs115 milliohms @ 10A, 10V
Vgs (th) (maximum value) when different Id4V @ 250µA
Gate charge (Qg) at different Vgs (maximum value)44nC @ 10V
Vgs (maximum value)±20V
Input capacitance (Ciss) at different Vds (maximum value)640pF @ 25V
FET function-
Power dissipation (maximum)79W(Tc)
Operating temperature-55°C ~ 175°C(TJ)
Installation typesurface mount
Supplier device packagingD-Pak
Package/casingTO-252-3, DPak (2 leads + tab), SC-63

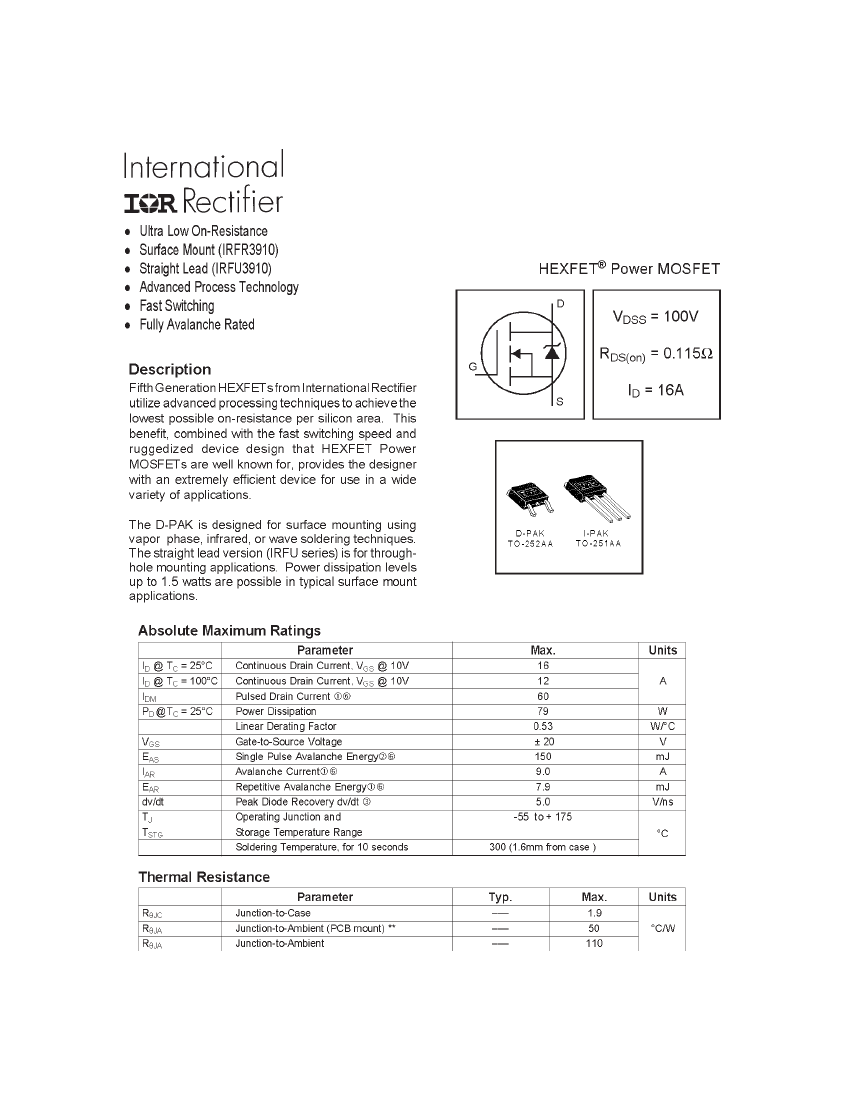

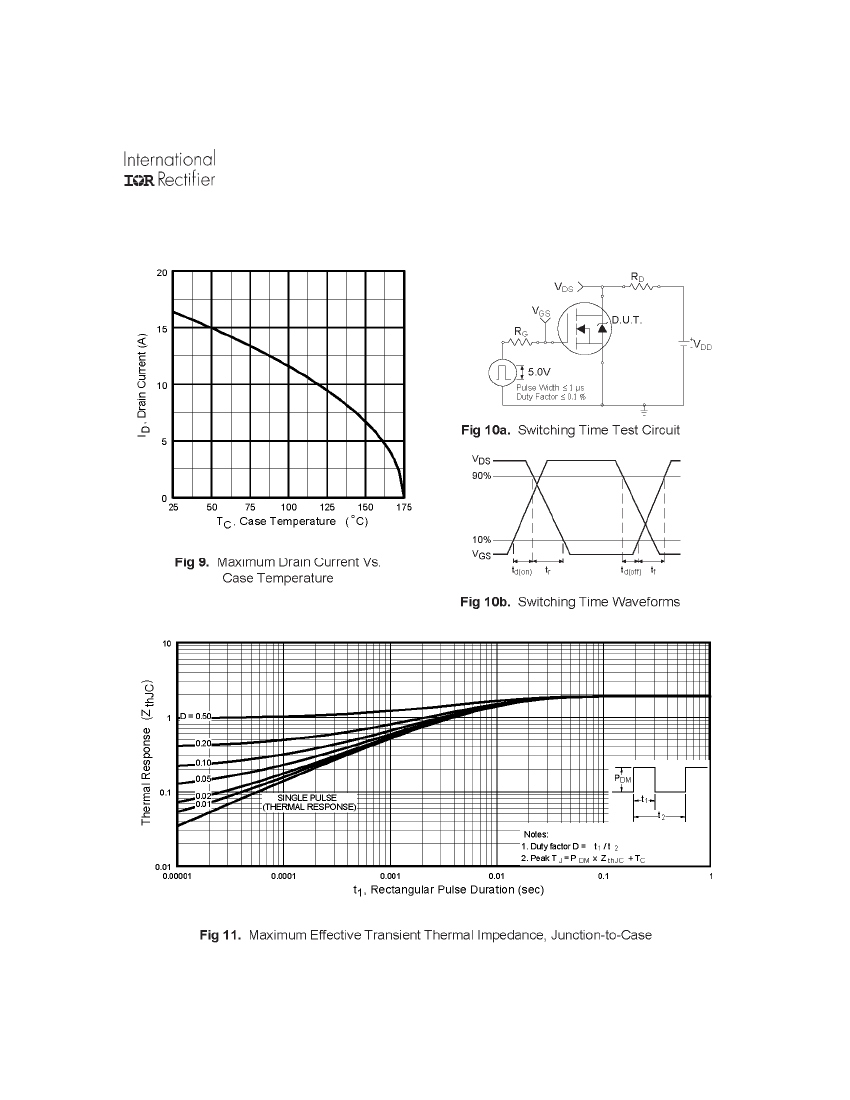

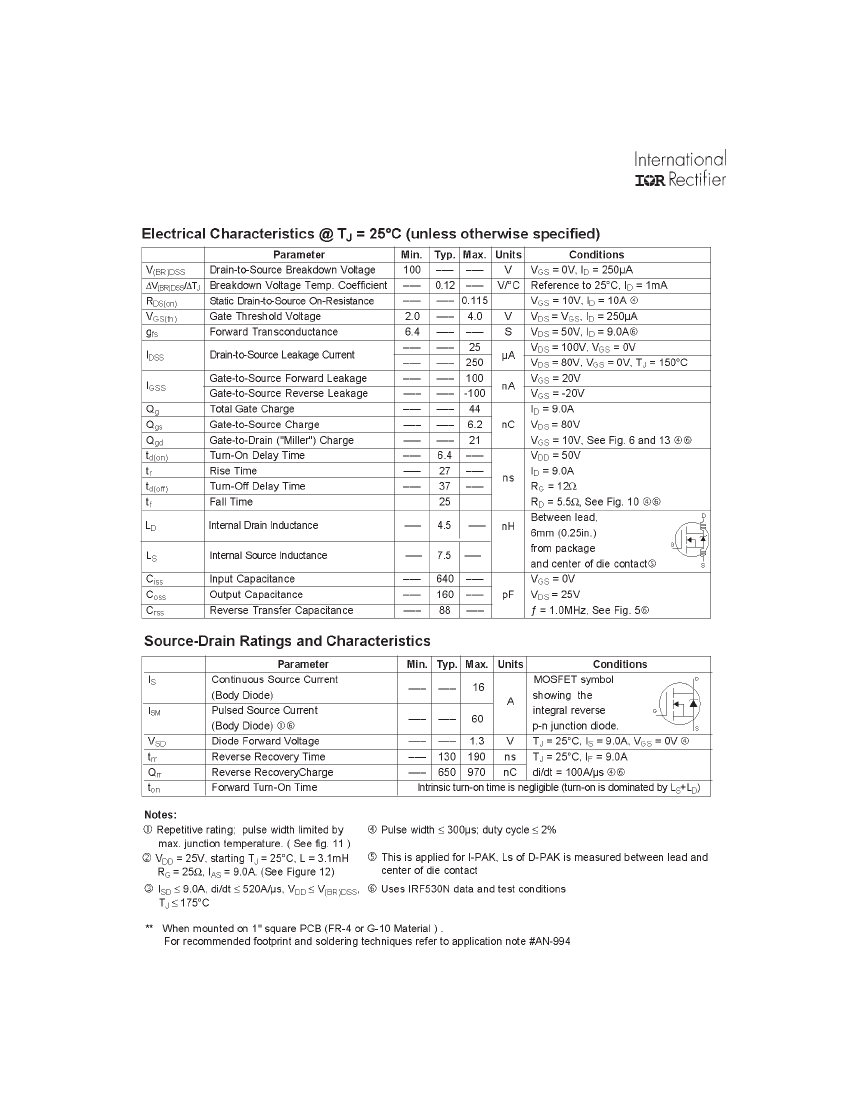

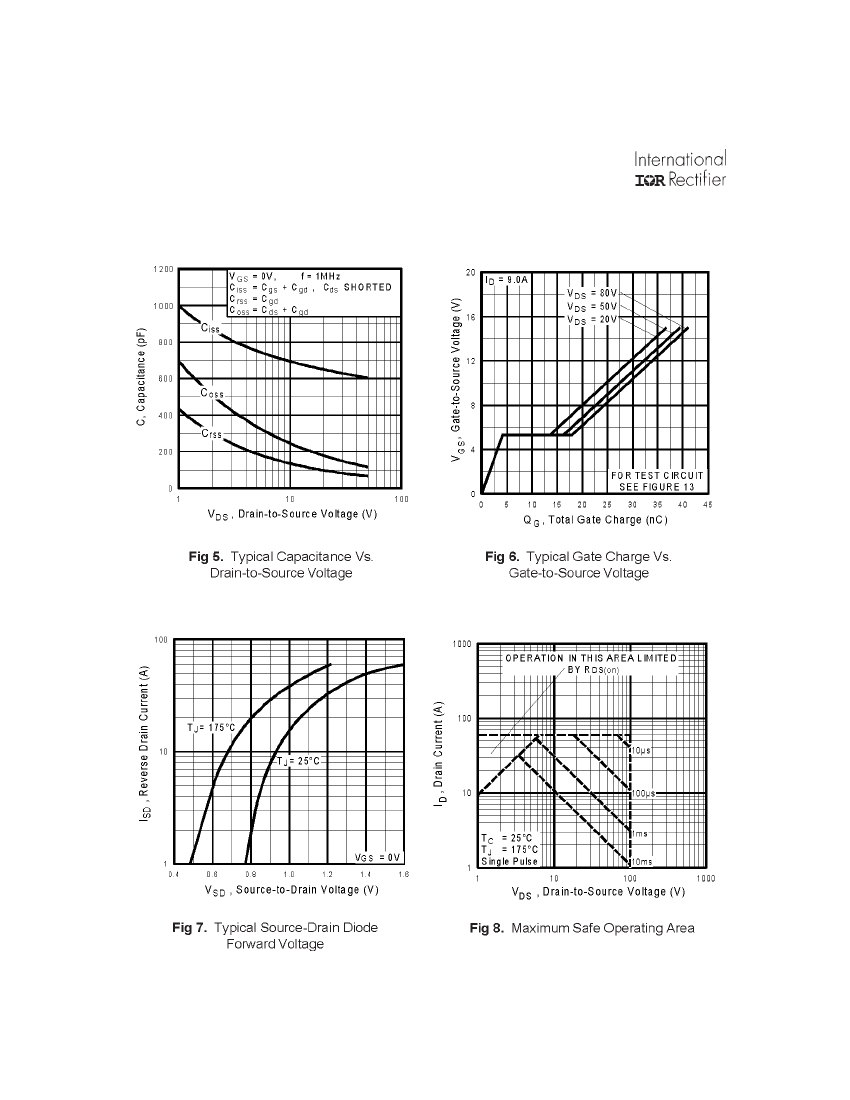

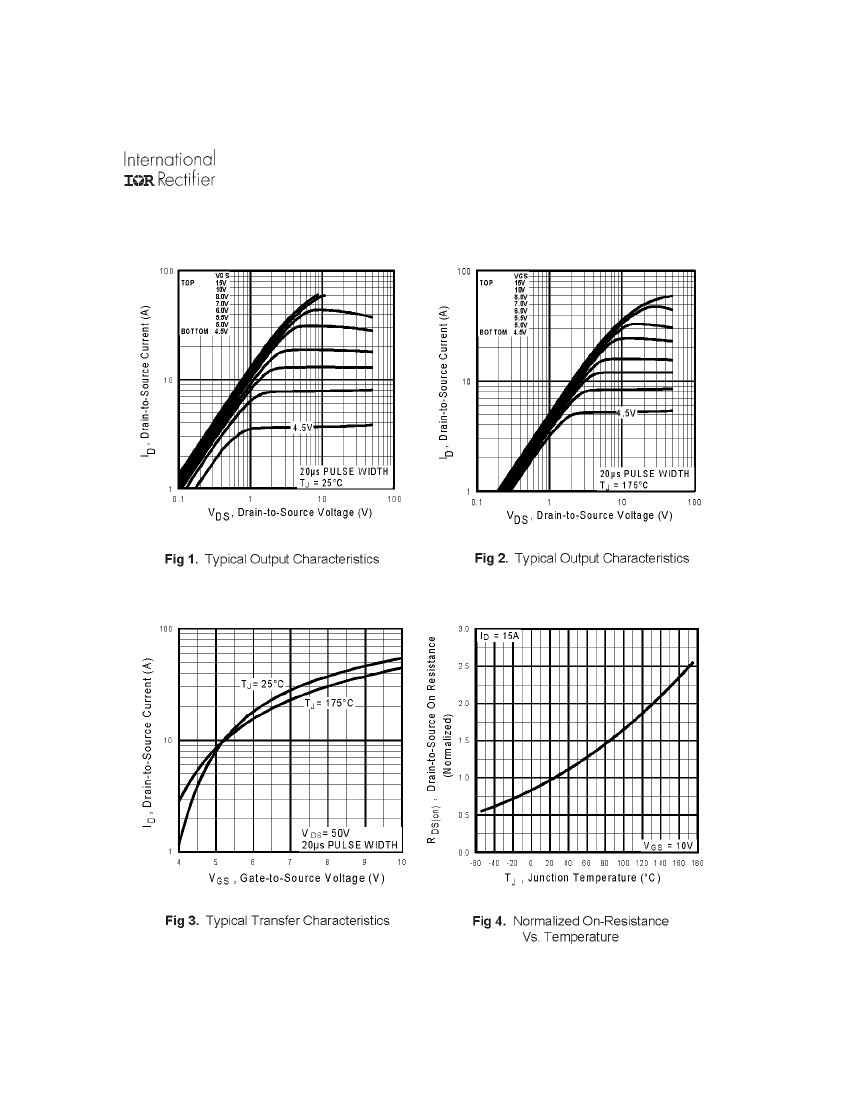

PD - 95079A
IRFR3910PbF
IRFU3910PbF
Lead-Free
www.irf.com
1
1/7/05

IRFR3910CPBF Related Products

IRFR3910CPBF IRFR3910TRRPBF IRFR3910TRPBF
Description MOSFET N-CH 100V 16A DPAK Power Field-Effect Transistor, 16A I(D), 100V, 0.115ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, LEAD FREE, PLASTIC, DPAK-3 Drain-source voltage (Vdss): 100V Continuous drain current (Id) (at 25°C): 16A Gate-source threshold voltage: 4V @ 250uA Drain-source on-resistance: 115mΩ @ 10A, 10V Maximum power dissipation (Ta= 25°C): 79W Type: N-channel N-channel 100V 16A
Is it Rohs certified? - conform to conform to
Maker - Infineon Infineon
package instruction - LEAD FREE, PLASTIC, DPAK-3 LEAD FREE, PLASTIC, DPAK-3
Reach Compliance Code - compliant not_compliant
ECCN code - EAR99 EAR99
Other features - AVALANCHE RATED AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas) - 150 mJ 150 mJ
Shell connection - DRAIN DRAIN
Configuration - SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage - 100 V 100 V
Maximum drain current (ID) - 16 A 16 A
Maximum drain-source on-resistance - 0.115 Ω 0.115 Ω
FET technology - METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code - TO-252AA TO-252AA
JESD-30 code - R-PSSO-G2 R-PSSO-G2
JESD-609 code - e3 e3
Humidity sensitivity level - 1 1
Number of components - 1 1
Number of terminals - 2 2
Operating mode - ENHANCEMENT MODE ENHANCEMENT MODE
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY
Package shape - RECTANGULAR RECTANGULAR
Package form - SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) - 260 260
Polarity/channel type - N-CHANNEL N-CHANNEL
Maximum pulsed drain current (IDM) - 60 A 60 A
Certification status - Not Qualified Not Qualified
surface mount - YES YES
Terminal surface - MATTE TIN OVER NICKEL Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal form - GULL WING GULL WING
Terminal location - SINGLE SINGLE
Maximum time at peak reflow temperature - 30 30
transistor applications - SWITCHING SWITCHING
Transistor component materials - SILICON SILICON
Base Number Matches - 1 1
