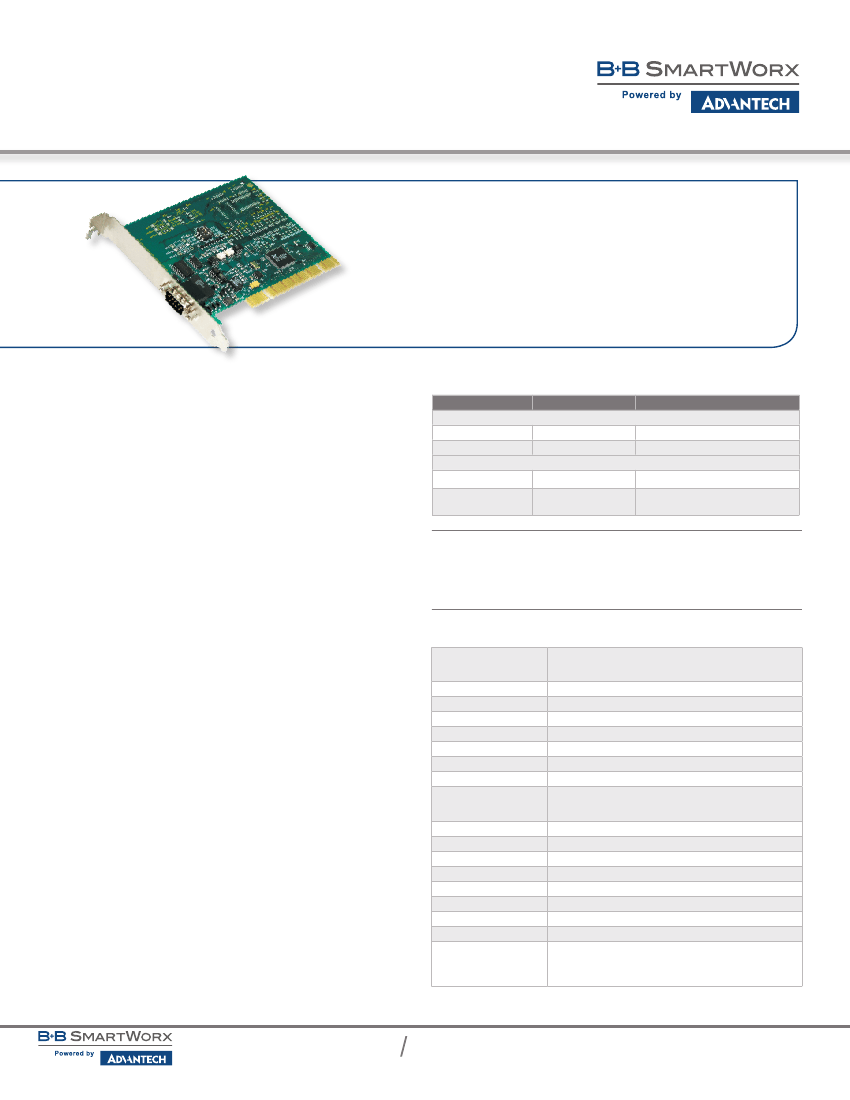

MIPort
™
Universal PCI Cards
One to Four Port RS-232/422/485 Cards
Models: 3PCIOUI1, 3PCIOU2, 3PCIU2, 3PCIU4
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
•
Add 1, 2, or 4 Serial Ports to Your PC
Optical Isolation (select models)
RS-232/422/485 Selectable on Each Port
5 and 3.3 V PCI Bus Compatible
PCI-X Compatible
Data Rates Up to 460.8 Kbps
MIPort Universal PCI Cards suit most any application. Outputs are
independently configurable for RS-232, RS-422, or RS-485. Optically
isolated card models offer 2000 VDC port-to-port isolation.
Compare B+B SmartWorx cards to others – B+B's Premium Isolation
Zone, along with optical couplers and our unique isolated DC-DC
converter design, protect your PC from voltage surges and ground loops.
DB9M connectors offer positive thumbscrew locking - more robust than
phone jack connectors. Four port model include fan-out cables. All
models support data rates up to 460.8 kbps. MIPort cards are plug-and-
play compatible and have adjustable FIFO trigger thresholds for input
and output. RS-485 operation supports both 2-wire and 4-wire (full and
half-duplex) and Automatic Send Data Control. All models include a
comprehensive technical manual and CD ROM with drivers.
Whether you're application is industrial monitoring and control, SCADA,
point-of-sale, medical or security, MIPort Universal PCI Cards are your
number one choice.
ORDERING INFORMATION
MODEL NUMBER DESCRIPTION
CONNECTORS
2kV Optical Isolation
3PCIOU1
1 x RS-232/422/485 DB9 M
3PCIOU2
2 x RS-232/422/485
Standard (non-isolated)
3PCIU2
2 x RS-232/422/485 DB9 M
DB37 F (DB37 to 4 x DB9 M
3PCIU4
4 x RS-232/422/485
cable included)
ACCESSORIES
9PAMF6 - DB9 Male To DB9 Female Cable, 6 ft. (1.8 m)
9SGF - DB9 Gender Reverser, changes male port to female (F to F)
9SGM - DB9 Gender Reverser, changes female port to male (M to M)
SPECIFICATIONS
Operating Systems
Bus
Data Rate
UARTs
Buffer
Character Length
Parity
Stop Bits
Isolation
(select models only)
RS-232 Signals
RS-422 Signals
RS-485 Signals
Operating Temperature
Operating Humidity
Dimensions, card edge
Mounting Bracket
Approvals
MTBF
Windows XP (32 bit/64 bit), Vista (32 bit /64 bit), Windows 7
(32 bit /64 bit), Server 2008 (32 bit /64 bit), Server 2008 R2
(64 bit)
PCI (33 MHz/32 bit)
Up to 460.8 kbps (RS-232/422/485)
XR17D15X (16C550 compatible)
64 byte FIFO buffer
5, 6, 7, or 8 bits
Even, Odd, None, Space or Mark
1, 1.5, or 2
2K V optical isolation.
Ports are isolated from PC power, ground and other ports on
the same card.
TD, RD, and all handshake signals
TDA(-), TDB(+), and GND
Data A(-), Data B(+), and GND
32 to 122
°F
(0 to 50
°C)
0 to 95% non-condensing
12.2 x 9.6 cm (4.8 x 3.8 in)
1.2 x 12.1 x 0.9 cm (0.5 x 4.8 x 0.4 in)
FCC, CE
3PCIOU1 - 1291601 hours
3PCIOU2 - 823883 hours
3PCIU2 - 211565 hours
3PCIU4 - 1637664 hours
All product specifications are subject to change without notice.
3PCIOU1_3PCIOU2_3PCIU2_3PCIU4_2417ds
