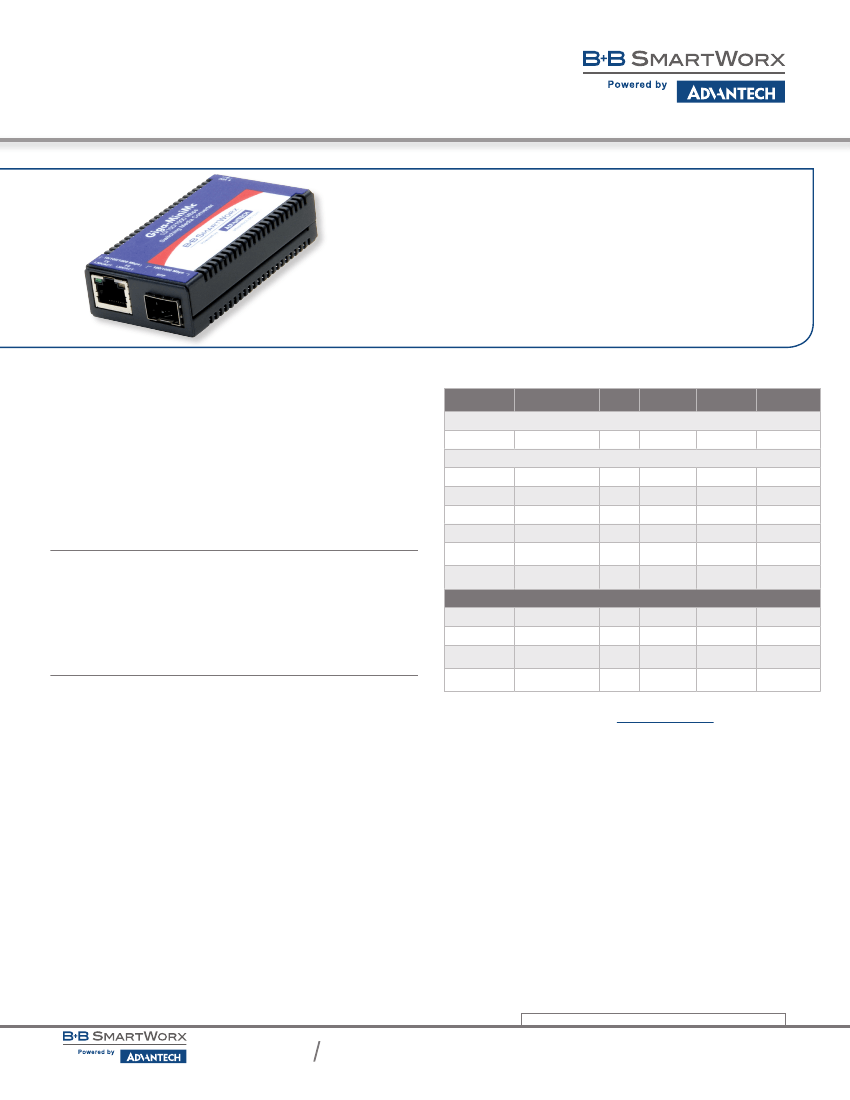

Smallest, Gigabit Switching
Media Converter
Giga-MiniMc SFP with LFPT & Giga-MiniMc TX/SX & TX/LX
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
•
One 1000Base-SC or 1000Base-LX fiber port
One 10/100/1000 Mbps twisted pair port
Status LEDs
AutoCross automatic selection between crossover or
straight-through connection
SFP model available
Power Options: AC Adapter, Dual USB cable or IE-PowerTray/18 chassis
Media conversion is the most cost-effective solution for extending the productive
life of legacy wiring plants and equipment while allowing implementation of new
technologies. A 10/100/1000Mbps copper to fiber unmanaged media converter,
the Giga-MiniMc models offer flexibility as well as cost savings.
Measuring less than 3.5 inches deep and 2 inches wide, the Giga-MiniMc is the
industry’s smallest gigabit media converter with both data connections on the
same side of the unit, and at a fraction of the cost of other alternatives. Plug-
and-play operation with a variety of model types and powering options make the
Giga-MiniMc easy and convenient to use.
ORDERING INFORMATION
MODEL
NUMBER
FIBER
SFP
SX-MM850-SC
SX-MM850-ST
LX-MM1300-SC
Giga-MiniMc SFP with LFPT
856-10747
856-10730
856-10730-ST
856-10728
856-10731
FIBER RANGE
PORTS
1
1
1
1
1
1
1
Various
220/550 m
220/550 m
2 km
10 km
40 km
80 km
15 km
15 km
40 km
40 km
ETHERNET ETHERNET
PORTS
CONNECTOR
1
1
1
1
1
1
1
1
1
1
1
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
Giga-MiniMc TX/SX and TX/LX
806-39105
- DIN Rail Clip
806-39638
- Double-USB Power Cable, 36 inch / 0.9m
806-39650
- 12 inch / 0.3m Barrel-Connector Power Cable
850-13086
- IE-PowerTray/18-AC (-20 to +70 °C), 18-slot AC Powered Chassis
895-39229
- Wall Mount Bracket
ACCESSORIES
LX-SM1310-SC
LX-SM1310/
856-10732
PLUS-SC
LX-SM1550/
856-10733
LONG-SC
SINGLE STRAND FIBER **
856-10734
856-10735
856-10736
856-10737
SSLX-SM1310-SC 1
SSLX-SM1550-SC 1
SSLX-SM1310/
1
PLUS-SC
SSLX-SM1550/
1
PLUS-SC
** SFP fibers sold separately - available at
www.advantech-bb.com
** These products have single-strand fiber technology. Deploy in pairs or connect another compatible
Advantech B+B SmartWorx single-strand fiber product.
All product specifications are subject to change without notice.
Giga-MiniMc with SFP & Giga-MiniMc TX/SX & TX/LX_1917ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Smallest, Gigabit Switching
Media Converter
Giga-MiniMc SFP with LFPT & Giga-MiniMc TX/SX & TX/LX
SPECIFICATIONS
TECHNICAL
Plug-and-play operation
RJ45 and SC or SFP connectors
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
MTU: Supports Jumbo Frames up to 10240 bytes
Country-specific, high-reliability power adapter
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10 Mbps,
148,810 pps for 100 Mbps, 1,488,096 pps for 1000 Mbps)
Auto-Cross for MDI/MDIX
Status LEDs
MECHANICAL
Dimensions
Shipping Weight
Mounting
POWER
5 VDC, 600mA
120 VAC, 0.1A
ENVIRONMENTAL
Operating Temperature:
Storage Temperature
Operating Humidity
REGULATORY APPROVALS
FCC Class A
UL/cUL, CSA, CE
0.83H x 1.80W x 3.35D inches
(2.11H x 4.57W x 8.51D cm)
0.7 lbs (0.317 kg)
DIN Rail and Wall Mount Bracket
+32 to +122 °F (0 to +50 °C)
-31 to +167 F (-35 to +75 °C)
5% to 95% (non-condensing)
MEANTIME BEFORE FAILURE (MTBF)
MTBF
659,439 hours

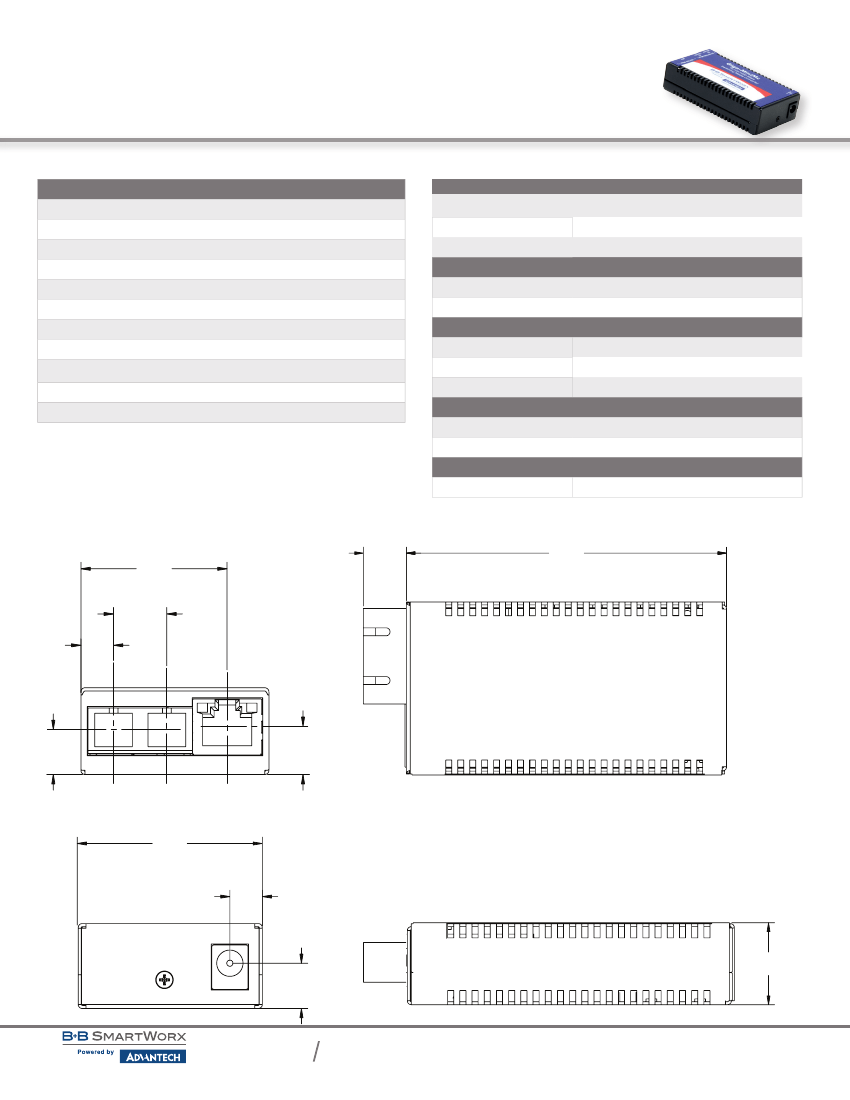

MECHANICAL DIAGRAM
1.40
(35.6)
.51
(12.9)
REF
(dimensions in inches & millimeters)
.45
(11.4)
3.35
(85.1)
.31
(7.9)
.43
(11.0)
.46
(11.7)
1.81
(46,0)
.32
(8,1)
.44
(11,2)
.84
(21,3)
