BNC7T-J-P-HN-ST-TH2D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BNC7T-J-P-HN-ST-TH2D

BNC7T-J-P-HN-ST-TH2D: DescriptionCONN BNC JACK STR 75 OHM PCB; CategoryThe connector The connector; File Size213KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BNC7T-J-P-HN-ST-TH2D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BNC7T-J-P-HN-ST-TH2D	-	-	View	Buy Now

BNC7T-J-P-HN-ST-TH2D Overview

CONN BNC JACK STR 75 OHM PCB

BNC7T-J-P-HN-ST-TH2D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	TRUE 75
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD (30) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BNC7T
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

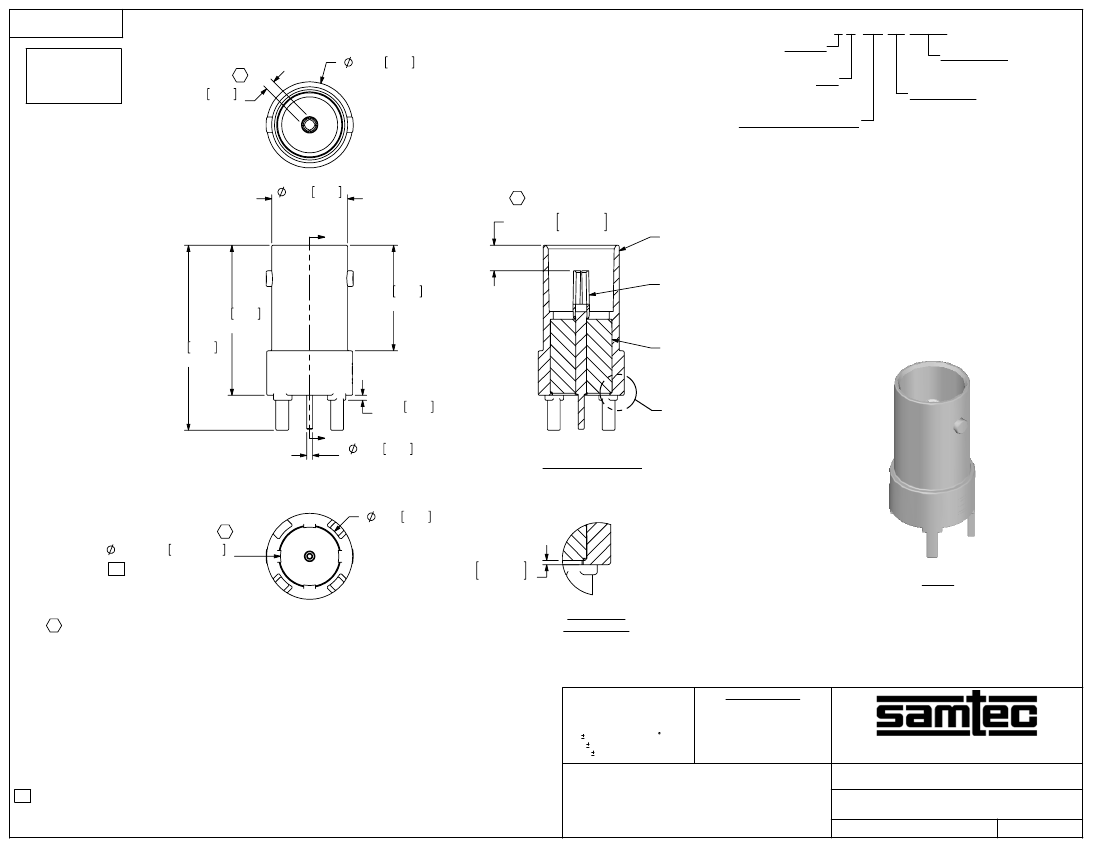

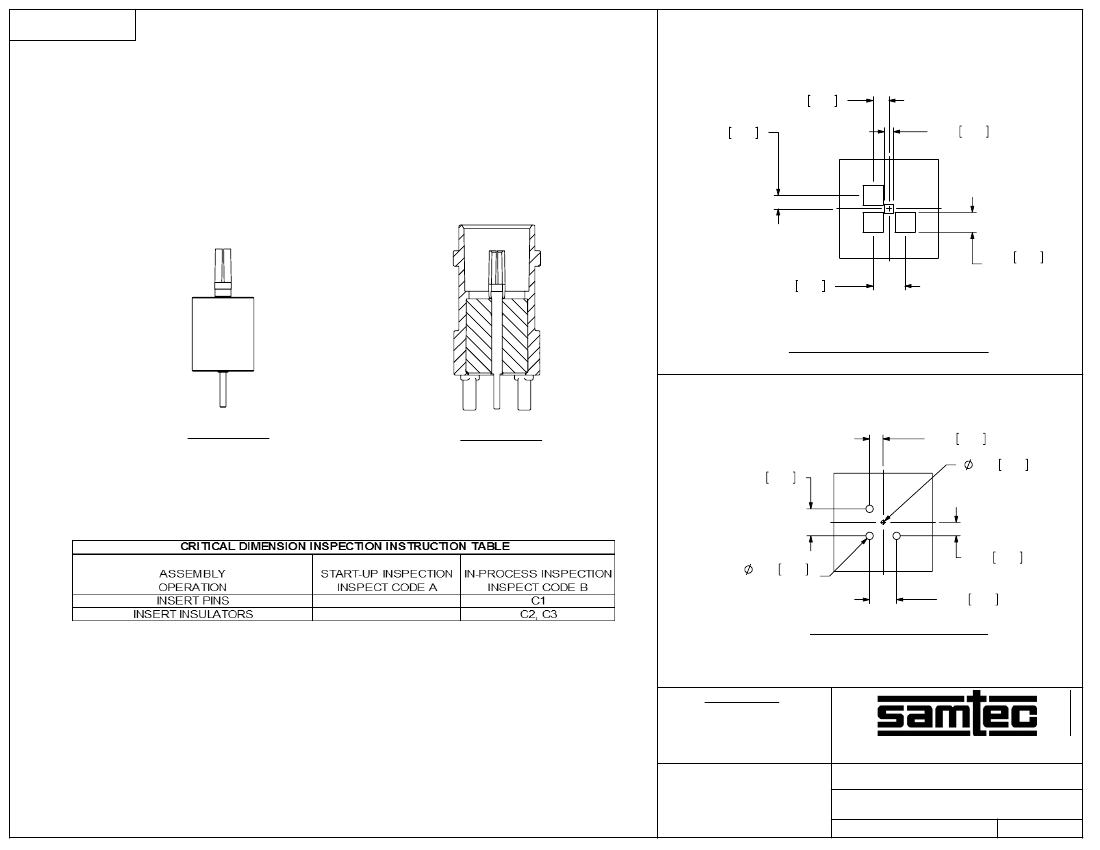

REVISION F

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

1.25 .049

(2 PLCS)

10.92 .430

BNC7T-J-P-XX-ST-TH2D

GENDER

-J: JACK

TYPE

-P: PCB

TERMINATION

-TH2D: DIE CAST

THROUGH HOLE

ORIENTATION

-ST: STRAIGHT

9.65 .380

REF

"A"

3.25

- 0.05

.128

- .002

+0.10

+.004

PLATING SPECIFICATION

-HN: HEAVY GOLD/NICKEL (SEE NOTES 6 & 7)

(BNC7T-J-P-DN-ST-TH2-BDY-D)

(BNC7T-J-P-ST-TH2-INS)

(BNC7T-J-P-HN-ST-TH2-2PC-SKT)

-GN: HEAVY GOLD/NICKEL (SEE NOTES 6 & 7)

(BNC7T-J-P-DN-ST-TH2-BDY-D)

(BNC7T-J-P-ST-TH2-INS)

(BNC7T-J-P-GN-ST-TH2-2PC-SKT)

BNC7T-J-P-XX-ST-TH2-BDY-D

19.06 .750

REF

23.50 .925

REF

13.41 .528

REF

BNC7T-J-P-XX-ST-TH2-2PC-SKT

BNC7T-J-P-ST-TH2-INS

0.64 .025

REF

"A"

0.76 .030

REF

'B'

SECTION "A"-"A"

8.89 .350 REF

NOTES:

7.40±0.10 .291±.004

(SEE NOTE 9)

0.00

.000

- .000

(BODY/INS)

+0.20

+.008

BNC7T-J-P-XX-ST-TH2D SHOWN

FIG 1

1. C REPRESENTS A CRITICAL DIMENSION.

2. PUSHOUT FORCE FOR CENTER CONTACT: 26.69 N [6.0 LB] MIN.

3. PUSHOUT FORCE FOR INSULATOR: 53.38 N [12.0 LB] MIN.

4. SEE CO-HD-WI-3040-M RF PACKAGING STANDARD FOR PACKAGING INSTRUCTIONS.

PRODUCT TO BE PACKAGED IN TRAY TY-BNC001-1 WITH COVER TY-SMA001-2.

5. RoHs COMPLIANT.

6. PLATING: -H: .000030" MIN GOLD OVER .000050" MIN. NICKEL.

-G: .000010" MIN GOLD OVER .000050" MIN. NICKEL.

-N: .000100" MIN NICKEL.

7. ASSEMBLY PLATING DESIGNATIONS:

-HN: (CENTER CONTACT)-H

(OUTER CONTACT)-N

-GN: (CENTER CONTACT)-G

(OUTER CONTACT)-N

8. NOTE DELETED.

9. 0.10 [.004] BURR ALLOWED IN SPECIFIED AREA ONLY.

DETAIL 'B'

SCALE 4 : 1

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN MILLIMETERS [INCHES]

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

TOLERANCES ARE:

DECIMALS

.X: 0.3 [.01]

.XX: 0.13 [.005]

.XXX: 0.051 [.0020]

MATERIAL:

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

SHELL: ZINC

CONTACT: COPPER ALLOY

DIELECTRIC: PTFE

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

TRUE 75OHM BNC ELEVATED STRAIGHT JACK

F:\DWG\MISC\MKTG\BNC7T-J-P-XX-ST-TH2D-MKT.SLDDRW

BY:

D. PARMAR

BNC7T-J-P-XX-ST-TH2D

10/21/2009

SHEET

BNC7T-J-P-HN-ST-TH2D Related Products

	BNC7T-J-P-HN-ST-TH2D	BNC7T-J-P-GN-ST-TH2D
Description	CONN BNC JACK STR 75 OHM PCB	CONN BNC JACK STR 75 OHM PCB
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Factory Lead Time	2 weeks	2 weeks
Other features	TRUE 75	TRUE 75
Body/casing type	JACK	JACK
Characteristic impedance	75 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD (30) OVER NICKEL (50)	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE
Contact material	BRASS	BRASS
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.45	1.45
