IPS1-125-01-L-D-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> IPS1-125-01-L-D-RA

IPS1-125-01-L-D-RA: Description.100 DOUBLE ROW SHROUDED SOCKET; CategoryThe connector The connector; File Size766KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

IPS1-125-01-L-D-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IPS1-125-01-L-D-RA	-	-	View	Buy Now

IPS1-125-01-L-D-RA Overview

.100 DOUBLE ROW SHROUDED SOCKET

IPS1-125-01-L-D-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	MINI MATE; TIGER BUY, SHROUDED
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P50
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.668 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	10u inch
Rated current (signal)	2.3 A
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Terminal length	0.1 inch
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	1.39 N
Base Number Matches	1

Preview

Download Datasheet

View All

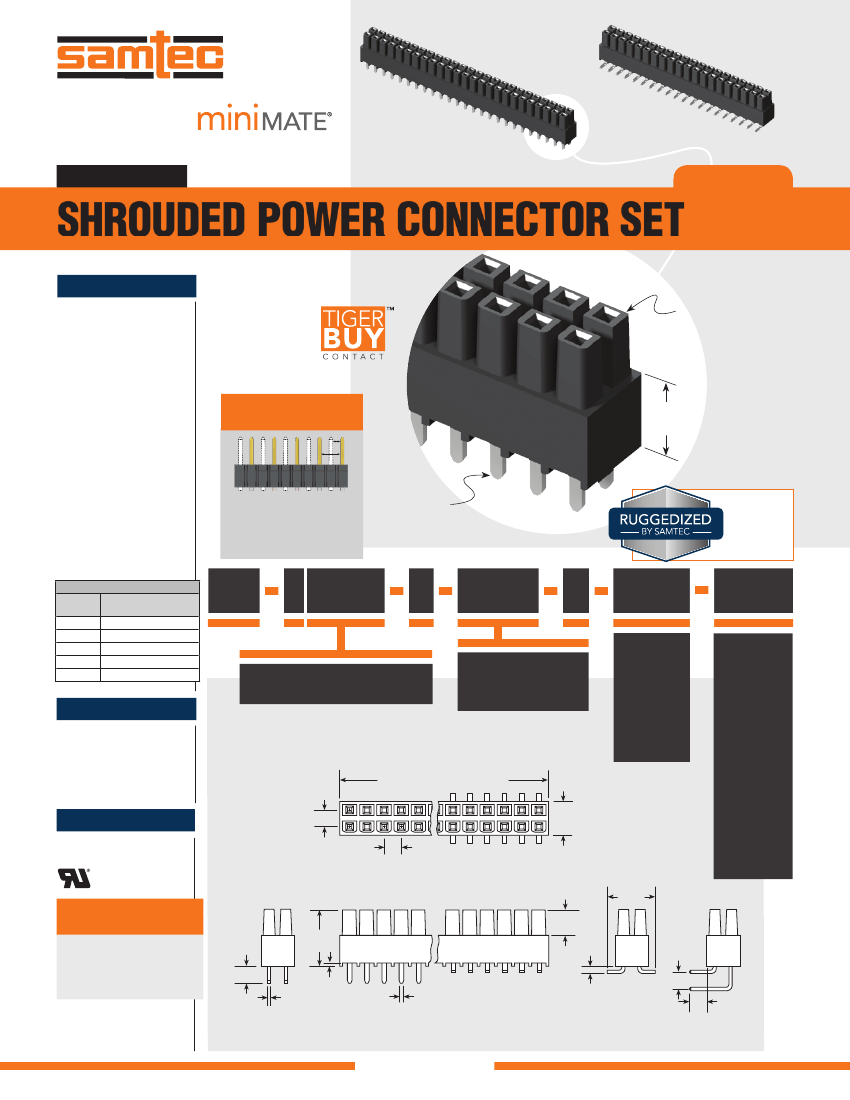

F-219

IPS1–120–01–L–D–VS

IPS1–125–01–L–D

(2.54 mm) .100"

IPS1 SERIES

SHROUDED POWER CONNECTOR SET

SPECIFICATIONS

For complete specifications

see www.samtec.com?IPS1

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C with Tin;

-55 °C to +125 °C with Gold

Insertion Depth:

(3.81 mm) .150" to

(6.48 mm) .255"

Wiping Distance:

(0.38 mm) .015"

Voltage Rating:

775 VAC/1095 VDC

Standard Creepage:

(2.55 mm) .100" (without -LC)

(1.08 mm) .043" (with -LC)

Standard Clearance:

(1.75 mm) .069" (without -LC)

(0.62 mm) .024" (with -LC)

RoHS Compliant:

Yes

IPT1/IPS1

CURRENT RATING

(PER CONTACT)

5.9 A

4.8 A

4.1 A

3.6 A

2.3 A

Mates with:

IPT1

Each contact

individually

shrouded for

electrical and

mechanical

protection

CREEPAGE

AND CLEARANCE

(4.70 mm)

.185"

Selectively loading

contacts achieves customer

specific creepage and

clearance requirements.

Contact asp@samtec.com

Choice of

through-hole or

surface mount

• Individually

shrouded

contacts

• Locking clip

option

PINS

IPS1

NO. PINS

PER ROW

PLATING

OPTION

TAIL

OPTION

Leave

blank for

Through-hole

OTHER

OPTION

05, 10, 15, 20, 25

(Standard sizes)

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.13 mm) .005" max (05-10)*

(0.15 mm) .006" max (15-25)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

–L

= Surface

Mount

–VS

= Locking Clip

(Manual

placement

required)

(–VS only)

–LC

= Right-angle

No. of positions x (2.54) .100

+ (0.38) .015

–RA

= (5.50 mm)

.217" DIA

Polyimide film

Pick & Place

Pad

(–VS only)

–K

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

(4.95)

.195

(2.54)

.100

(2.54)

.100

= Tape &

Reel

Packaging

(–VS only)

(7.87)

.310

–TR

Through-hole

Surface Mount

ALSO AVAILABLE

(MOQ Required)

•

Other sizes

Other platings

Latching feature

No. 1 position polarized

(2.54)

.100

(8.51)

.335

(3.81)

.150

(1.27)

.050

(2.54)

.100

(0.41)

.016

(0.51)

.020

(0.79)

.031

–VS

(2.54)

.100

–RA

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
