D4S20G-400A5-D: DescriptionCONN HSD FAKRA PLUG R/A 100OHM; CategoryThe connector The connector; File Size280KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

D4S20G-400A5-D Overview

CONN HSD FAKRA PLUG R/A 100OHM

D4S20G-400A5-D Parametric

Parameter Name	Attribute value
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG
Characteristic impedance	100 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD (6)
Contact completed and terminated	TIN (79)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D4S20G-400A5
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

Technical Data Sheet

Rosenberger

HSD®

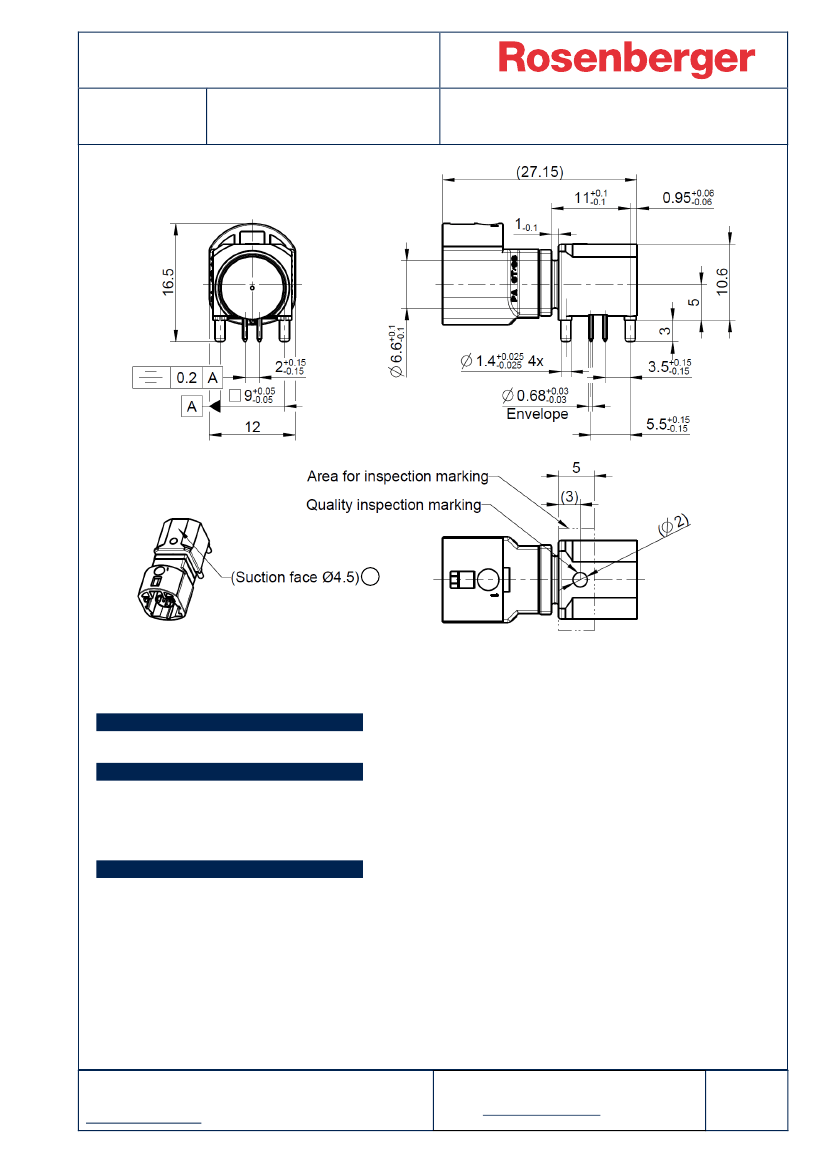

RIGHT ANGLE PLUG

FOR PCB

D4S20G-400A5-Y

Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

All dimensions are in mm; tolerances according to ISO 2768 m-H

EMC-screening must be assured by chassis compartment. Control box manufacturer is responsible for EMC-

screening.

Interface

According to

RN 059-01

Documents

Assembly instruction

Panel piercing

Pinning instruction

Test specification

D4V013

MB_261

RN 053-01

RN 061-01

Material and plating

Connector parts

Center contact

Outer contact 1 (Interface)

Outer contact 2 (PCB)

Cover

Dielectric

Housing

Material

Spring bronze

Brass

Zinc Alloy

Alpaca

LCP

PA 6T/66

Plating

Gold, 0.15 µm (Interface)

Tin, 0.5-2 µm (PCB)

Nickel, 3-6 µm

Tin, 2-5 µm over Nickel 1-5µm

RF_35/09.14/6.2

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/3
