838-22-010-10-001101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 838-22-010-10-001101

838-22-010-10-001101: Description2MM PITCH, DOUBLE ROW, THRU-HOLE; CategoryThe connector The connector; File Size504KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

838-22-010-10-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	838-22-010-10-001101	-	-	View	Buy Now

838-22-010-10-001101 Overview

2MM PITCH, DOUBLE ROW, THRU-HOLE

838-22-010-10-001101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.157 inch
subject depth	0.141 inch
body length	0.394 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (120) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	990VAC V
Durability	1000000 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	20u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

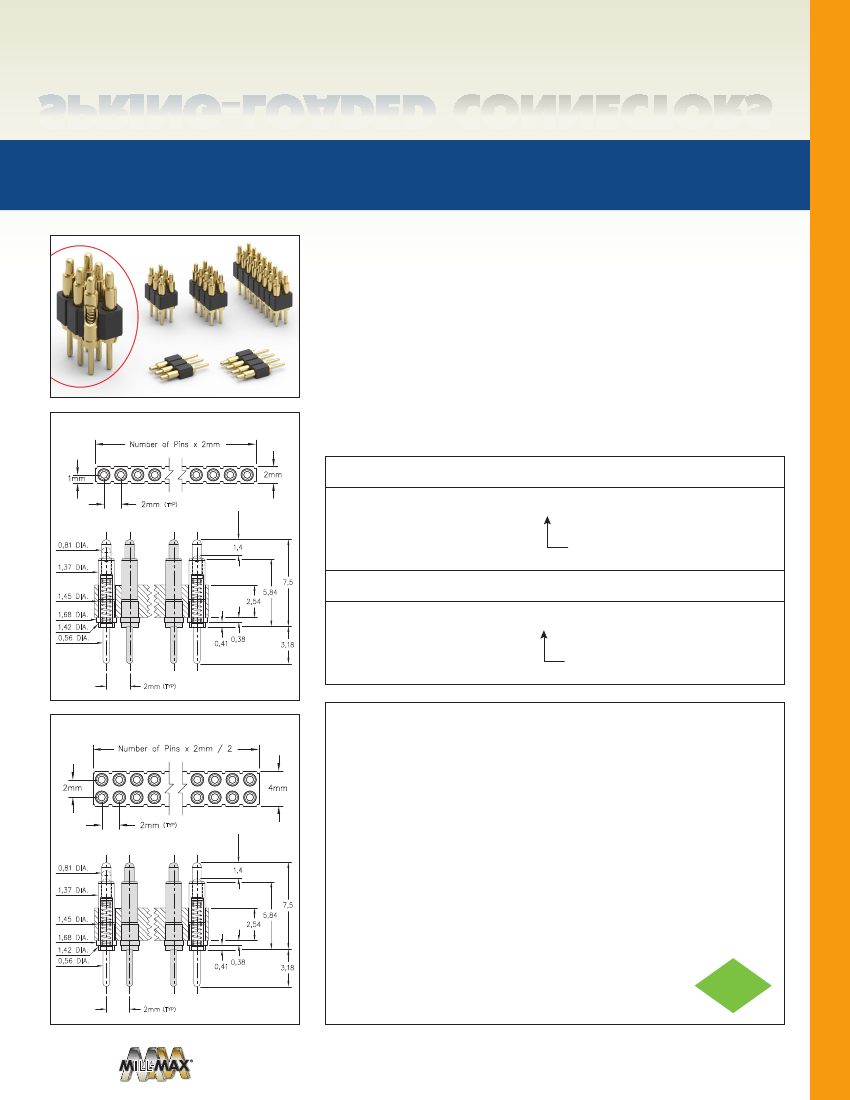

SPRING-LOADED

CONNECTORS

SERIES 836 & 838 • 2MM GRID THROUGH

HOLE MOUNT •

SINGLE AND DOUBLE ROW STRIPS

• Modular contacts for use on 2mm grid, supplied in single and double row contact strips

• Precision-machined piston / base and gold-plated components assure up to 1,000,000

cycle life durability

• Pistons have a 0,7 mid. stroke and a 1,4 max. stroke

• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

• High temperature thermoplastic insulators are suitable for wave and reflow processes

• Both 836 & 838 series contact strips are designed for manual placement into Ø 0,76±0,08

plated through-holes in the circuit board prior to soldering

SINGLE ROW Series 836

ORDERING INFORMATION

Single Row Series 836

836-22-0XX-10-001101

Specify number of contacts

01-50

7,5

0,81 DIA.

1,37 DIA.

Stroke

1,4

1,45 DIA.

1,68 DIA.

1,42 DIA.

0,56 DIA.

0,41

0,38

5,84

2,54

Double Row Series 838

838-22-XXX-10-001101

3,18

Specify number of contacts

04-100

2mm

(TYP)

DOUBLE ROW Series 838

0,81 DIA.

1,37 DIA.

1,4

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (0,7): 60 grams

Durability: Up to 1,000,000 cycles

7,5

1,45 DIA.

1,68 DIA.

1,42 DIA.

0,56 DIA.

0,41

0,38

5,84

2,54

3,18

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

2011/65/EU

RoHS - 2

2mm

(TYP)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 19.7 | SPRING-LOADED CONNECTORS

Materials:

Contact piston & base: Machined copper alloy plated 0,51μm gold over

2,54μm nickel

Spring: Beryllium copper-plated 0,25μm gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Technical Specifications
