BNC7T-J-P-HN-ST-TH1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BNC7T-J-P-HN-ST-TH1

BNC7T-J-P-HN-ST-TH1: DescriptionCONN BNC JACK STR 75 OHM PCB; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BNC7T-J-P-HN-ST-TH1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BNC7T-J-P-HN-ST-TH1	-	-	View	Buy Now

BNC7T-J-P-HN-ST-TH1 Overview

CONN BNC JACK STR 75 OHM PCB

BNC7T-J-P-HN-ST-TH1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	TRUE 75
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BNC7T
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

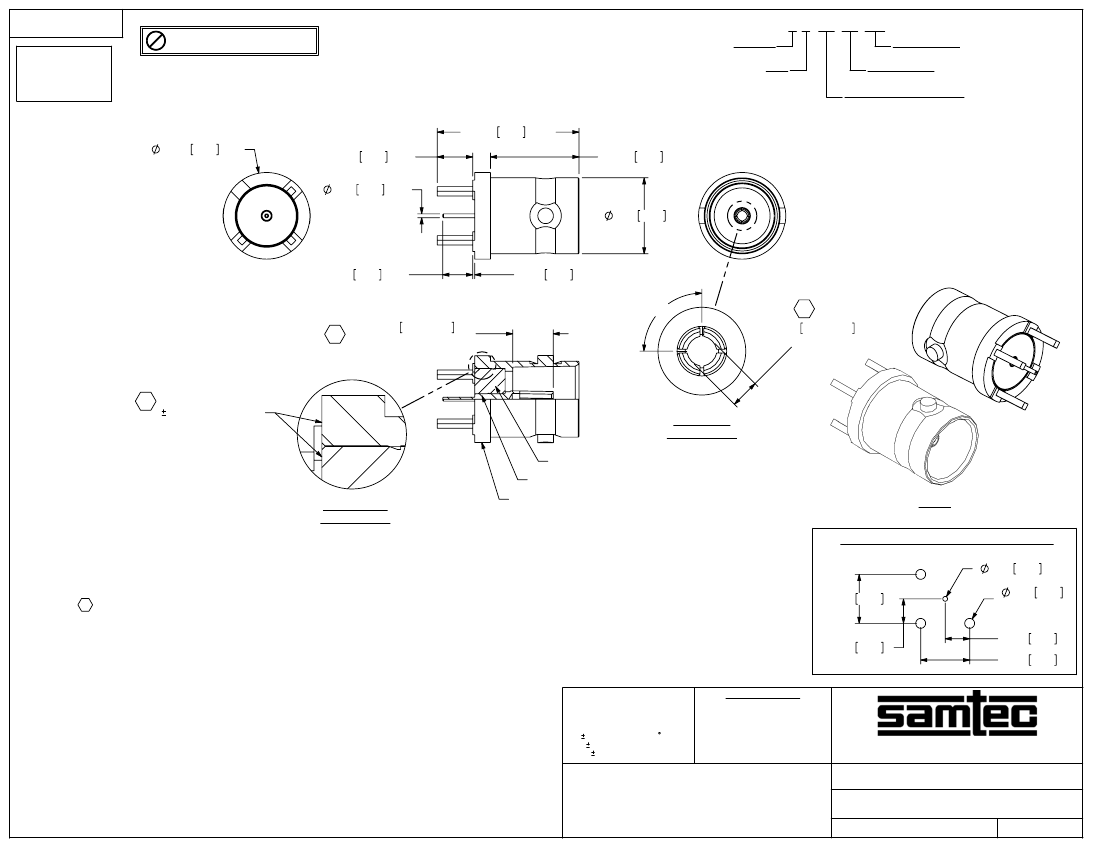

REVISION G

DO NOT

SCALE FROM

THIS PRINT

Pb THIS PRODUCT MANUFACTURED

WITH LEAD-FREE PROCESSING

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

BNC7T-J-P-XX-ST-TH1

GENDER

-J: JACK

TYPE

-P: PCB

TERMINATION

-TH1: THROUGH HOLE

ORIENTATION

-ST: STRAIGHT

PLATING SPECIFICATION

-HN: HEAVY GOLD/NICKEL (SEE NOTES 7 & 8)

(BNC7T-J-P-N-ST-TH1-BDY)

(BNC7T-J-P-ST-TH1-INS)

(BNC7T-J-P-H-ST-TH1-SKT)

-GN: GOLD/NICKEL (SEE NOTES 7 & 8)

(BNC7T-J-P-N-ST-TH1-BDY)

(BNC7T-J-P-ST-TH1-INS)

(BNC7T-J-P-G-ST-TH1-SKT)

*-MN: GOLD/NICKEL (SEE NOTES 7 & 8)

(BNC7T-J-P-N-ST-TH1-BDY)

(BNC7T-J-P-ST-TH1-INS)

(BNC7T-J-P-G-ST-TH1-SKT)

*= FOR EXISTING CUSTOMERS ONLY

18.00 .709 REF

11.00 .433 REF

4.50 .177 REF

0.50 .020 REF

9.65 .380 REF

11.25 .443 REF

3.80 .150 REF

0.25 .010 REF

90°

5.13±0.10 .202±.004

(TO CENTER CONTACT)

1.23±0.03 .048±.001

(2 PLCS)

C3 POSITION INSULATOR

0.10 TO BODY

DETAIL B

SCALE 6 : 1

BNC7T-J-P-ST-TH1-INS

BNC7T-J-P-X-ST-TH1-SKT

DETAIL 'A'

SCALE 8 : 1

BNC7T-J-P-X-ST-TH1-BDY

BNC7T-J-P-HN-ST-TH1 SHOWN

FIG 1

RECOMMENDED PCB HOLE LAYOUT

0.60 .024

NOTES:

1. C REPRESENTS A CRITICAL DIMENSION.

2. PUSHOUT FORCE FOR CENTER CONTACT: 26.69 N [6.0 LB] MIN.

3. NOTE DELETED.

4. SEE CO-HD-WI-3040-M RF PACKAGING FOR PACKAGING INSTRUCTIONS.

5. RoHs COMPLIANT.

SEE PLATING STANDARD CO-PL-FRM-7001-M.

7. COMPONENT PLATING DESIGNATIONS:

-H: 0.000030" MIN. GOLD OVER 0.000050" MIN. NICKEL.

-G 0.000010" MIN. GOLD OVER 0.000050" MIN. NICKEL.

-N: 0.000100" MIN. NICKEL.

8. ASSEMBLY PLATING DESIGNATIONS:

-HN: (CENTER CONTACT)-H

(OUTER CONTACT) -N

(REMAINING METAL PARTS) -N

-GN, -MN: (CENTER CONTACT)-G

(OUTER CONTACT) -N

(REMAINING METAL PARTS) -N

9. NOTE DELETED.

6.22 .245

1.25 .049

(3 PLCS)

3.11 .122

6.22 .245

3.11 .122

F:\DWG\MISC\MKTG\BNC7T-J-P-XX-ST-TH1-MKT.SLDDRW

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN MILLIMETERS [INCHES]

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

TOLERANCES ARE:

DECIMALS

.X: 0.3 [.01]

.XX: 0.13 [.005]

.XXX: 0.051 [.0020]

MATERIAL:

ANGLES

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

BODY: BRASS

CONTACT: COPPER ALLOY

DIELECTRIC: PTFE

TRUE 75 OHM BNC STRAIGHT JACK FOR PCB

BNC7T-J-P-XX-ST-TH1

09-13-2010

BY:

G. HERMAN

SHEET
