RSEL-2006A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> RSEL-2006A

Preview

RSEL-2006A: DescriptionLINE FILTER 250VDC/VAC 6A CHASS; CategoryAnalog mixed-signal IC filter; File Size1MB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

RSEL-2006A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RSEL-2006A	-	-	View	Buy Now

RSEL-2006A Overview

LINE FILTER 250VDC/VAC 6A CHASS

RSEL-2006A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK-LAMBDA
package instruction	ROHS COMAPLIANT, COMPACT PACKAGE
Reach Compliance Code	compliant
Certification	UL; CSA; EN
filter type	SINGLE PHASE EMI FILTER
high	20 mm
Minimum insulation resistance	100 MΩ
Maximum leakage current	1 mA
length	50 mm
Installation type	CHASSIS MOUNT
working frequency	60Hz Hz
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
physical size	L50.0XB45.0XH20.0 (mm)/L1.969XB1.772XH0.787 (inch)
Rated current	6 A
Rated voltage	250 V
width	45 mm
Base Number Matches	1

Preview

Download Datasheet

View All

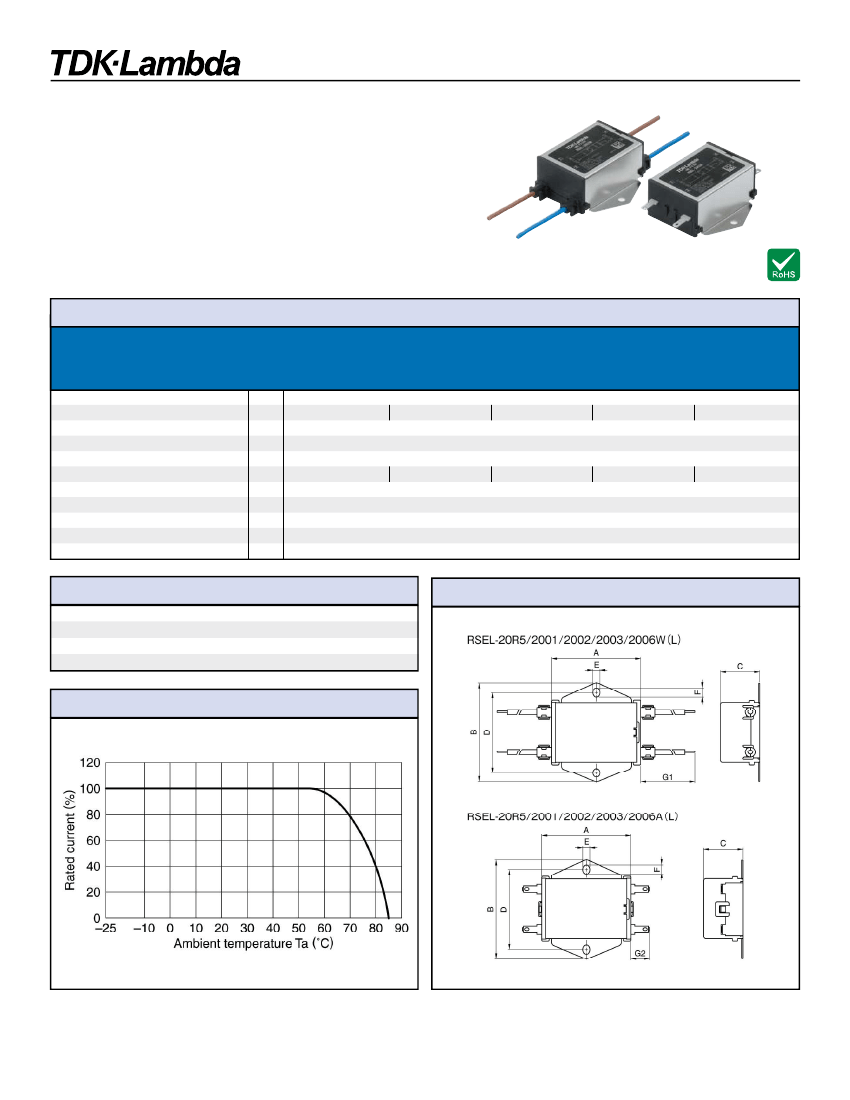

RSEL Series

0.5A to 6A, 250VAC EMI Filters

Features



Low Cost (Than RSAL Series)



Lug or Wire Terminations



Low Earth Leakage Current Option



Conforms to UL, CSA and EN Safety Agency Certiﬁcations

Speciﬁcations

RSEL-20R5W

RSEL-20R5A

RSEL-20R5WL

RSEL-20R5AL

V

A

V

MΩ

A

mΩ

°C

-

g

yr

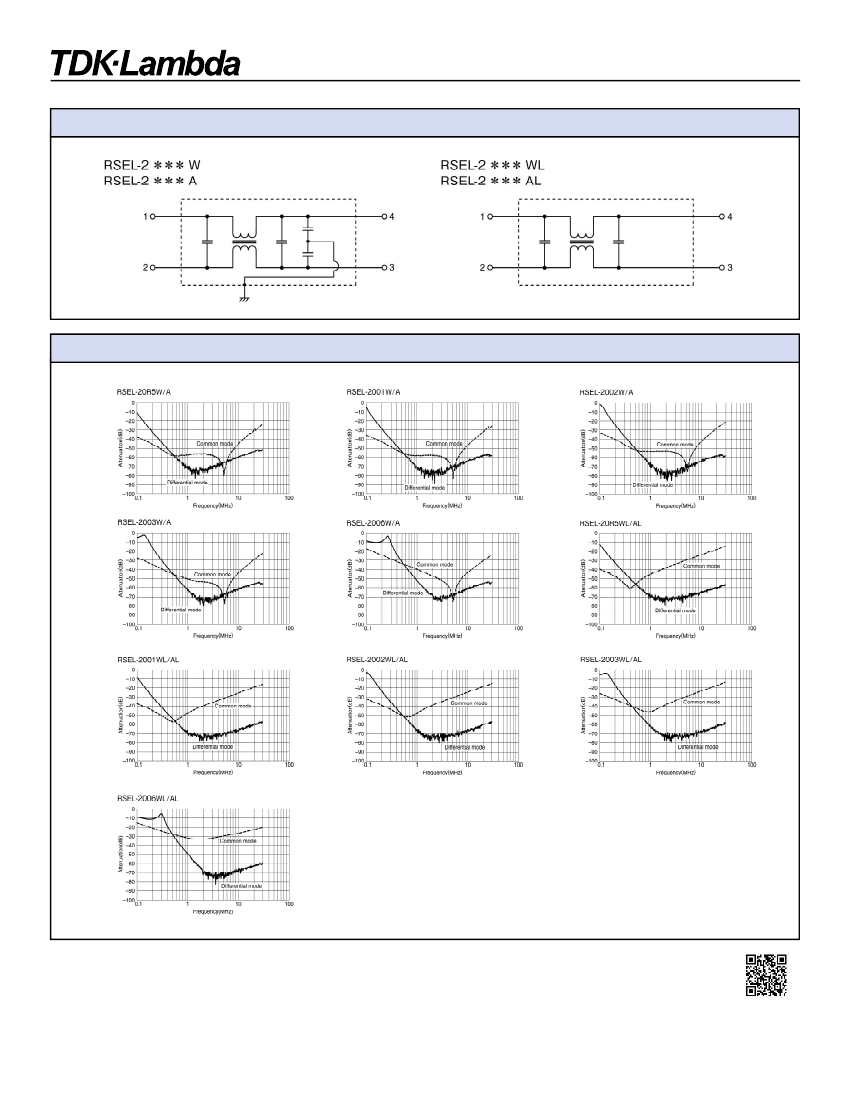

RSEL-2002W

RSEL-2003W

RSEL-2002A

RSEL-2003A

RSEL-2002WL RSEL-2003WL

RSEL-2002AL

RSEL-2003AL

250V

0.5A

1A

2A

3A

Terminals to Case: 2500VAC (1 Minute)

100MΩ minimum (500VDC, 1 Minute)

RSEL-20xxx 1mA; RSEL20xxxL 10uA (250VAC, 60Hz)

700

600

250

150

-25 to +85°C (Derate above 55°C, see derating curve)

-25 to +85°C

UL1283, CSA C22.2 No.8, EN60939

61g Maximum

5 Year

RSEL-2001W

RSEL-2001A

RSEL-2001WL

RSEL-2001AL

RSEL-2006W

RSEL-2006A

RSEL-2006W

RSEL-2006AL

6A

Model

Rated Voltage (AC, DC)

Rated Current

Withstand Voltage

Isolation Resistance

Leakage Current (max)

DC Resistance (total)

Operating Temperature

Storage Temperature

Safety Agency Certiﬁcations

Weight

Warranty

80

Options

Wire Terminations

Lug Terminations

Wire Terminations & Low Leakage Current

Lug Terminations & Low Leakage Current

RSEL-20xxW

RSEL-20xxA

RSEL-20xxWL

RSEL-20xxAL

Outline Drawing

Derating

1-800-526-2324 • www.us.tdk-lambda.com/lp/

278

Disclaimer: us.tdk-lambda.com/lp/legal.htm
