Introduction
The V Series™ LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package.
These chip on board (CoB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility not
previously possible. This high flux density light source is designed to support a wide range of high quality, low cost directional
luminaires and replacement lamps for commercial and residential applications.
The V18 LED Array is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility and
energy efficiencies.
Lighting system designs incorporating these LED arrays deliver increased system level efficacy and longer service life. Typical
applications include, replacement lamps, and task, accent, spot, track, wide area, security, wall pack and down lights.
Bridgelux Décor Series is our state of the art color line designed specifically for premium applications, producing unmatched
LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux Décor
Series color points are available on Vero® SE Series, Vero® Series, V Series™ and H Series™.
Décor Series Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and a minimum R9 value of 93, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is designed as a replacement for halogen lamps.
Décor Series™ Food
products offer color points developed to address the unique requirements of the food, grocery, and
restaurant industries. Highlighting the distinctive colors and nuanced patterns found in meats and breads, the Décor Series
Food products are a must have for any butcher counter or bakery.
Décor Series™ Street and Landmark
is designed to be a direct replacement for high pressure sodium lamps.
Décor Series™ Showcase
is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white
light with enhanced spectrum coverage and higher efficacy.
Features
Benefits
• Efficacy of 160 lm/W typical
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 65, 70, 80, 90 and 95 CRI options
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 2, 3 and 4 SDCM options
• More energy efficient than incandescent, halogen
and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• V
f
bin code backside marking
• Enhanced optical control
• Clean white light without pixilation
• High quality true color reproduction
• Significantly reduced thermal resistance and
increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to
enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue

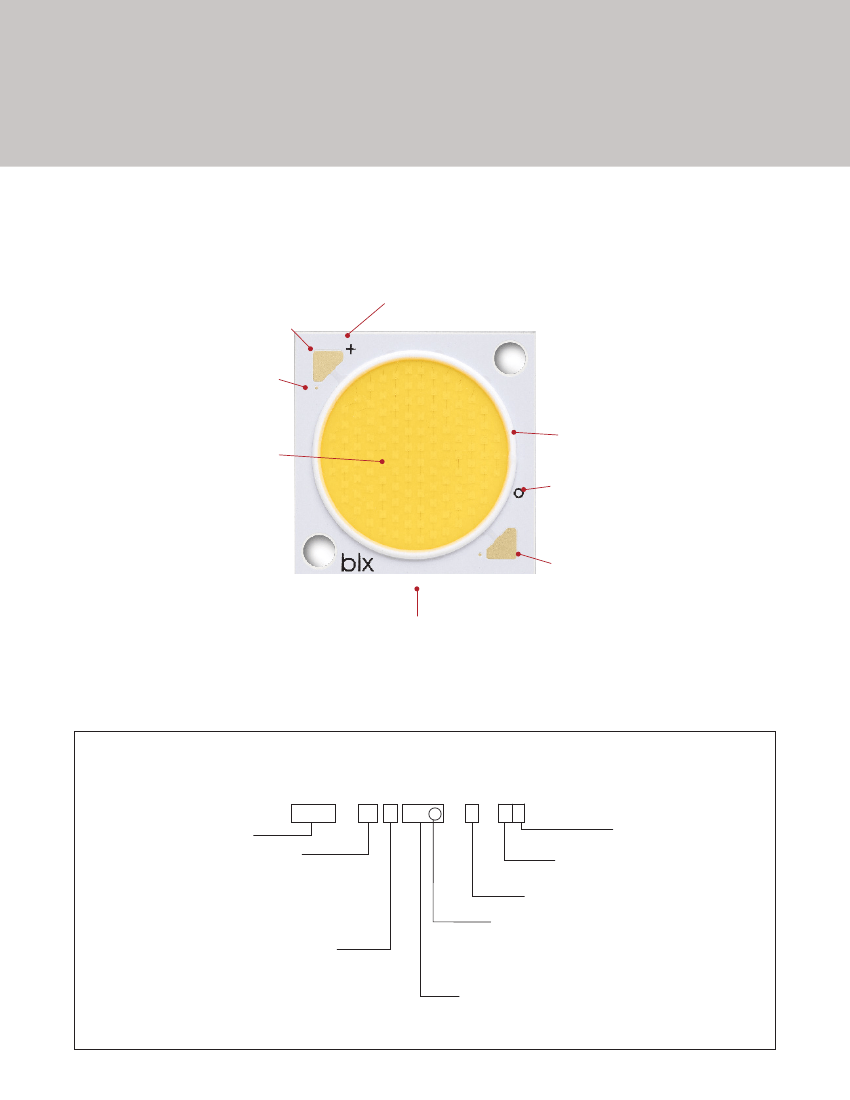

V Series
Product Feature Map
Bridgelux arrays are fully engineered devices that
provide consistent thermal and optical performance on an
engineered mechanical platform. The V Series arrays are
the most compact chip-on-board devices across all of
Bridgelux’s LED Array products. The arrays incorporate
several features to simplify design integration and
assembly. Please visit www.bridgelux.com for more
information on the V Series family of products.
Designed to comply with global
safety standards for creepage
and clearance distances
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
Polarity symbols
White ring around LES
Yellow phosphor Light
Emitting Surface (LES)
Case Temperature (T
c
) Measurement Point
Solder Pads
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux V Series LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
BXRE – 30 E 400 0 – C – 7 3
Product Family
Nominal CCT
17 = 1,750K
20 = 2,000K
25 = 2,500K
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
57 = 5,700K
65 = 6,500K
Gen. 7
CCT Bin Options
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
C = Décor Series Showcase Target
Flux Indicator
400x = 4000 lm
CRI
B = 65 CRI min.
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRE-17E4000-B-74
BXRE-20B4001-C-73
BXRE-25E4000-B-74
BXRE-27E4000-B-7x
BXRE-27E4000-C-7x
BXRE-27G4000-B-7x
BXRE-27G4000-C-7x
BXRE-27H4000-B-7x
BXRE-30E4000-B-7x
BXRE-30E4000-C-7x
BXRE-30G4000-B-7x
BXRE-30G4000-C-7x
BXRE-30G400C-B-73
BXRE-30H4000-B-7x
BXRE-35E4000-B-7x
BXRE-35E4000-C-7x
BXRE-35G4000-B-7x
BXRE-35G4000-C-7x
BXRE-35A4001-B-73
8,9
BXRE-40E4000-B-7x
BXRE-40E4000-C-7x
BXRE-40G4000-B-7x
BXRE-40G4000-C-7x
BXRE-50C4001-B-7x
BXRE-50C4001-C-7x
BXRE-50E4001-B-7x
BXRE-50E4001-C-7x
BXRE-50G4001-B-7x
BXRE-50G4001-C-7x
BXRE-57C4001-B-7x
BXRE-57C4001-C-7x
BXRE-57E4001-B-7x
BXRE-57E4001-C-7x
Nominal
CCT
1
(K)
1750
2000
2500
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3500
3500
3500
3500
3500
4000
4000
4000
4000
5000
5000
5000
5000
5000
5000
5700
5700
5700
5700
CRI
80
65
80
80
80
90
90
97
80
80
90
90
90
97
80
80
90
90
93
80
80
90
90
70
70
80
80
90
90
70
70
80
80
2
Nominal Drive
Current
3
(mA)
900
1170
900
900
1170
900
1170
900
900
1170
900
1170
1170
900
900
1170
900
1170
900
900
1170
900
1170
900
1170
900
1170
900
1170
900
1170
900
1170
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
2774
6081
4484
4807
6249
4000
5200
3484
5000
6500
4161
5410
3881
3710
5162
6710
4291
5578
4040
5194
6752
4452
5787
5710
7423
5355
6962
4549
5913
5516
7171
5293
6881
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
2497
5473
4036
4326
5624
3600
4680
3136
4500
5850
3745
4869
3493
3339
4645
6039
3861
5020
3636
4674
6077
4007
5209
5139
6681
4820
6265
4094
5322
4965
6454
4764
6193
Typical V
f
(V)
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
Typical
Power
(W)
31.4
40.8
31.4
31.4
40.8
31.4
40.8
31.4
31.4
40.8
31.4
40.8
31.4
31.4
31.4
40.8
31.4
40.8
31.4
31.4
40.8
31.4
40.8
31.4
40.8
31.4
40.8
31.4
40.8
31.4
40.8
31.4
40.8
Typical
Efficacy
(lm/W)
89
149
143
153
153
128
128
111
160
160
133
133
124
118
165
165
137
137
129
166
166
142
142
182
182
171
171
145
145
176
176
169
169
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. CRI values are typical for Decor Series Ultra and Decor Series Class A products. CRI values are minimums for all other products. Minimum R9 value for 80
CRI products is 0, the minimum R9 values for 90 CRI products is 50, the minimum R9 values for 97 CRI products is 93. Bridgelux maintains a ± 3 tolerance
on R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8. Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may vary
depending on fixture design and performance.
3
