Dual 18/16/14-Bit 1.1MSPS ZDS A/D Converter
1.
General Description
The AK9232/33/34 are 18/16/14-bit 1.1MSPS ZDS
(
*
)
A/D converter. A polar coordinate calculation
function is also integrated, and it reduces the load of DSP or microcomputer. The AK9232/33/34 are
available in an ultra-small package, saving space on the printing board.
(*) ZDS: Zero latency Delta Sigma
A ZDS A/D converter realizes ultrafast response of SAR while maintaining high accuracy conversion like
a delta-sigma converter, based on AKM’s accumulated experience and know-how in analog-digital LSI
technology. It contributes to improving the speed and the accuracy of negative feedback circuits.
A ZDS A/D converter can achieve small and high accurate motor systems..
□
2. Features
2ch Simultaneous Sampling 18/16/14-bit ZDS A/D Converter
Sampling Rate: 1.1MSPS
Differential Input
S/N: 88 dB (Typ.) at 20 kHz Input (AK9232)
88 dB (Typ.) at 20 kHz Input (AK9233)
84 dB (Typ.) at 20 kHz Input (AK9234)
18-bit No Missing Code, INL: ±5.0 LSB (Typ.) @Vin = -6dBFS (AK9232)
16-bit No Missing Code, INL: ±1.25 LSB (Typ.) @Vin = -6dBFS (AK9233)
14-bit No Missing Code, INL: ±0.75 LSB (Typ.) @Vin = -6dBFS (AK9234)
Polar coordinate calculation function
Offset/Gain Adjustment Function
Power Consumption: 130 mW/ch (fs=1.1MSPS, VDD=1.8V, HVDD= 5V, DRVDD=3V)
Power Supply
VDD: 1.7 ~ 2.0 V
HVDD: 4.75 ~ 5.25 V
DRVDD: 2.7 ~ 5.25 V
Operational Temperature Range: -40 ~ 105ºC
Package: Ultra Small 24-pin QFN (4mm x 4mm)

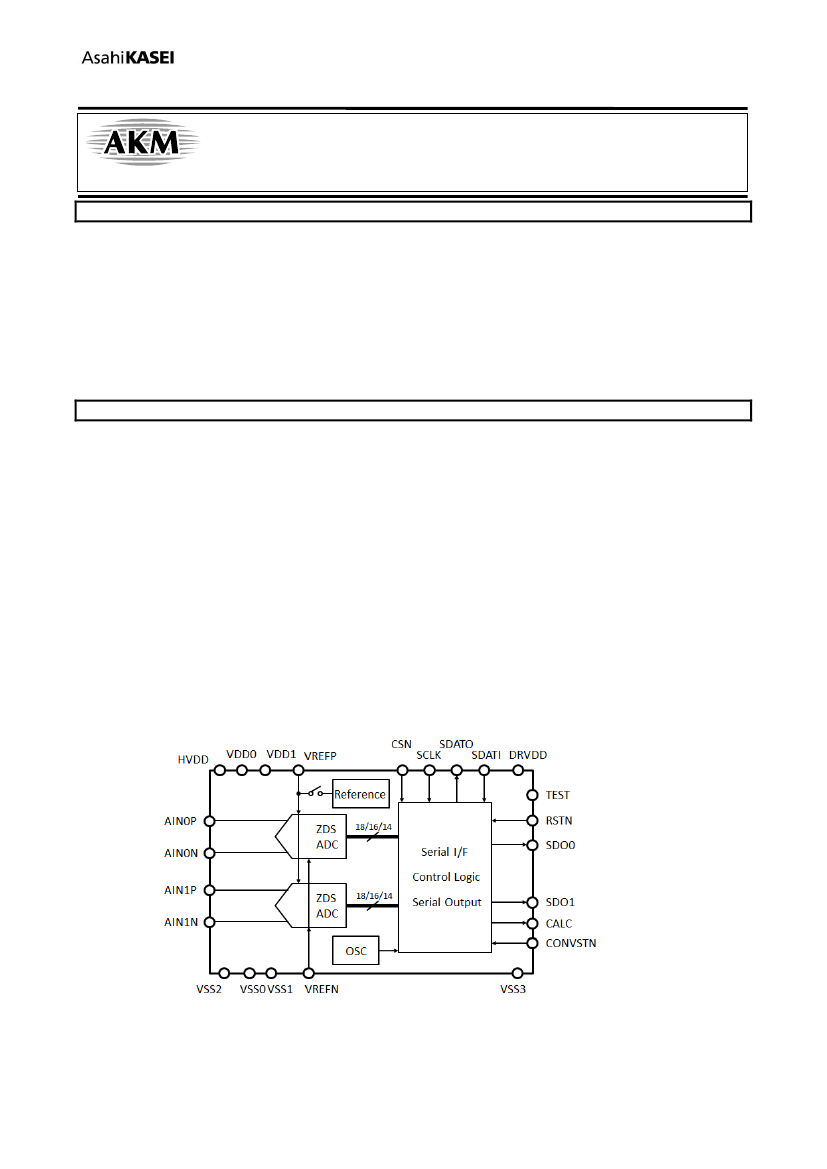

Figure 1. Block Diagram
