FEATURES

■

LT5558

600MHz to 1100MHz

High Linearity Direct

Quadrature Modulator

DESCRIPTION

The LT

5558 is a direct I/Q modulator designed for high

performance wireless applications, including wireless

infrastructure. It allows direct modulation of an RF signal

using differential baseband I and Q signals. It supports

GSM, EDGE, CDMA, CDMA2000, and other systems. It

may also be conﬁgured as an image reject upconverting

mixer, by applying 90° phase-shifted signals to the I and

Q inputs. The high impedance I/Q baseband inputs consist

of voltage-to-current converters that in turn drive double-

balanced mixers. The outputs of these mixers are summed

and applied to an on-chip RF transformer, which converts

the differential mixer signals to a 50Ω single-ended output.

The balanced I and Q baseband input ports are intended

for DC coupling from a source with a common-mode

voltage level of about 2.1V. The LO path consists of an LO

buffer with single-ended input, and precision quadrature

generators which produce the LO drive for the mixers.

The supply voltage range is 4.5V to 5.25V.

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners.

■

Direct Conversion from Baseband to RF

High OIP3: + 22.4dBm at 900MHz

Low Output Noise Floor at 20MHz Offset:

No RF: –158dBm/Hz

OUT

= 4dBm: –152.7dBm/Hz

Low Carrier Leakage: –43.7dBm at 900MHz

High Image Rejection: –49dBc at 900MHz

3 Channel CDMA2000 ACPR: –70.4dBc at 900MHz

Integrated LO Buffer and LO Quadrature Phase

Generator

50Ω AC-Coupled Single-ended LO and RF Ports

High Impedance Interface to Baseband Inputs

with 2.1V Common Mode Voltage

16-Lead QFN 4mm

4mm Package

APPLICATIONS

■

RFID Single-Sideband Transmitters

Infrastructure T

for Cellular and ISM Bands

Image Reject Up-Converters for Cellular Bands

Low-Noise Variable Phase-Shifter for 600MHz to

1100MHz Local Oscillator Signals

Microwave Links

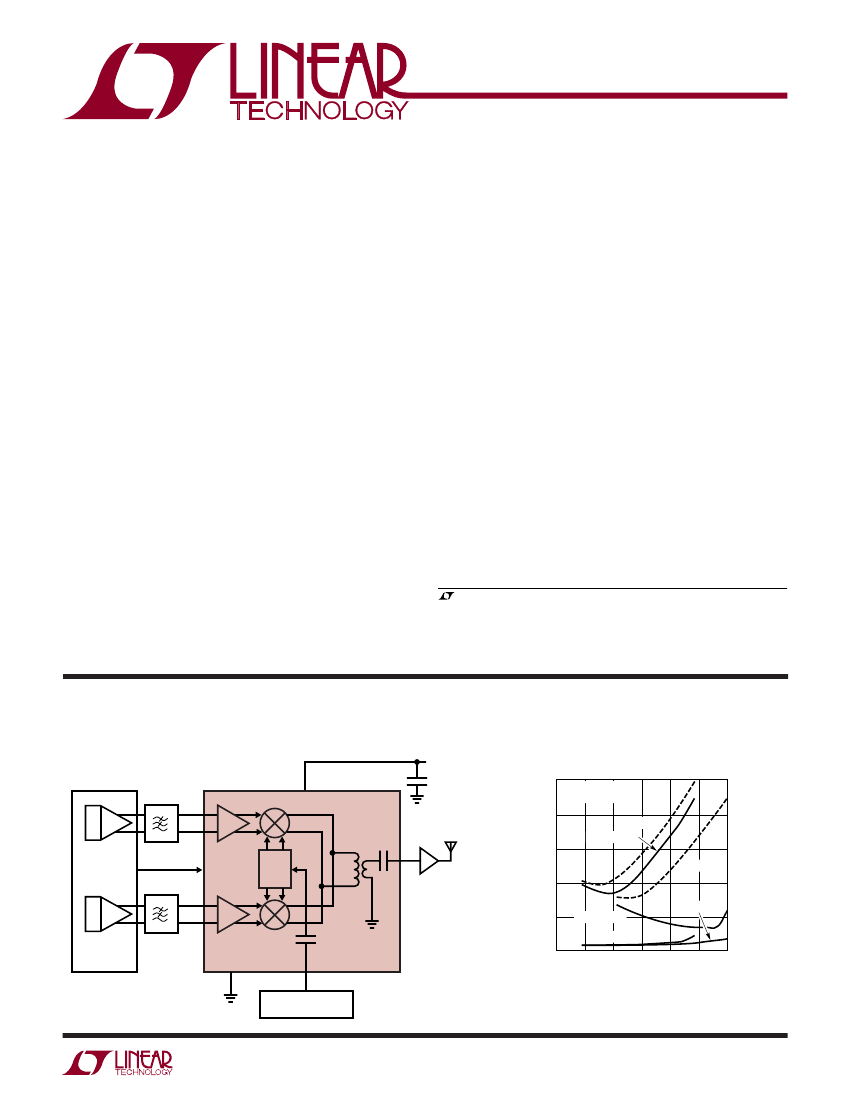

TYPICAL APPLICATION

600MHz to 1100MHz Direct Conversion Transmitter Application

8, 13

IDAC

V-1

I-CH

90°

QDAC

Q-CH

V-1

BALUN

O°

LT5558

ACPR, ALTCPR (dBc)

CDMA2000 ACPR, AltCPR and Noise vs

RF Output Power at 900MHz for 1 and 3 Carriers

–40

DOWNLINK TEST

MODEL 64 DPCH

3-CH ACPR

3-CH ALTCPR

–60

1-CH ACPR

–70

1-CH NOISE

–80

1-CH ALTCPR

3-CH NOISE

–150

–140

–130

–110

NOISE FLOOR AT 30MHz OFFSET (dBm/Hz)

2 x 100nF

∫

RF = 600MHz TO

1100MHz

–50

–120

∫

BASEBAND

GENERATOR

2, 4, 6, 9, 10,

12, 15, 17

VCO/SYNTHESIZER

5558 TA01

–90

–30

–20

–15

–10

–5

–25

RF OUTPUT POWER PER CARRIER (dBm)

5558 TA01b

–160

5558fa
