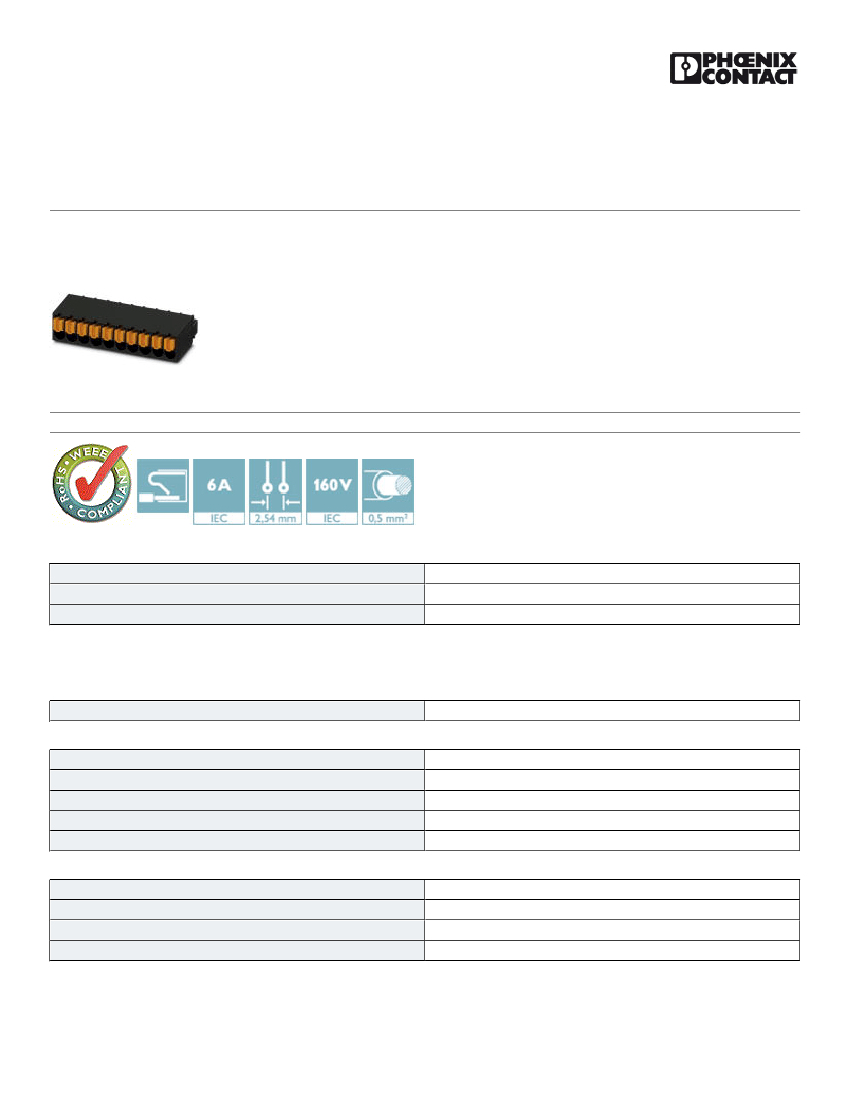

Printed-circuit board connector - FMC 0,5/ 8-ST-2,54 - 1821151
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 2.54 mm,
Connection method: Push-in spring connection, Color: black, Contact surface: Gold
The figure shows a 10-position
version of the product
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 STK
85366990
Germany
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
Dimensions
Length
Height
Width
Pitch
Dimension a
14 mm
5.35 mm
20.82 mm
2.54 mm
17.78 mm
General
Range of articles
Type of contact
Number of positions
Connection method
FMC 0,5/..-ST
Female connector
8
Push-in spring connection
08/26/2016 Page 1 / 7
https://www.phoenixcontact.com/us/products/1821151
Printed-circuit board connector - FMC 0,5/ 8-ST-2,54 - 1821151
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Insulating material
Flammability rating according to UL 94
Stripping length
IIIa
2.5 kV
2.5 kV
2.5 kV
32 V
160 V
160 V
EN-VDE
6A
0.5 mm²
LCP
V0
7 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
0.5 mm²
0.14 mm²
0.5 mm²
0.25 mm²
0.34 mm²
0.14 mm²
0.25 mm²
26
20
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Drawings
08/26/2016 Page 2 / 7
https://www.phoenixcontact.com/us/products/1821151
Printed-circuit board connector - FMC 0,5/ 8-ST-2,54 - 1821151

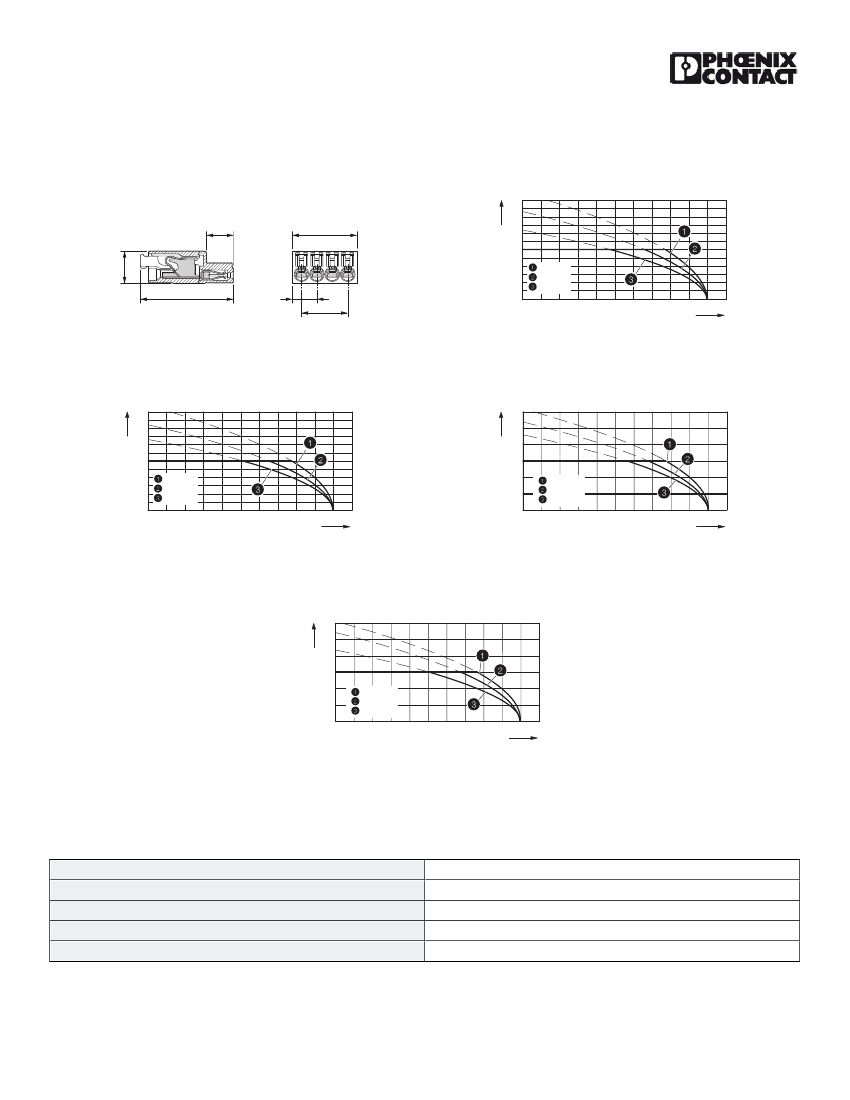

Dimensional drawing
Current strength [A]
Diagram
12
10
8
6
4
2
= 2-pos.
= 5-pos.
=16-pos.
0
20
40
60
80
100
4,4
a+3
5,4
15,4
1,5
2,54
a
0
Ambient temperature [°C]
Type: FMC 0,5/...-ST-2,54 with MC 0,5/...-G-2,54 P20 THR R..
Diagram
Current strength [A]
Operating current [A]
Diagram
12
10
8
6
4
2
0
= 2-pos.
= 5-pos.
= 16-pos.
0
10
20
30
40
50
60
70
80
90 100 110
12
10
8
6
4
2
0
0
20
40
60
80
100
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 16-pos.
Ambient temperature [°C]
Type: FMC 0,5/...-ST-2,54 with MCV 0,5/...-G-2,54 P20 THR R..
Type FMC 0,5/...-ST-2,54 with MCV 0,5/...-G-2,54 SMD R..
Diagram
Operating current [A]
12
10
8
6
4
2
0
0
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 16-pos.
Type: FMC 0,5/...-ST-2,54 with MC 0,5/...-G-2,54 SMD R..
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
27141109
27141109
27141190
27141190
27261101
08/26/2016 Page 3 / 7
https://www.phoenixcontact.com/us/products/1821151
Printed-circuit board connector - FMC 0,5/ 8-ST-2,54 - 1821151
Classifications
eCl@ss
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27440402
27440309
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
cULus Recognized / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / EAC
Ex Approvals
Approval details
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19920306
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-20
6A
150 V
C
26-20
6A
50 V
08/26/2016 Page 4 / 7
https://www.phoenixcontact.com/us/products/1821151
Printed-circuit board connector - FMC 0,5/ 8-ST-2,54 - 1821151
Approvals
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://www.vde.de 40042258
0.14-0.5
6A
160 V
IECEE CB Scheme
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ DE1-55663-B1
0.14-0.5
6A
160 V
EAC B.01742
Accessories
Accessories
Connector
Ferrule - A 0,25- 7 - 3202478
Ferrule, Length: 7 mm, Color: silver
Ferrule - A 0,34- 7 - 3009202
Ferrule, Length: 7 mm, Color: silver
Crimping tool
08/26/2016 Page 5 / 7
