1430-26-1-0500-001-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 1430-26-1-0500-001-1-TS

1430-26-1-0500-001-1-TS: DescriptionHOOK-UP STRND 26AWG 300V BLK 50'; CategoryWire/cable; File Size123KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

1430-26-1-0500-001-1-TS Overview

HOOK-UP STRND 26AWG 300V BLK 50'

1430-26-1-0500-001-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	26 AWG
Number of wire strands	7/0.0063"
conductor material	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (XLPVC), irradiated
Sheath (insulation) diameter	0.051"（1.30mm）
Sheath (insulation) thickness	0.015"（0.38mm）
length	50.00'（15.24m）
Voltage	300V
Operating temperature	-10°C ~ 105°C
Casing color	black
grade	UL Type 1430
characteristic	Oil resistant

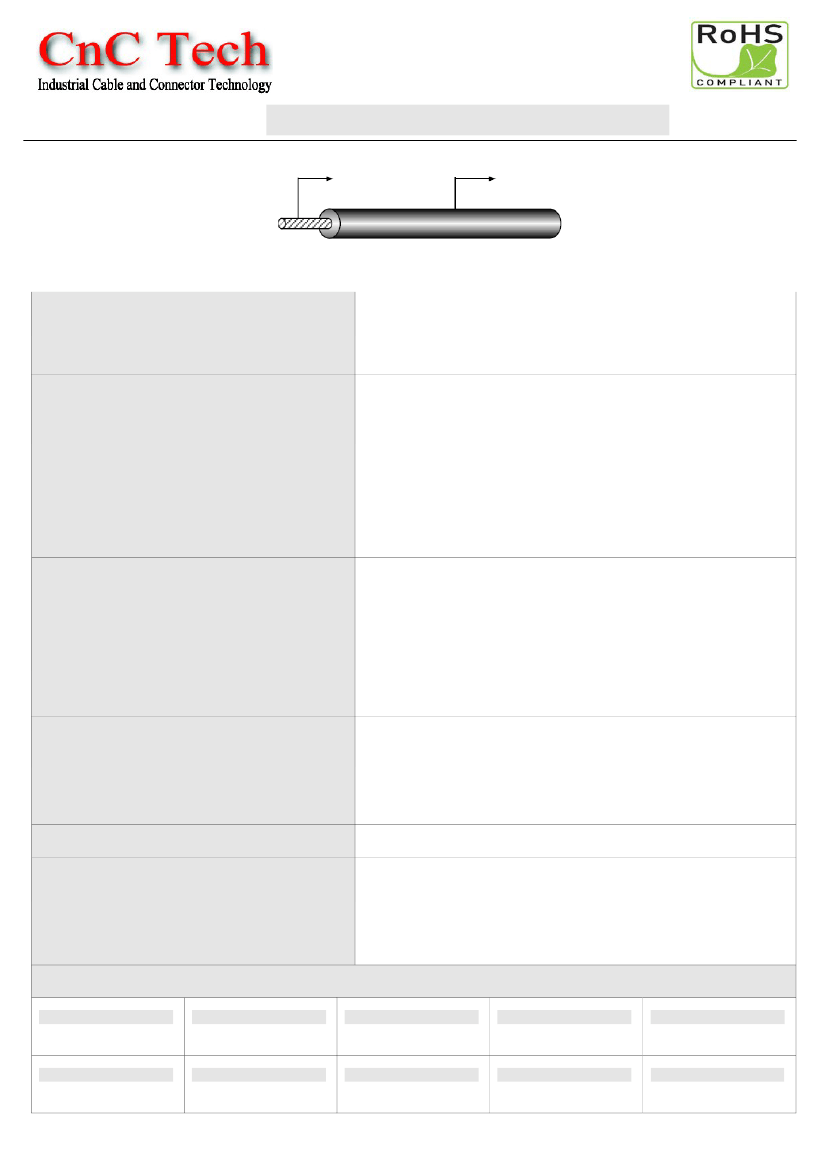

Preview

Download Datasheet

View All

P/N 1430-26-1-0500-0XX-1-TS

Conductor: Tinned Strands

Insulation: XLPVC

UL1430 XLPVCWire 105°C 300V (26AWG)

Tinned Strands, copper conductor, 7/0.160mm strands.

CONSTRUCTION:

Overall Diameter=1.30+/-0.10mm

Insulation Thickness: 0.38mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

AWG 1430 VW-1 105°C 300V E108485-S ( )AWG REI HSING

CSA AWM I A 105° 300V LL84687 ()AWG FT1 -F- LF

CERTIFICATION & APPROVALS:

PHYSICAL

ELECTRICAL PROPERTIES:

Rated Temperature: 105

℃

~ -10

℃

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min.

Flexibility: XLPVC Insulation

Maximum Conductor Resistance: 152 ohm/km

Resistant to: Oil, hot & cold, lighter, flexing.

XLPVC Wire, pass VW-1 flame test

APPLICATIONS:

Suitable for electric cookers, hair dryers, internal transformer coils,

air-conditioners, lights fixture, electric ovens etc.

PACKAGING:

ENVIRONMENTAL APPROVALS:

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC.

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

1430-26-1-0500-001-1-TS

1430-26-1-0500-002-1-TS

1430-26-1-0500-003-1-TS

1430-26-1-0500-004-1-TS

1430-26-1-0500-005-1-TS

BLACK

1430-26-1-0500-006-1-TS

WHITE

1430-26-1-0500-007-1-TS

YELLOW

1430-26-1-0500-008-1-TS

RED

1430-26-1-0500-010-1-TS

BLUE

1430-26-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

1430-26-1-0500-001-1-TS Related Products

	1430-26-1-0500-001-1-TS	1430-26-1-0500-002-1-TS	1430-26-1-0500-004-1-TS	1430-26-1-0500-007-1-TS	1430-26-1-0500-005-1-TS	1430-26-1-0500-003-1-TS	1430-26-1-0500-008-1-TS	1430-26-1-0500-006-1-TS	1430-26-1-0500-010-1-TS	1430-26-1-0500-011-1-TS
Description	HOOK-UP STRND 26AWG 300V BLK 50'	HOOK-UP STRND 26AWG 300V WHT 50'	HOOK-UP STRND 26AWG 300V RED 50'	HOOK-UP STRND 26AWG 300V GRN 50'	HOOK-UP STRND 26AWG 300V BLU 50'	HOOK-UP STRND 26AWG 300V YEL 50'	HOOK-UP STRND 26AWG 300V ORG 50'	HOOK-UP STRND 26AWG 300V BRN 50'	HOOK-UP STRND 26AWG VIOLET 50'	HOOK-UP STRND 26AWG GRN/YEL 50'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Number of wire strands	7/0.0063"	7/0.0063"	7/0.0063"	7/0.0063"	7/0.0063"	7/0.0063"	7/0.0063"	7/0.0063"	7/0.0063"	7/0.0063"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated	Polyvinyl chloride (XLPVC), irradiated
Sheath (insulation) diameter	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）	0.051"（1.30mm）
Sheath (insulation) thickness	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）
length	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C
Casing color	black	White	red	green	blue	yellow	orange color	brown	Purple	green,yellow
grade	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430	UL Type 1430
characteristic	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant
