50001-1348E datasheet, PDF - EEWORLD Datasheet

50001-1348E: Description3 ROW R/A RECEPTACLE 1GP; CategoryThe connector; File Size145KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

50001-1348E Overview

3 ROW R/A RECEPTACLE 1GP

Parameter Name	Attribute value
Connector usage	-
Connector type	socket, female socket
Connector style	High Density (HDC, HDI, HPC)
Number of pins	348
Number of pins loaded	all
spacing	0.100"（2.54mm）
Number of rows	3
Number of columns	-
Installation type	Through hole, right angle
Termination	welding
Contact layout (typical)	-
characteristic	Mating guide rail mold slot
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
color	-
Rated current	-
Material flammability rating	-
Operating temperature	-
Rated voltage	-

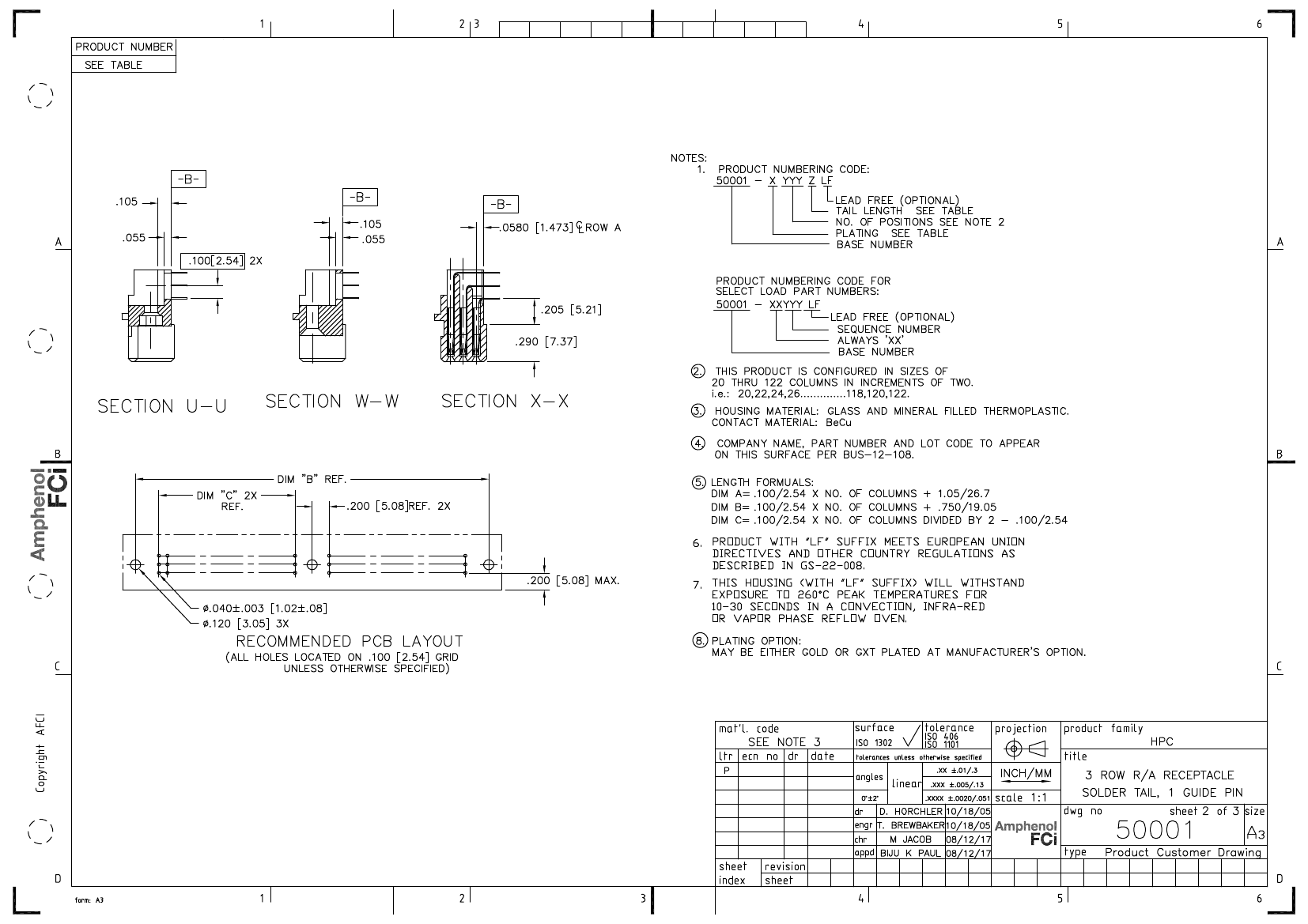

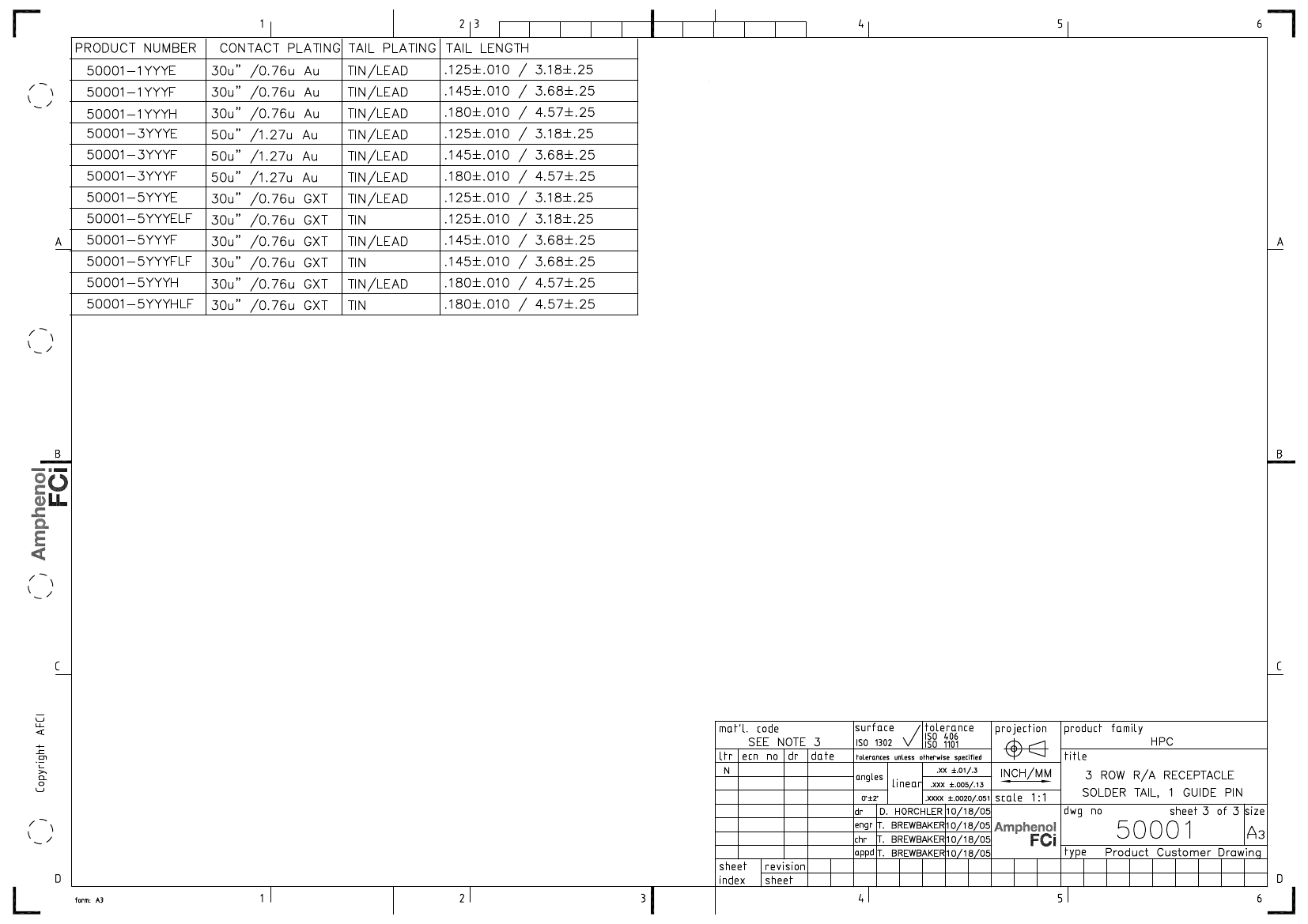

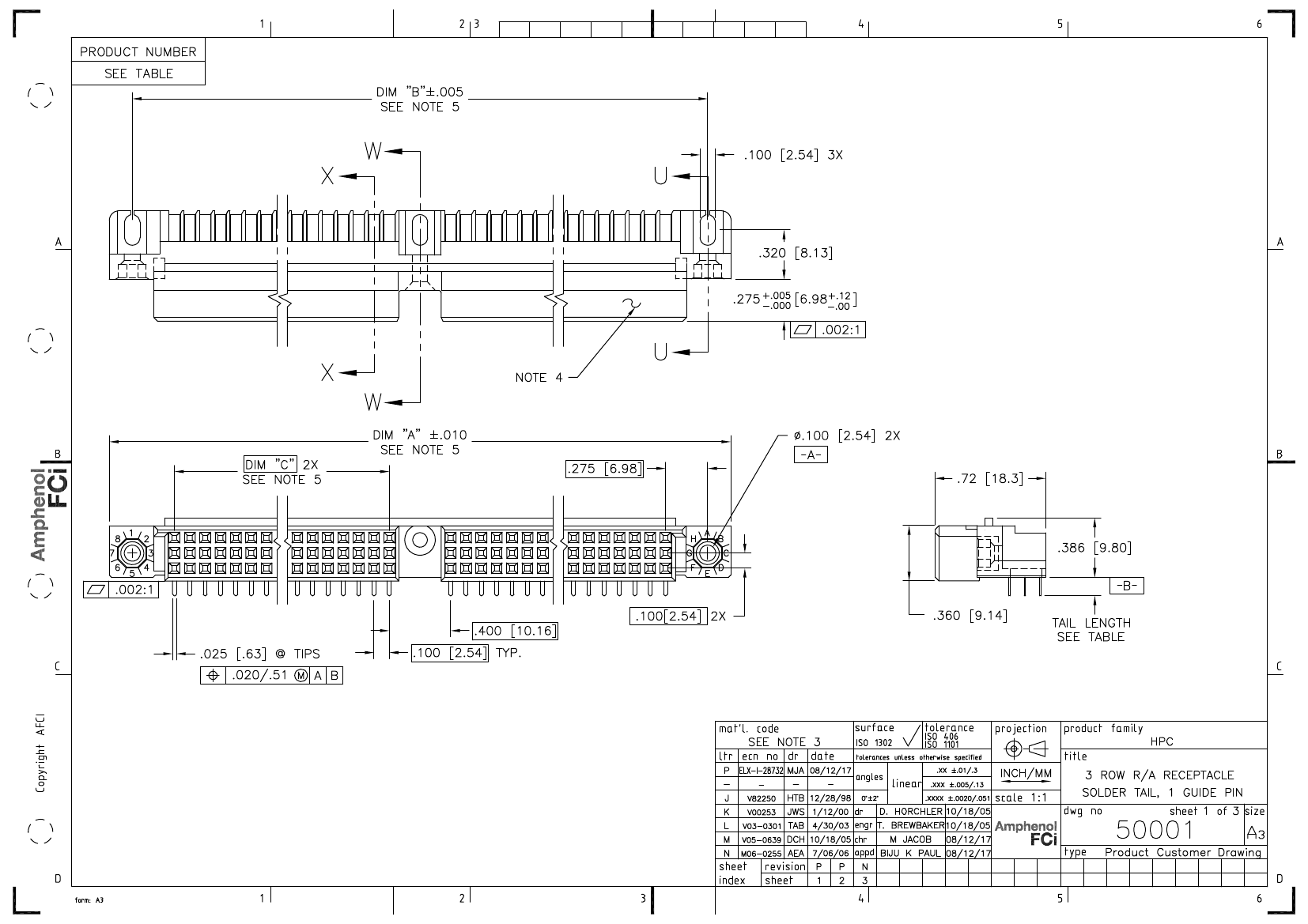

PDS: Rev :P

STATUS:Released

Printed: Dec 08, 2017

	50001-1348E	50001-1300E	50001-5348ELF	50001-1240ELF	50001-1348ELF	50001-1300ELF
Description	3 ROW R/A RECEPTACLE 1GP	3 ROW R/A RECEPTACLE 1GP	3R RA RECSTB 1GP	3 ROW R/A RECEPTACLE 1GP	CONN RECEPT 3 ROW RA SLDR 1GP	CONN RECEPT 3 ROW RA SLDR 1GP
Connector type	socket, female socket	socket, female socket	socket, female socket	socket, female socket	socket, female socket	socket, female socket
Connector style	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)
Number of pins	348	300	348	240	348	300
Number of pins loaded	all	all	all	all	all	all
spacing	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Number of rows	3	3	3	3	3	3
Installation type	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle
Termination	welding	welding	welding	welding	welding	welding
characteristic	Mating guide rail mold slot	Mating guide rail mold slot	Mating guide rail mold slot	Mating guide rail mold slot	Mating guide rail mold slot	Mating guide rail mold slot
Contact plating	gold	gold	Gold or Gold, GXT™	gold	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）
