POC-W152C
15.6" Widescreen Point-of-Care Terminal
Features
Runs on an Intel
®
Bay Trail J1900 processor with a fanless, high performance
profile
15.6" HD resolution with edge-to-edge and bezel-less design
USB 3.0 and PCIe(x1) expansion slot, mini PCIe slot x 1
Offers a multi-touch option to deliver a truly unmatched touchscreen
experience
IP43 enclosure to protect against dust and water splashing for ease of cleaning
Isolated design provides unique electric leakage protection for COM ports,
LAN ports, and optional USB port
Optional Bluetooth, RFID, inner WLAN module, Li-ion battery pack, and
auto-focus 5MP camera
Specifications
Computing System
CPU
Memory
Graphics Controller
Operating System
Display Size
Type
Max Resolution
Max. Colors
Pixel Pitch (mm)
Viewing Angle
Luminance
Backlight
Contrast Ratio
Mini PCIe
mSATA
PCIe
HDD
Serial Ports
USB Ports
I/O Ports
HDMI
VGA Port
LAN
Audio
AC Model
Input Voltage
Output Voltage
UPS Battery
WLAN
Bluetooth
Smart Card Reader
RFID
Web cam
Type
Light transmission
Controller
Surface
Front Panel
Entire Panel
Temperature
Humidity
Shock Resistance
Dimensions (W x H x D)
Weight
Intel
®
Bay Trail J1900 Processor
Up to 8GB DDR3L 1600MHz
Intel HD Graphics
Windows 7, Windows 8 Embedded Standard, Windows 8 Industry Pro, Windows 10
15.6" TFT LCD (16:9)
VA
1366 x 768
16.7 M colors (6-bits+A-FRC)
0.252 x 0.252
160°/160°
300 cd/m
2
LCD
500:1
1 x mini PCIe (half-size)
(optional)
1 x PCIe (x1)
1 x 2.5" SATA , Support 5V/12V, Height up to 9.5mm, Easy installation
1 x RS-232/422/485 serial port
2 x USB 3.0 ports
3 x USB 2.0 ports
1 x HDMI
1 x VGA
1 x Gigabit Ethernet (RJ45 isolation)
2 x speakers (2 W)
External Power Adapter
100 ~ 240 V
AC
, 1.2 ~ 0.5 A, 47 ~ 63 Hz
+18 V
DC
, 5.55 A max. (100 watts)
3S2P 4200mAH, supports at least 0.5 hr backup operation
Integrated wireless 802.11 a/b/g/n
Bluetooth 4.0
Complies with ISO7816-1,2,3,T=1 and T=0 protocol
Passive RFID / Active RFID
2MP Camera / 5MP Camera
P-cap Multi-touch or Res TS , True Flat Design
P-cap 90%; Res. TS 75%
USB interface
P-cap. AR /Res. AG
IP65
IP43
CE, FCC Class B, UL60601-1, EN60601-1 approved
0 ~ 40° C (Operating);-20 ~ 60° C (Storage/Transportation)
10 ~ 90% @ 40° C (Non-condensing) (Operating), 5 ~ 90% (Storage/Transportation)
20G peak acceleration (11ms duration)
405.53 x 274 x 60.82 mm
4.65 Kg (10.25 lb)
Display
Expansion Slot
Storage
Power Supply
Optional Function
Touch Screen
IP Rating
Certification
Environment
Physical Characteristics
All product specifications are subject to change without notice.
Last updated: 13-Sep-2017

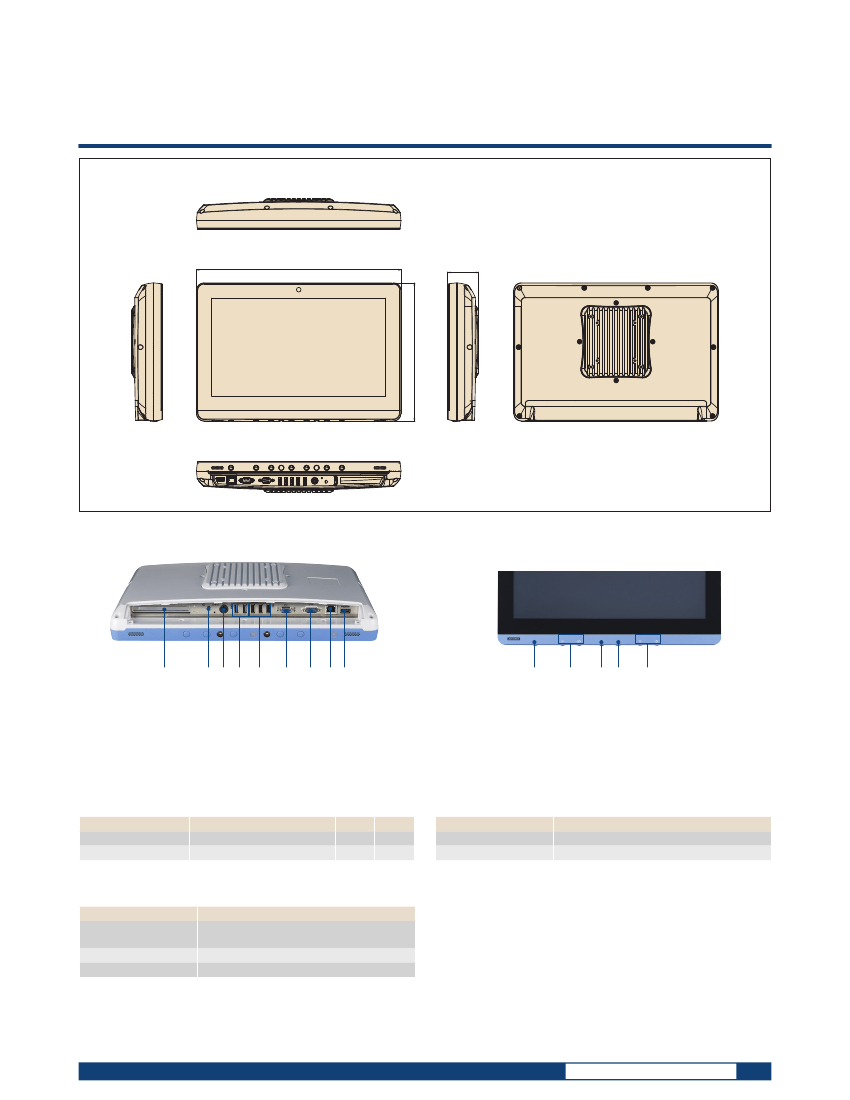

POC-W152C
Dimensions
Unit: mm
405.53
60.82
View area
274
I/O Ports
Function Keys
1
2 3
4
5
6
7
8 9
1
2
3
4
5
1. PCIe (x4) card slot
2. Equipotential Terminal Pin
3. Power DC-in
4. 2 x USB 3.0 ports
5. 3 x USB 2.0 ports
6. VGA port
7. COM port
8. Gigabit Ethernet Interfaces (RJ-45)
9. HDMI-out port
1. Power
2. Volume Down/Up
3. Touchscreen Status Control
4. Read Light control
5. Brightness Decrease/Increase
Ordering Information
Part Number
POC-W152-C11D-ACE
POC-W152-C11D-ATE
Description
POC-152 bare w/J1900/P-cap
POC-152 bare w/J1900/Res.
HDD
-
-
RAM
4G
4G
Option Modules
Part Number
POC-W152-BTTE
POC-W152-WF0E
Description
Battery module (4200mAh Li-ion battery)
802.11 ac/a/b/g/n + Bluetooth 4.1
Accessories
Part Number
PDC-W215-Stand-H1E
(black, 2-8kg)
1702002600
1702002605
Description
PDC-W215 STAND_H1-741 type_2~8kg Black
Power Cable (USA) 1.8 M
Power Cable (Europe) 1.8 M
Online Download
www.advantech.com/products
