35313-0210 datasheet, PDF - EEWORLD Datasheet

35313-0210: DescriptionCONN HEADER 2POS 3.96MM VERT TIN; CategoryThe connector; File Size63KB，1 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

35313-0210 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35313-0210	-	-	View	Buy Now

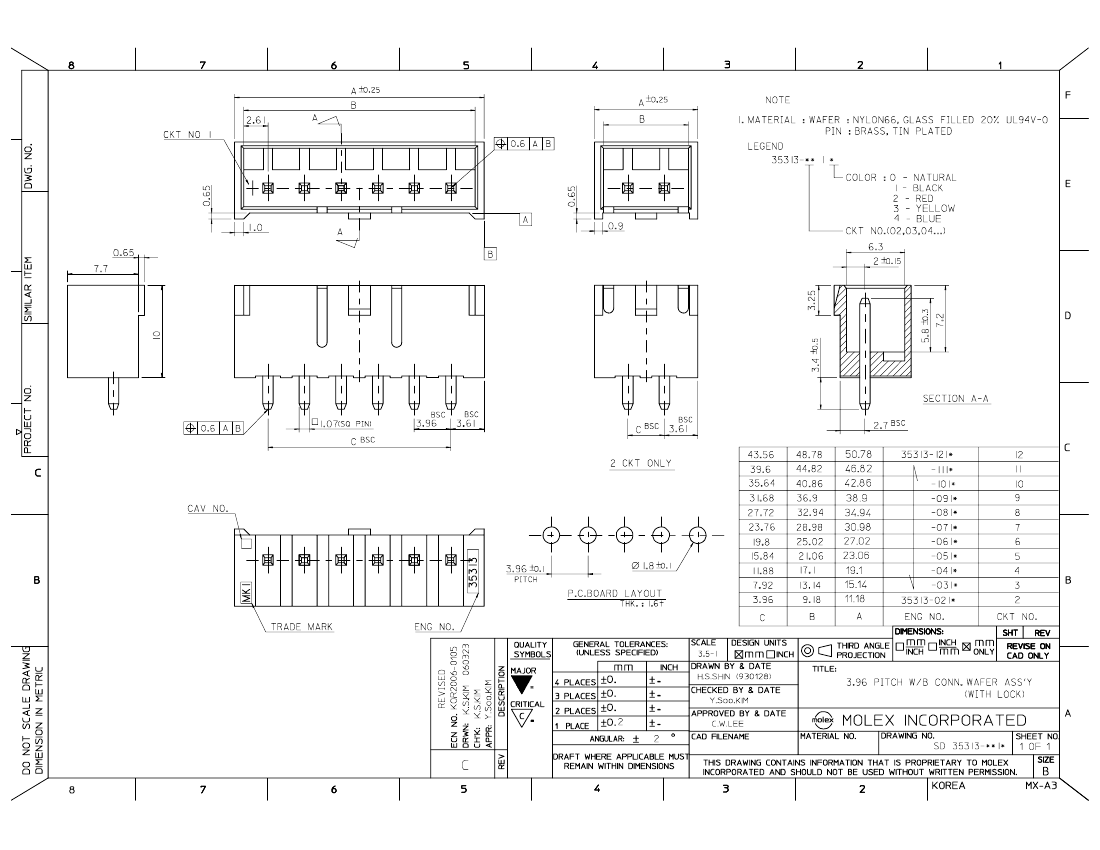

CONN HEADER 2POS 3.96MM VERT TIN

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.156"（3.96mm）
Number of pins	2
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole
Termination	welding
Fastening type	Lock pin slide
Contact Length - Mating	0.228"（5.80mm）
Contact length - terminal	0.134"（3.40mm）
Overall contact length	-
Insulation height	0.394"（10.00mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polyamide (PA66), Nylon 66, fiberglass reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	natural
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

	35313-0210	35313-1010
Description	CONN HEADER 2POS 3.96MM VERT TIN	CONN HEADER 10POS 3.96MM STR TIN
Connector type	Connector	Connector
Contact type	Male pin	Male pin
Spacing - Mating	0.156"（3.96mm）	0.156"（3.96mm）
Number of pins	2	10
Number of rows	1	1
Number of pins loaded	all	all
style	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls
Installation type	Through hole	Through hole
Termination	welding	welding
Fastening type	Lock pin slide	Lock pin slide
Contact Length - Mating	0.228"（5.80mm）	0.228"（5.80mm）
Contact length - terminal	0.134"（3.40mm）	0.134"（3.40mm）
Insulation height	0.394"（10.00mm）	0.394"（10.00mm）
Contact shape	Square	Square
Contact surface treatment - mating	tin	tin
Contact Surface Preparation - Column	tin	tin
Contact material	brass	brass
Insulation Materials	Polyamide (PA66), Nylon 66, fiberglass reinforced	Polyamide (PA66), Nylon 66, fiberglass reinforced
Material flammability rating	UL94 V-0	UL94 V-0
Insulation color	natural	natural
