39-27-4027 datasheet, PDF - EEWORLD Datasheet

39-27-4027: DescriptionCONN HEADER MICROSHUNT 2POS TIN; CategoryThe connector; File Size197KB，1 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

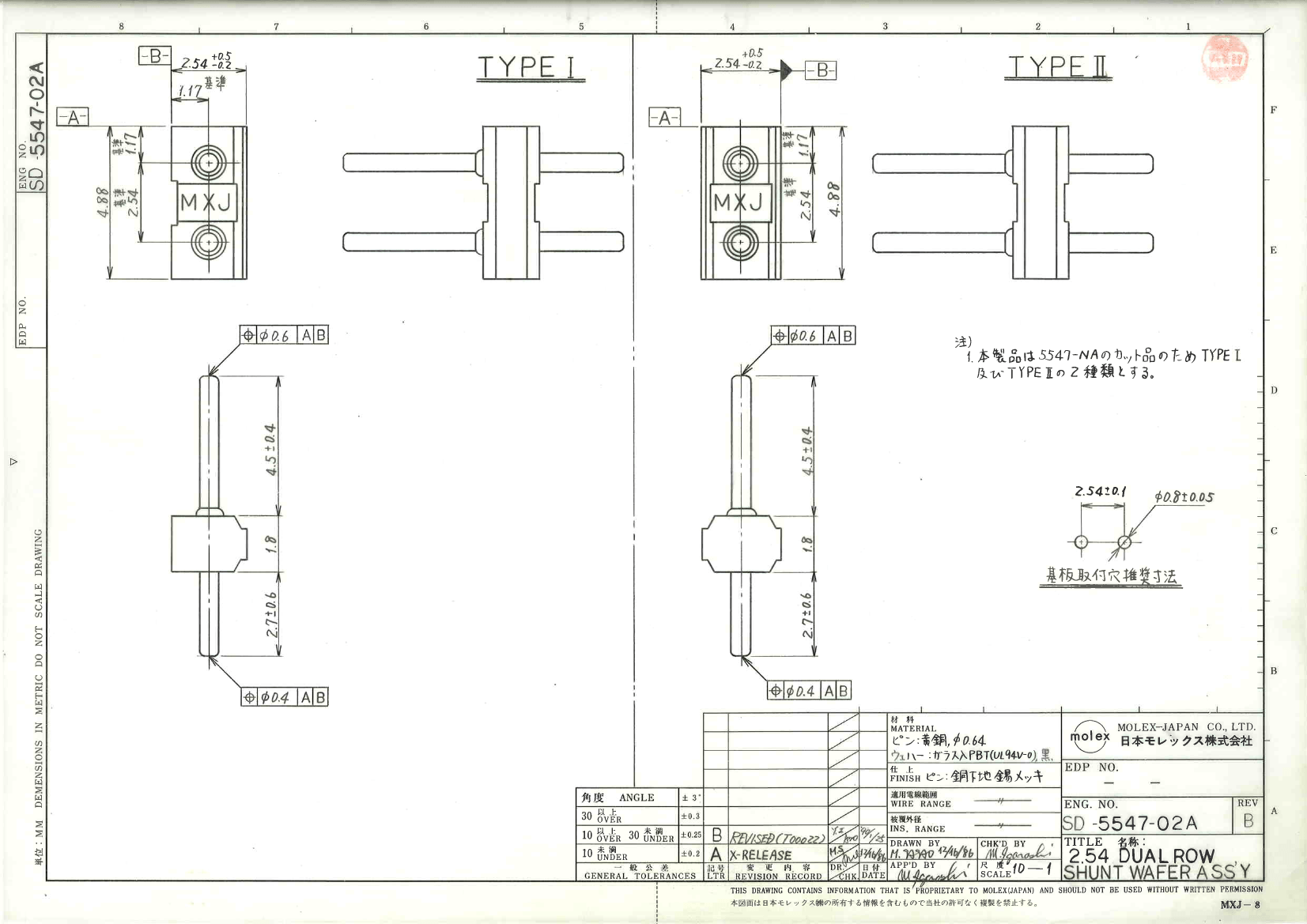

39-27-4027 Overview

CONN HEADER MICROSHUNT 2POS TIN

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	-
Number of pins	2
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.177"（4.50mm）
Contact length - terminal	0.106"（2.69mm）
Overall contact length	0.354"（9.00mm）
Insulation height	0.071"（1.80mm）
Contact shape	round
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	tin
Contact material	-
Insulation Materials	Polybutylene terephthalate (PBT)
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

	39-27-4027
Description	CONN HEADER MICROSHUNT 2POS TIN
Connector type	Connector
Contact type	Male pin
Number of pins	2
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.177"（4.50mm）
Contact length - terminal	0.106"（2.69mm）
Overall contact length	0.354"（9.00mm）
Insulation height	0.071"（1.80mm）
Contact shape	round
Contact surface treatment - mating	tin
Contact Surface Preparation - Column	tin
Insulation Materials	Polybutylene terephthalate (PBT)
Material flammability rating	UL94 V-0
Insulation color	black
