7339: DescriptionCONN TERM LUG RING FLAT; CategoryThe connector terminals; File Size90KB，1 Pages; ManufacturerKeystone Electronics

Download Datasheet Parametric Compare View All

7339 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7339	-	-	View	Buy Now

7339 Overview

CONN TERM LUG RING FLAT

7339 Parametric

Parameter Name	Attribute value
Maker	Keystone Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	WIRE TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

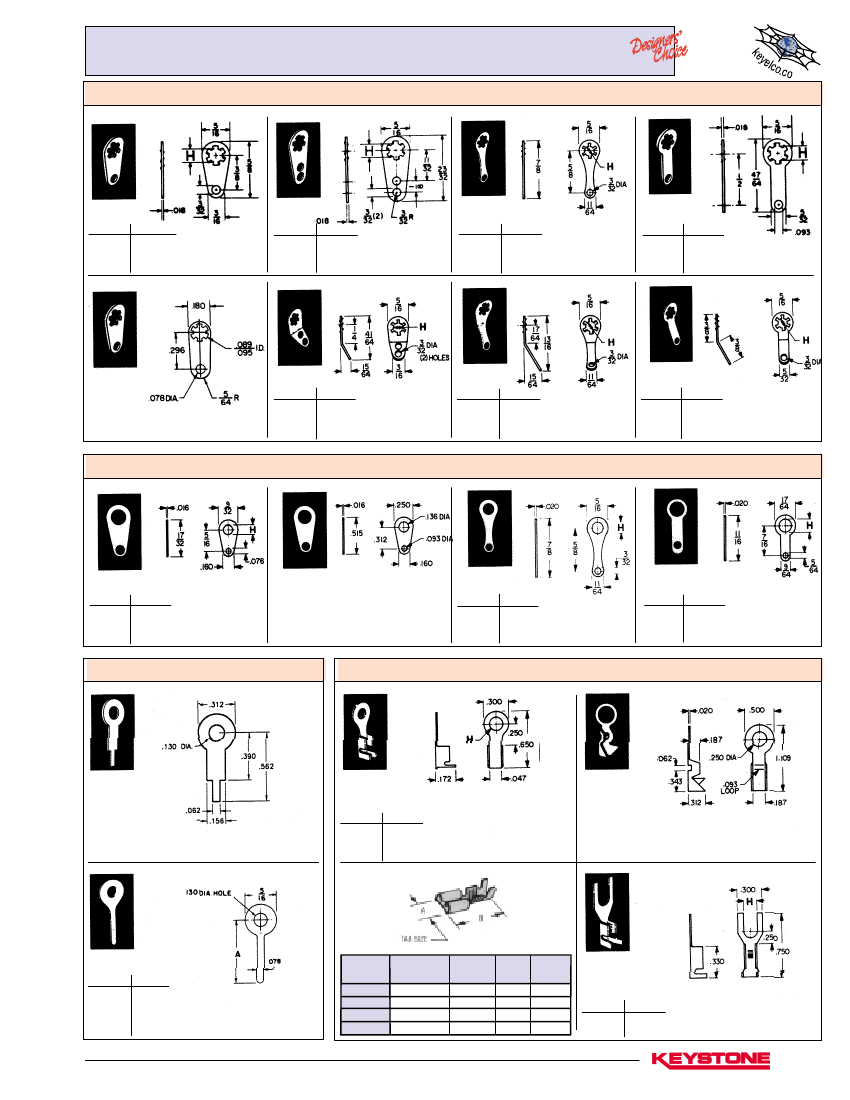

LUGS & TERMINALS

LOCKWASHER TERMINAL LUGS

m

CAT. NO.

908

914

915

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.018 Brass, Tin Plate

CAT. NO.

910

918

906

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.018 Brass, Tin Plate

CAT. NO.

903

904

905

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.018 Brass, Tin Plate

CAT. NO.

909

916

917

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.018 Brass, Tin Plate

CAT. NO. 907

MATERIAL

.013 Brass, Tin Plate

CAT. NO.

7311

7312

7313

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.018 Brass, Tin Plate

CAT. NO.

7317

7318

7319

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.018 Brass, Tin Plate

CAT. NO.

7314

7315

7316

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.018 Brass, Tin Plate

SOLDER TERMINAL LUGS

CAT. NO.

7328

7329

7330

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.015 Brass, Tin Plate

CAT. NO. 4004

MATERIAL

.016 Brass, Tin Plate

CAT. NO.

7331

7332

7333

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.020 Brass, Tin Plate

CAT. NO.

7325

7326

7327

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL

.020 Brass, Tin Plate

TERMINAL LUGS

CRIMP TERMINAL LUGS

CAT. NO. 680

MATERIAL:

.015 Brass, Tin Plate

CAT. NO.

1274

1275

1276

"H" DIM

.120 (#4)

.140 (#6)

.171 (#8)

MATERIAL:

.020 Brass, Tin Plate

CAT. NO. 7339

MATERIAL:

.020 Copper, Tin Plate

QUICK-FIT FEMALES

MATERIAL:

Tinned Brass

CAT. NO.

4000

4001

4002

4003

"A" DIM

.500

.562

.750

1.000

MATERIAL:

.020 Brass, Tin Plate

CAT

.NO.

1252

1264

4469

4470

"A" DIM

"B" DIM

TAB SIZE LENGTH

.110 X .020 .640

.187 X .020 .576

.205 X .020 .640

.250 X .032 .750

AWG

SIZE

18-22

16-22

16-20

MAT'L

THICK

.010

.013

.016

CAT. NO.

1278

1279

"H" DIM

.140 (#6)

.171 (#8)

MATERIAL:

.020 Brass, Tin Plate

31-07 20th Road

•

Astoria, New York 11105-2017

•

(718) 956-8900

•

FAX (718) 956-9040

e-mail: kec@keyelco.com

•

WebSite: keyelco.com

77
