TPSMA36AHE3/5AT datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> TPSMA36AHE3/5AT

TPSMA36AHE3/5AT: DescriptionTVS DIODE 30.8V 49.9V DO214AC; CategoryDiscrete semiconductor diode; File Size85KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

TPSMA36AHE3/5AT Overview

TVS DIODE 30.8V 49.9V DO214AC

TPSMA36AHE3/5AT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY
Maximum breakdown voltage	37.8 V
Minimum breakdown voltage	34.2 V
Breakdown voltage nominal value	36 V
Maximum clamping voltage	49.9 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	185 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	30.8 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

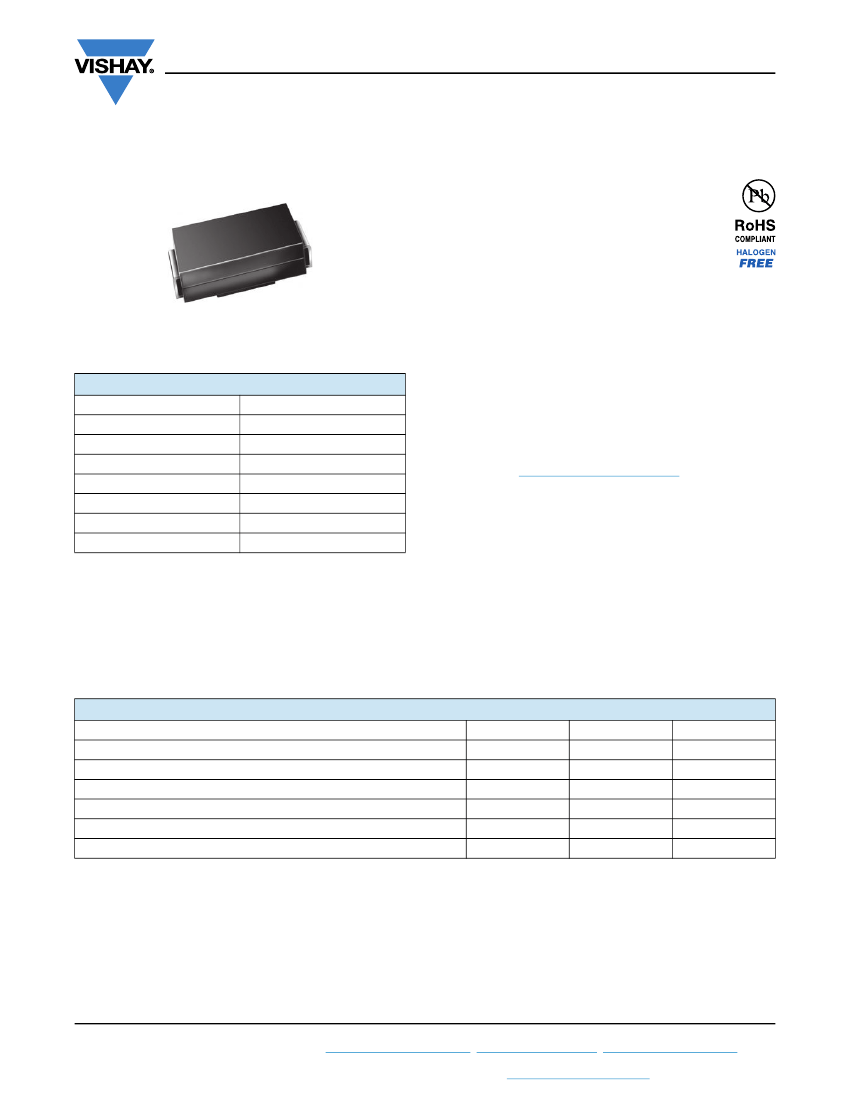

TPSMA6.8A thru TPSMA43A

www.vishay.com

Vishay General Semiconductor

Surface Mount PAR

Transient Voltage Suppressors

High Temperature Stability and High Reliability Conditions

FEATURES

• Junction

passivation

optimized

design

passivated anisotropic rectifier technology

• T

= 185 °C capability suitable for high reliability

and automotive requirement

• Available in uni-directional polarity only

Available

• 400 W peak pulse power capability with a 10/1000 μs

waveform, repetitive rate (duty cycle): 0.01 %

SMA

(DO-214AC)

• Excellent clamping capability

• Very fast response time

• Low incremental surge resistance

PRIMARY CHARACTERISTICS

PPM

FSM

max.

Polarity

Package

5.8 V to 36.8 V

6.8 V to 43 V

400 W

1.0 W

40 A

185 °C

Uni-directional

SMA (DO-214AC)

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• AEC-Q101 qualified available

- Automotive ordering code: base P/NHE3 or P/NHM3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

MECHANICAL DATA

Case:

SMA (DO-214AC)

Molding compound meets UL 94 V-0 flammability rating

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

Base P/NHM3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B, ...)

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

HE3 and HM3 suffix meets JESD 201 class 2 whisker test

Polarity:

color band denotes cathode end

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and lightning

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, automotive, and telecommunication.

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak power dissipation with a 10/1000 μs waveform

(1)(2)

(fig. 3)

Peak power pulse current with a 10/1000 μs waveform

(1)

(fig. 1)

Power dissipation at T

= 25 °C

(4)

Peak forward surge current 8.3 ms single half sine-wave

(3)

Maximum instantaneous forward voltage at 25 A

(3)

Operating junction and storage temperature range

SYMBOL

PPM

FSM

, T

STG

VALUE

400

See next table

1.0

3.5

-65 to +185

UNIT

°C

Notes

(1)

Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2

(2)

Mounted on PCB with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pads attached to each terminal

(3)

Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minutes maximum

(4)

Mounted on minimum recommended pad layout

Revision: 11-Jul-17

Document Number: 88405

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17
