319-00600 Overview

3:1 HEATSHRINK 1M

319-00600 Parametric

Parameter Name	Attribute value
type	sleeve, elastic
Shrinkage	3 to 1
length	3.28'（1.00m）
Inner diameter (factory)	0.236"（5.99mm）
Inner diameter - after recovery	0.080"（2.03mm）
Wall thickness after restoration	0.027"（0.69mm）
Material	Polyolefin (PO)
characteristic	Non-corrosive, self-extinguishing
color	black
Operating temperature	-55°C ~ 125°C
Shrinkage temperature	90°C

Preview

Download Datasheet

View All

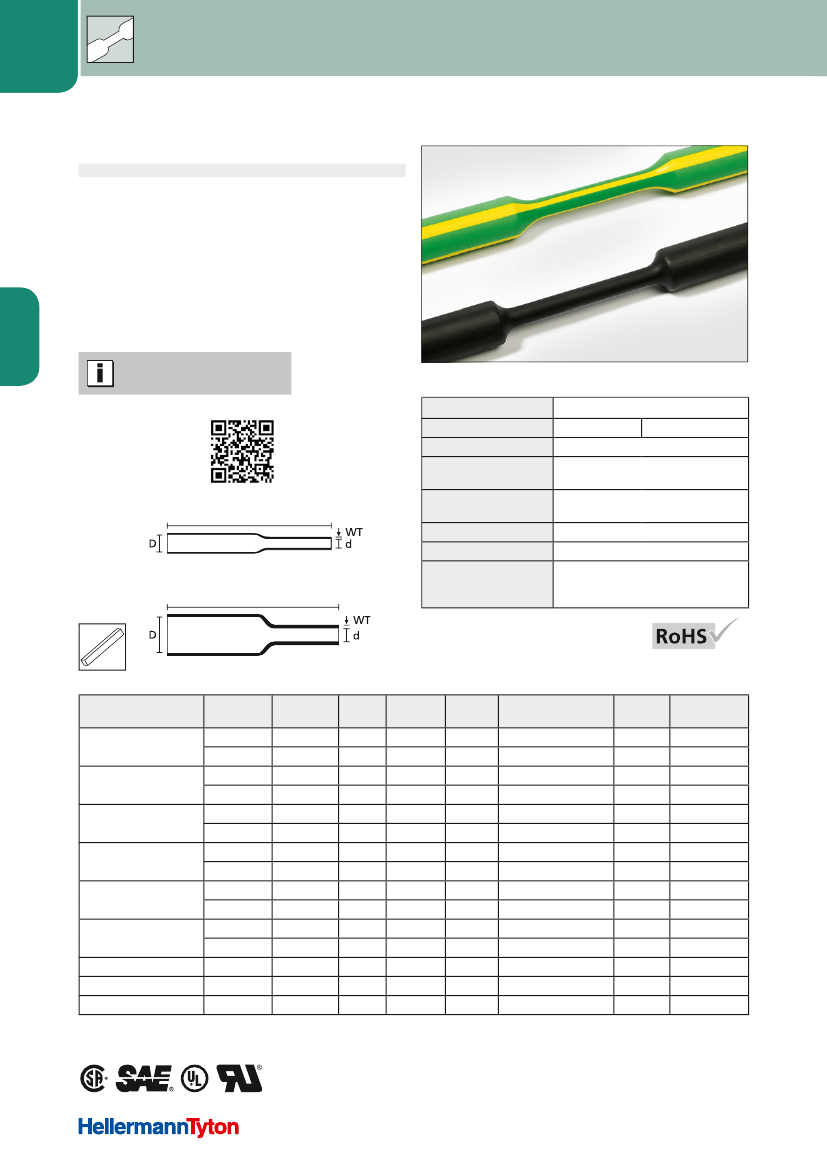

2.1

Insulation

Heat Shrinkable Tubing

Heat Shrinkable Tubing up to 3:1 - 1 m lengths

TREDUX thin wall

TREDUX thin wall heat shrink tubing is used for general electrical

insulation and mechanical protection of cables and wires.

Features and Beneﬁts

• Thin walled, ﬂexible, cross-linked polyoleﬁn tubing

• 1m shrink tubing lengths delivered in handy display carton

• 9 sizes from 1.5 mm to 101.6 mm

• Colours: black and yellow/green

More colours on request.

Please contact us!

TREDUX shrinks a maximum of 3:1.

MATERIAL

Shrink Ratio

Operating Temperature

Minimum Shrink

Temperature

One Step to the Web!

Polyoleﬁn, cross-linked (PO-X)

2:1

-55 °C to +135 °C

+100 °C

+/-5 % max.

20 kV/mm according to ASTM D 150

UL224 VW-1

CSA, SAE - AMS - DTL-23053/5 Class 1

and 3, SAE - AMS - DTL-23053/5 Class 2

(clear), UL224 125 °C 600V VW-1

3:1

Longitudinal change

after shrinkage

Dielectric Strength

Flammability

Heat Shrinkable Tubing 2:1

Speciﬁcations

Heat Shrinkable Tubing 3:1

TYPE

TREDUX-1.5/0.5

TREDUX-3/1

TREDUX-6/2

TREDUX-12/4

TREDUX-24/8

TREDUX-38.1/19.1

TREDUX-50.8/25.4

TREDUX-76.2/38.1

TREDUX-101.6/50.8

Supplied

Ø D min.

1.5

3.0

6.0

12.0

24.0

38.1

50.8

76.2

101.6

Recov.

Ø d max.

0.5

1.0

2.0

4.0

8.0

19.1

25.4

38.1

50.8

Wall

(WT)

0.50

0.60

0.70

0.85

1.20

1.02

1.14

1.27

1.40

Length

(L)

1.0 m

Pack

Cont.

20 pcs.

15 pcs.

10 pcs.

5 pcs.

6 pcs.

3 pcs.

2 pcs.

Colour

Black (BK)

Green-Yellow (GNYE)

Black (BK)

Green-Yellow (GNYE)

Black (BK)

Green-Yellow (GNYE)

Black (BK)

Green-Yellow (GNYE)

Black (BK)

Green-Yellow (GNYE)

Black (BK)

Green-Yellow (GNYE)

Black (BK)

Shrink

Ratio

3:1

2:1

Article-No.

319-00150

319-00157

319-00300

319-00307

319-00600

319-00607

319-01200

319-01207

319-02400

319-02407

319-03800

319-03807

319-05100

319-07600

319-10200

Date of issue: April 2016

All dimensions in mm. Subject to technical changes.

Minimum Order Quantity (MOQ) may differ from package content.

For product speciﬁc approvals and speciﬁcations please refer to the Appendix.

200

Further information at

www.HellermannTyton.co.uk/insulation
