1N4003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N4003

1N4003: Description1 A, SILICON, SIGNAL DIODE, DO-41; CategoryDiscrete semiconductor diode; File Size46KB，2 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

1N4003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4003	-	-	View	Buy Now

1N4003 Overview

1 A, SILICON, SIGNAL DIODE, DO-41

1N4003 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	LRC
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

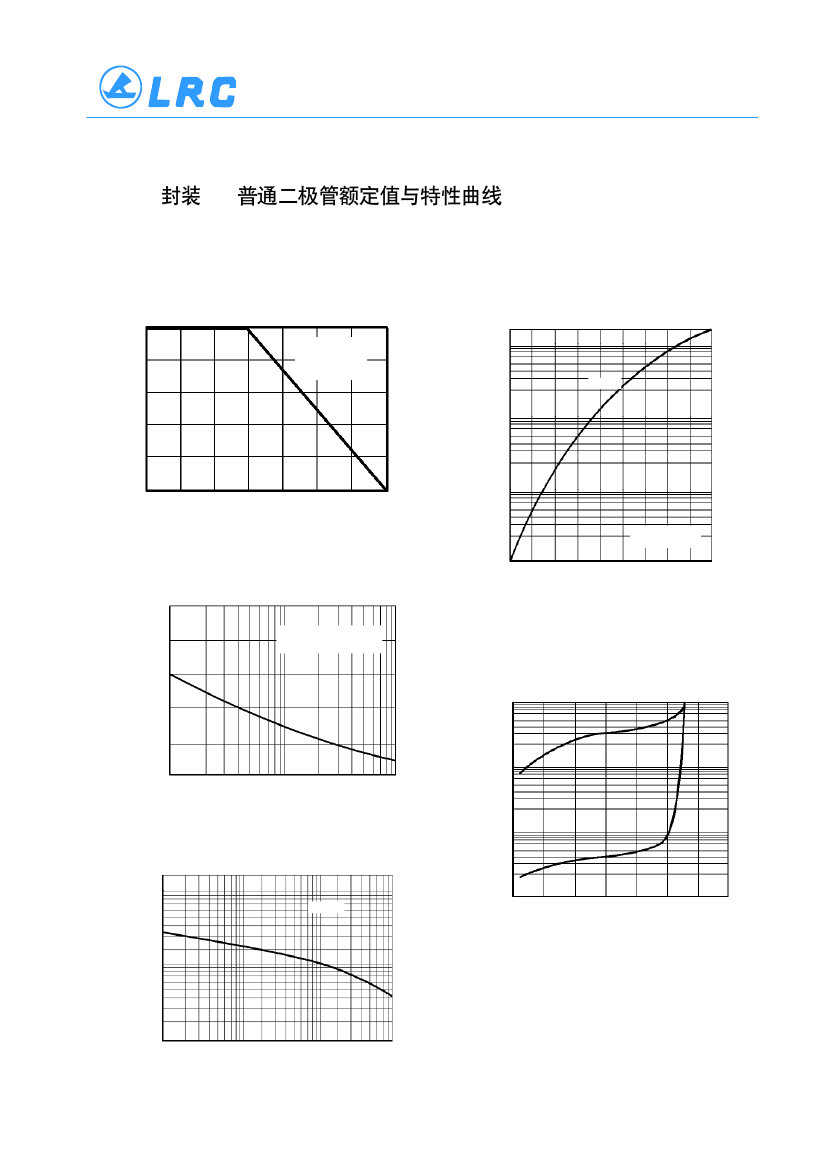

Preview

Download Datasheet

View All

LESHAN RADIO COMPANY, LTD.

1N4001 – 1N4007

1A GENERAL DIODES

Maximum Average

TYPE

Maximum

Peak Reverse

Voltage

PRV

Rectified Current

@ Half-Wave

Resistive Load 60Hz

@ T

ºC

Maximum

Forward Peak

Surge Current @

8.3ms Superimposed

(Surge)

Maximum

Reverse

Current @ PRV

@ T

=25ºC

Maximum

Forward

Voltage

@ T

=25ºC

Package

Dimensions

µAdc

1N4001

1N4002

1N4003

1N4004

1N4005

1N4006

1N4007

100

200

400

600

800

1000

1.0

5.0

1.0

1.1

DO – 41

1.0(25.4)

MIN

.205(5.2)

.166(4.2)

1.0(25.4)

MIN

.034(0.9)

.028(0.7)

DIA

.107(2.7) DIA

.080(2.0)

DO – 41

22A–1/2

1N4003 Related Products

	1N4003	1N4001	1N4004	1N4005	1N4006
Description	1 A, SILICON, SIGNAL DIODE, DO-41	1 A, SILICON, SIGNAL DIODE	1 A, 400 V, SILICON, SIGNAL DIODE, DO-41	1 A, 600 V, SILICON, SIGNAL DIODE, DO-41	1 A, 800 V, SILICON, SIGNAL DIODE, DO-41
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	LRC	LRC	LRC	LRC	LRC
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	ROHS COMPLIANT, PLASTIC PACKAGE-2	O-PALF-W2
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JEDEC-95 code	DO-41	DO-41	DO-41	DO-41	DO-41
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	200 V	50 V	400 V	600 V	800 V
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
