1N4003 datasheet, PDF - EEWORLD Datasheet

1N4003: Description1 A, SILICON, SIGNAL DIODE, DO-41; Categorysemiconductor Discrete semiconductor; File Size114KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

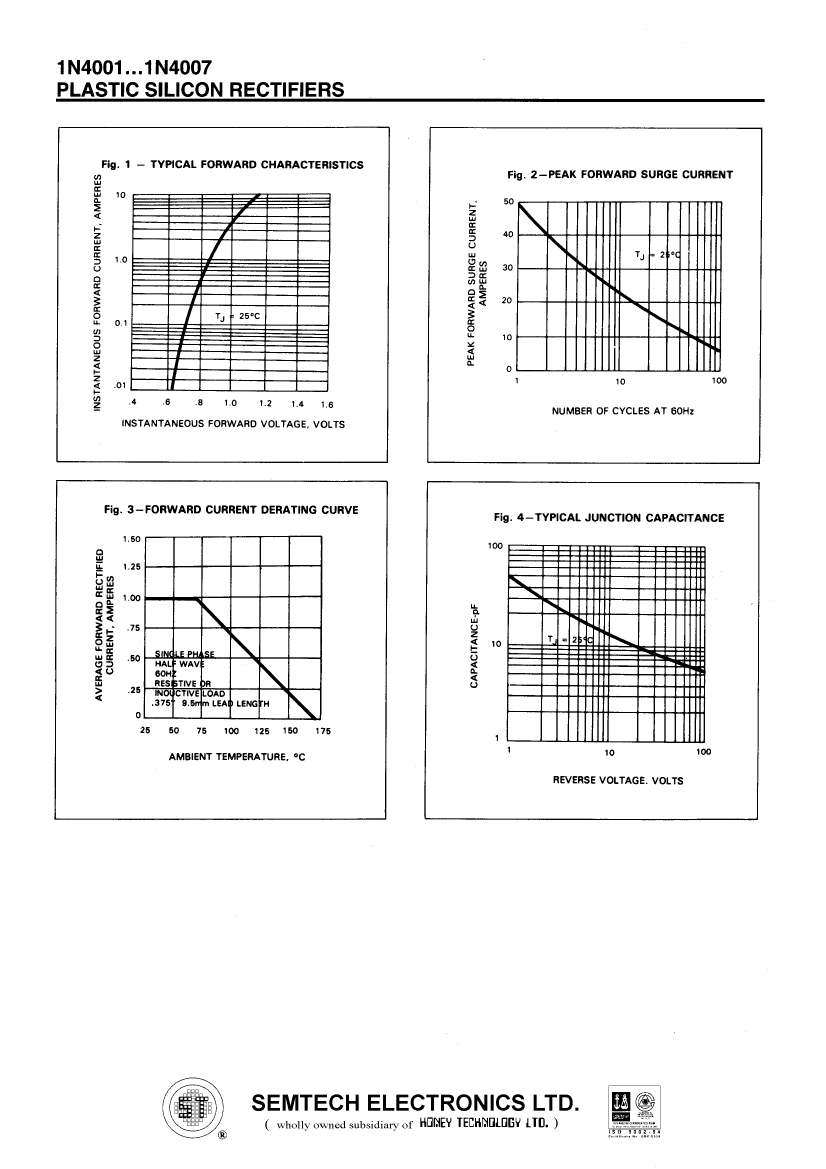

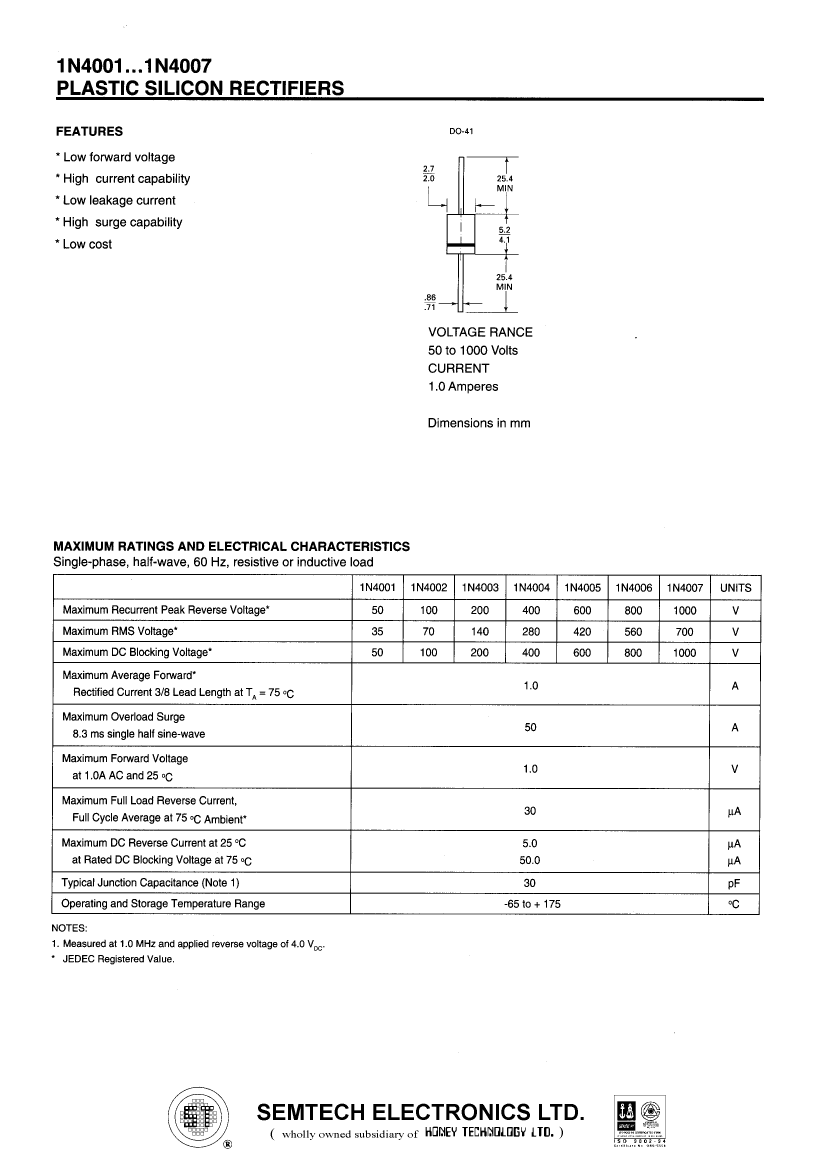

Download Datasheet Parametric Compare View All

1N4003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4003	-	-	View	Buy Now

1 A, SILICON, SIGNAL DIODE, DO-41

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	ALF-2, DO-41, 2 PIN
state	TRANSFERRED
packaging shape	round
Package Size	LONG FORM
Terminal form	Wire
Terminal location	AXIAL
Packaging Materials	Glass
structure	single
Shell connection	isolation
Diode component materials	silicon
Maximum power consumption limit	1 W
Diode type	Signal diode
Maximum average forward current	1 A

	1N4003	1N4001	1N4002	1N4004	1N4005	1N4006	1N4007
Description	1 A, SILICON, SIGNAL DIODE, DO-41	1 A, SILICON, SIGNAL DIODE	1 A, 100 V, SILICON, SIGNAL DIODE, DO-41	1 A, 400 V, SILICON, SIGNAL DIODE, DO-41	1 A, 600 V, SILICON, SIGNAL DIODE, DO-41	1 A, 800 V, SILICON, SIGNAL DIODE, DO-41	1 A, 1000 V, SILICON, SIGNAL DIODE, DO-41
Number of terminals	2	2	2	2	2	2	2
Number of components	1	1	1	1	1	1	1
state	TRANSFERRED	ACTIVE	TRANSFERRED	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	round	round	round	round	round	ROUND	round
Package Size	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Terminal form	Wire	Wire	Wire	Wire	Wire	WIRE	Wire
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Packaging Materials	Glass	UNSPECIFIED	Plastic/Epoxy	UNSPECIFIED	Plastic/Epoxy	PLASTIC/EPOXY	Plastic/Epoxy
structure	single	single	single	single	single	SINGLE	single
Shell connection	isolation	isolation	isolation	isolation	isolation	ISOLATED	isolation
Diode component materials	silicon	silicon	silicon	silicon	silicon	SILICON	silicon
Diode type	Signal diode	Signal diode	Signal diode	Signal diode	Signal diode	SIGNAL DIODE	Signal diode
Maximum average forward current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Processing package description	ALF-2, DO-41, 2 PIN	MINIATURE PACKAGE-2	-	CASE R-1, 2 PIN	PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC, DO-204AL, 2 PIN	PLASTIC PACKAGE-2
terminal coating	-	NOT SPECIFIED	tin lead	-	NOT SPECIFIED	NOT SPECIFIED	-
Maximum repetitive peak reverse voltage	-	-	100 V	400 V	600 V	800 V	1000 V
