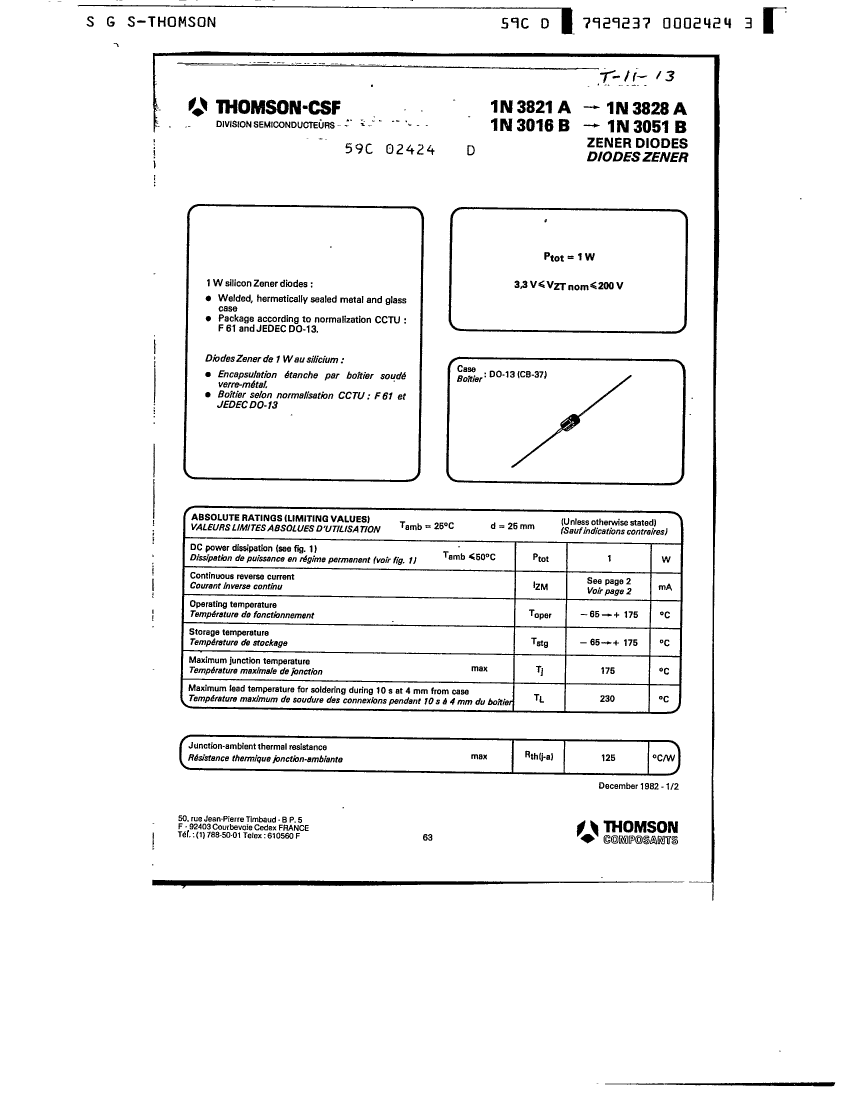

Preview

1N3825A: DescriptionZENER DIODE,SINGLE, TWO TERMINAL,4.7V V(Z),5%,AXIAL-D; CategoryDiscrete semiconductor diode; File Size147KB，2 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

1N3825A Overview

ZENER DIODE,SINGLE, TWO TERMINAL,4.7V V(Z),5%,AXIAL-D

1N3825A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
ECCN code	EAR99
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	8 Ω
JESD-609 code	e0
Number of components	1
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum power dissipation	1 W
Nominal reference voltage	4.7 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%
Working test current	53 mA
Base Number Matches	1

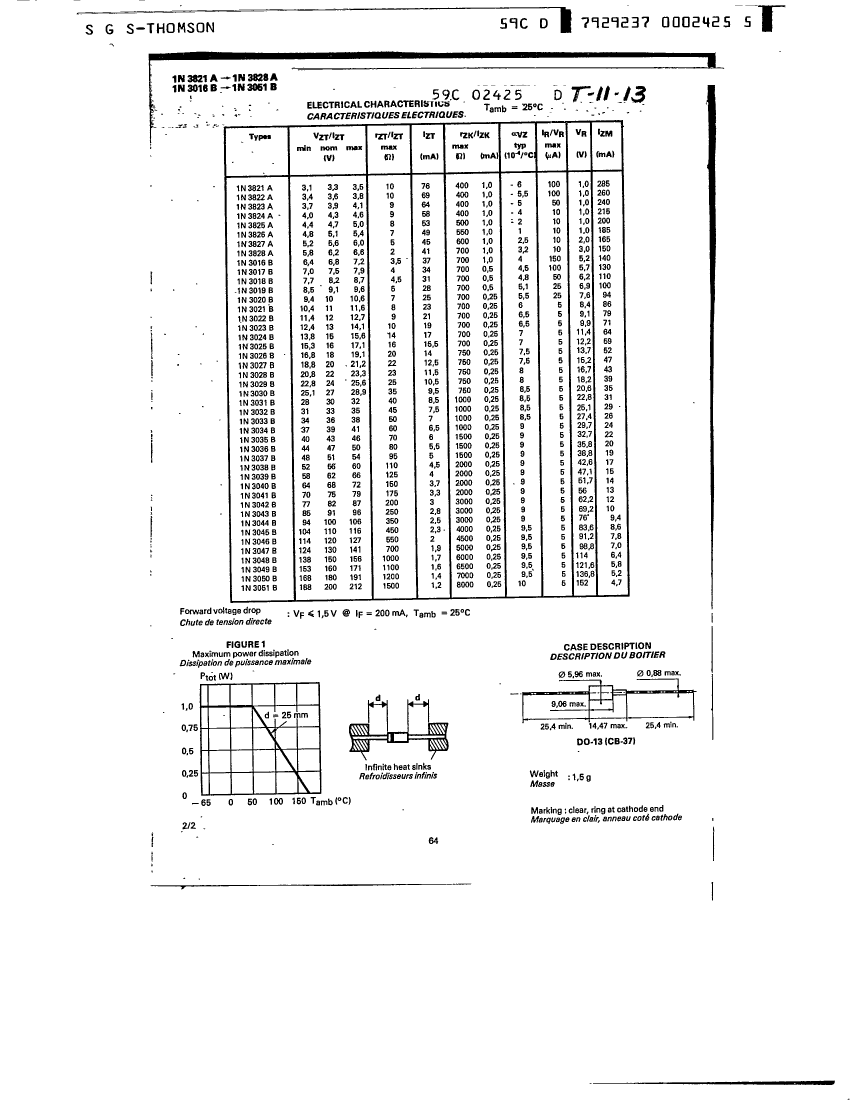

Preview

Download Datasheet

View All

1N3825A Related Products

	1N3825A	1N3822A	1N3826A	1N3823A	1N3821A	1N3824A	1N3827A	1N3828A
Description	ZENER DIODE,SINGLE, TWO TERMINAL,4.7V V(Z),5%,AXIAL-D	ZENER DIODE,SINGLE, TWO TERMINAL,3.6V V(Z),5%,AXIAL-D	ZENER DIODE,SINGLE, TWO TERMINAL,5.1V V(Z),5%,AXIAL-D	ZENER DIODE,SINGLE, TWO TERMINAL,3.9V V(Z),5%,AXIAL-D	ZENER DIODE,SINGLE, TWO TERMINAL,3.3V V(Z),5%,DO-41	ZENER DIODE,SINGLE, TWO TERMINAL,4.3V V(Z),5%,AXIAL-D	ZENER DIODE,SINGLE, TWO TERMINAL,5.6V V(Z),5%,AXIAL-D	ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,AXIAL-D
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	incompatible
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	8 Ω	10 Ω	7 Ω	9 Ω	10 Ω	9 Ω	5 Ω	2 Ω
JESD-609 code	e0	e0	e0	e0	e3	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum power dissipation	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Nominal reference voltage	4.7 V	3.6 V	5.1 V	3.9 V	3.3 V	4.3 V	5.6 V	6.2 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%	5%
Working test current	53 mA	69 mA	49 mA	64 mA	76 mA	58 mA	45 mA	41 mA
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-	-	-65 °C	-65 °C
Maker	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
