SF2001G- SF2008G
20.0AMPS. Glass Passivated Super Fast Rectifiers
TO-220AB
Features
High efficiency, low VF
High current capavility
High reliability
High surge current capability
Low power loss.
For use in low voltage, high frequency inverter,
free wheeling, and polarity protection
application
Green compound with suffix "G" on packing
code & prefix "G" on datecode.

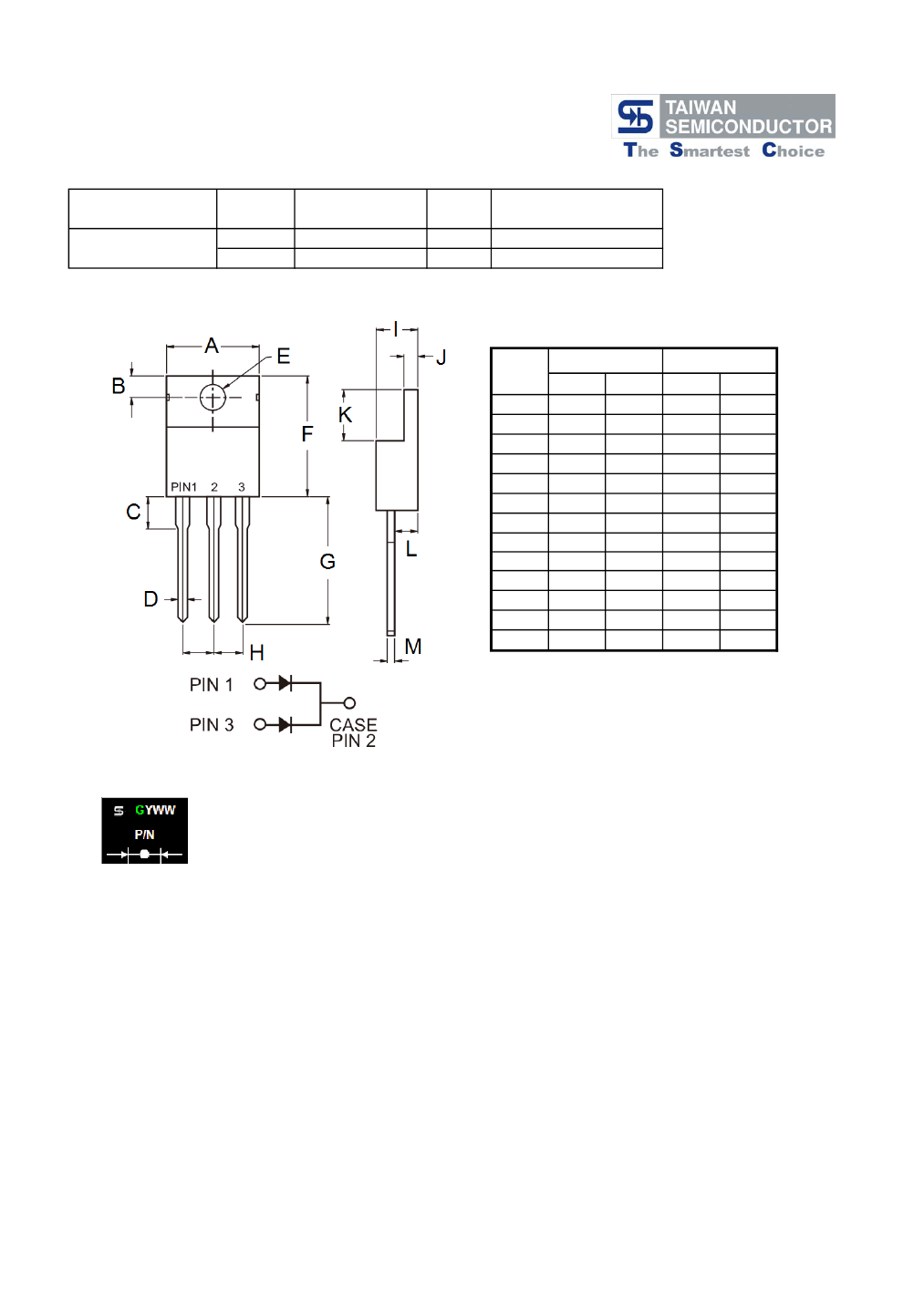

Mechanical Data
Cases: TO-220AB Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260
o
C/10 seconds 16".,(4.06mm) from case.
Weight: 1.90 grams
Ordering Information(example)
Part No.
SF2001G
Package
Packing
Packing
code
D0
Packing code
(Green)
D0G
TO-220AB 50 / TUBE
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage
@ 10 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
(Note 1)
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJC
T
J
T
STG
SF
SF
SF
SF
SF
SF
SF
SF
2001G 2002G 2003G 2004G 2005G 2006G 2007G 2008G
50
100
150
200
300
400
500
600
35
50
70
100
105
150
140
200
20
150
0.975
5
400
35
80
2.5
- 55 to + 150
- 55 to + 150
1.3
1.7
210
300
280
400
350
500
420
600
Units
V
V
V
A
A
V
uA
nS
pF
O
@ T
A
=25
℃
@ T
A
=125
℃
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
C/W
O
O
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A.
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:F13

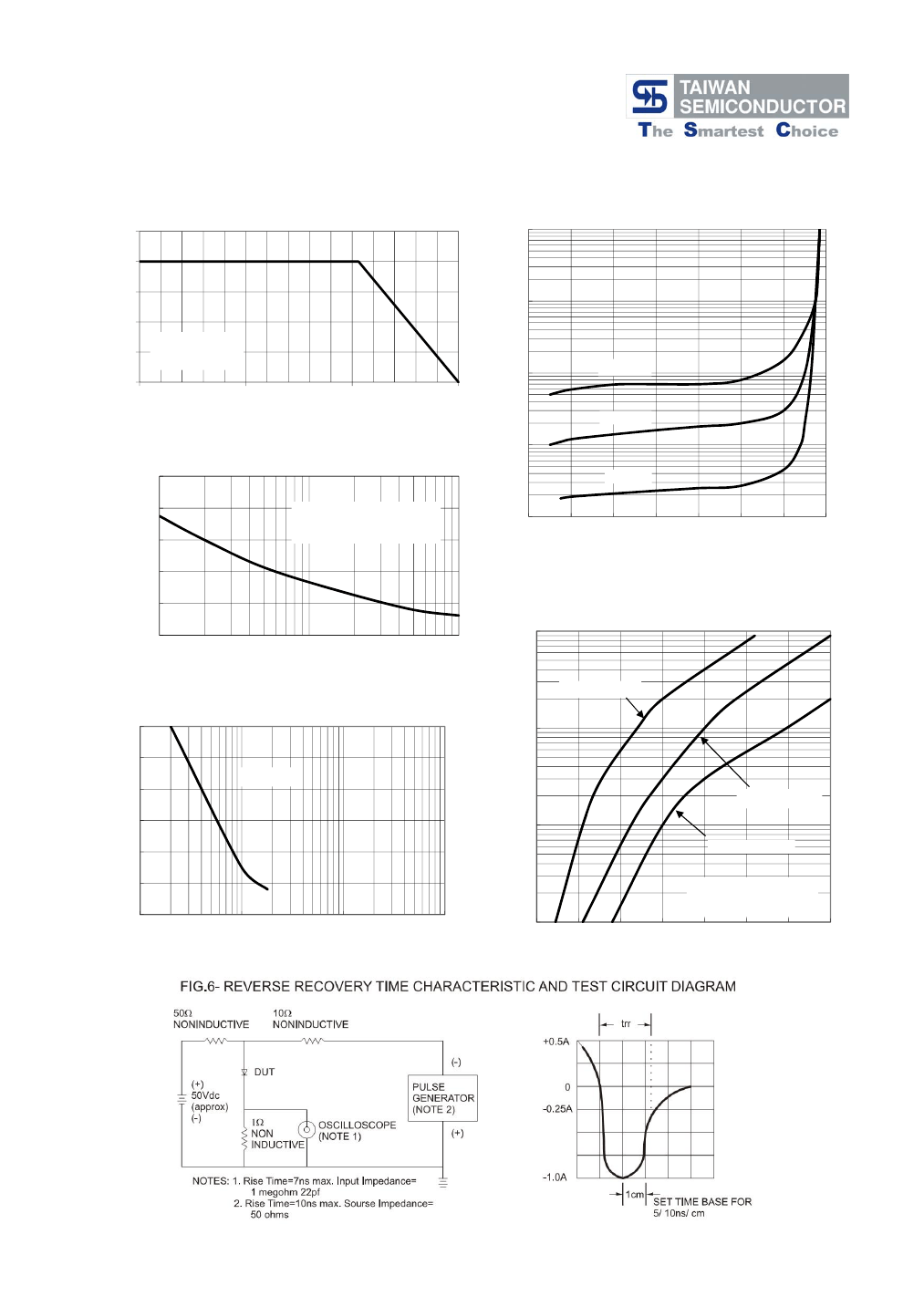

RATINGS AND CHARACTERISTIC CURVES (SF2001G THRU SF2008G)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
25
AVERAGE FORWARD
A
CURRENT (A)
1000
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
PER LEG
20
15
10
5
0
0
50
100
CASE TEMPERATURE (
o
C)
150
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
100
INSTANTANEOUS REVERSE CURRENT. (uA)
10
TA=100
TA=75℃
1
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
PEAK FORWARD SURGE CURRENT
(A)
200
160
120
80
40
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
TA=25
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
TA=25℃
8.3ms Single Half Sine Wave
JEDEC Method
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
PER LEG
100
INSTANTANEOUS FORWARD CURRENT. (A)
FIG. 4- TYPICAL JUNCTION CAPACITANCE PER LEG
100
90
CAPACITANCE (pF)
80
70
60
50
40
1
10
100
1000
REVERSE VOLTAGE. (V)
SF2001G-04G
10
TA=25
o
C
SF2005G-06G
1
SF2007G-08G
TA=25
o
C
Pulse Width=300us
1% Duty Cycle
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE. (V)
1.6
1.8
0.1
Version:F13
