FFP12UP20DN Ultrafast Recovery Power Rectifier
February 2006
FFP12UP20DN
Ultrafast Recovery Power Rectifier
Features
• Ultrafast with Soft Recovery : < 35ns (@I
F
= 6A)
• High Reverse Voltage : V
RRM
= 200V
• Enhanced Avalanche Energy Rated
• Planar Construction
Applications
• Output Rectifiers
• Switching Mode Power Supply
• Free-wheeling Diode
• Power Switching Circuits
1

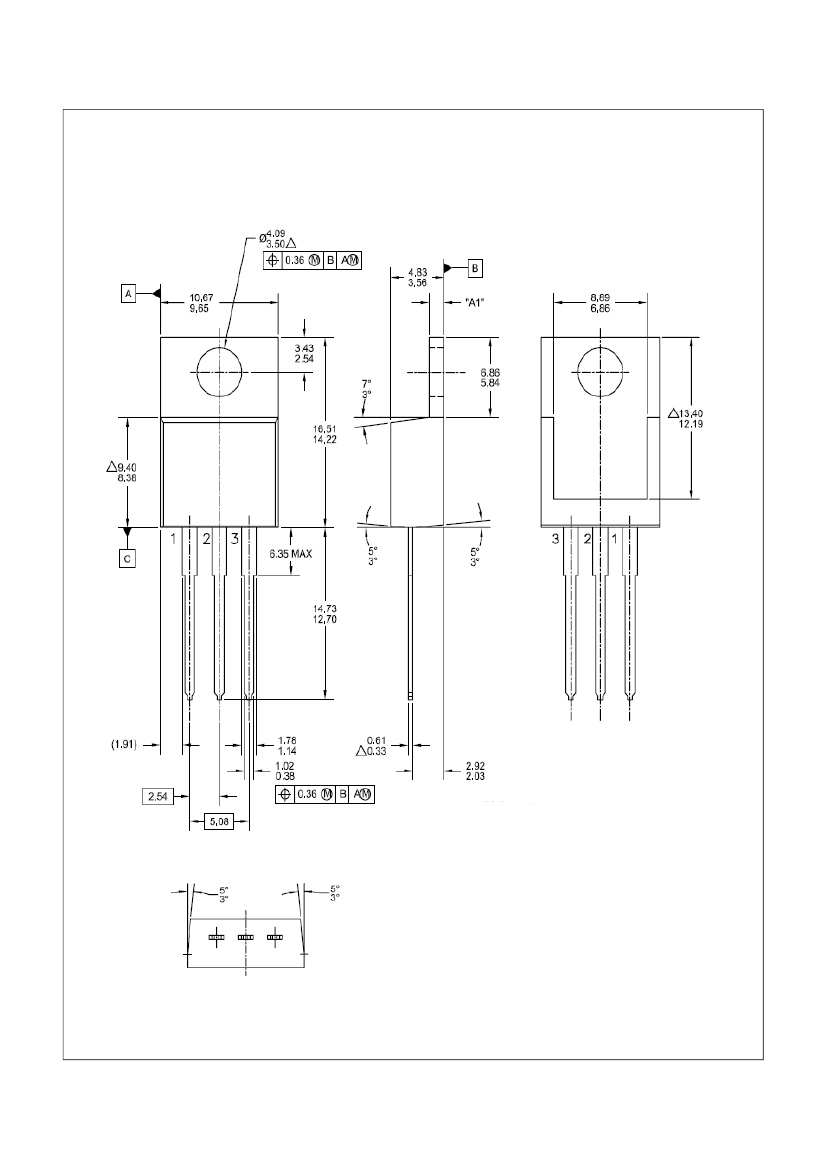

TO-220
1
2
3
1. Anode 2. Cathode 3. Anode
1.Anode 2.Cathode 3.Anode
Absolute Maximum Ratings
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
T
J,
T
STG
(per diode) T
C
= 25°C unless otherwise noted
Parameter
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave
Operating Junction and Storage Temperature
@ T
C
= 125°C
Value
200
200
200
6
60
- 65 to +150
Units
V
V
V
A
A
°C
Thermal Characteristics
Symbol
R
θJC
Parameter
Maximum Thermal Resistance, Junction to Case
Max
3.5
Units
°C/W
Package Marking and Ordering Information
Device Marking
F12UP20DN
Device
FFP12UP20DNTU
Package
TO-220
Reel Size
-
Tape Width
-
Quantity
50
©2006 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FFP12UP20DN Rev. A

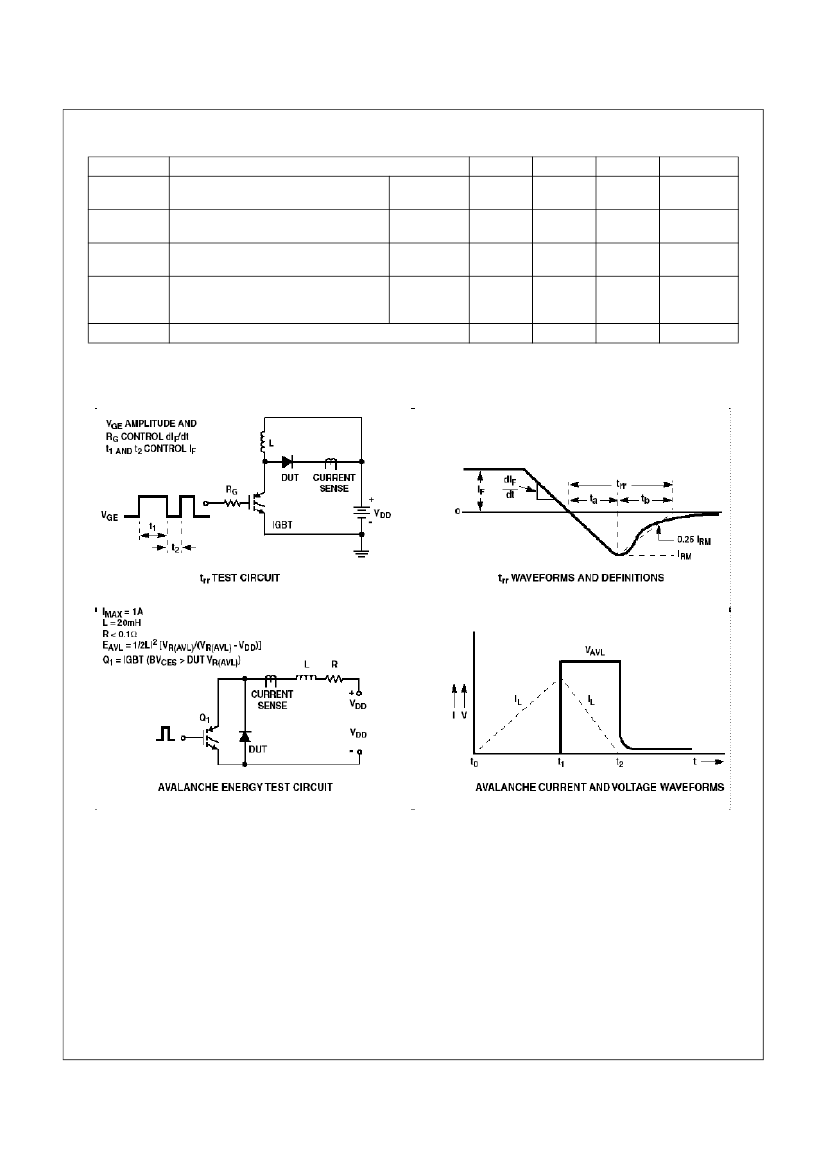

FFP12UP20DN Ultrafast Recovery Power Rectifier

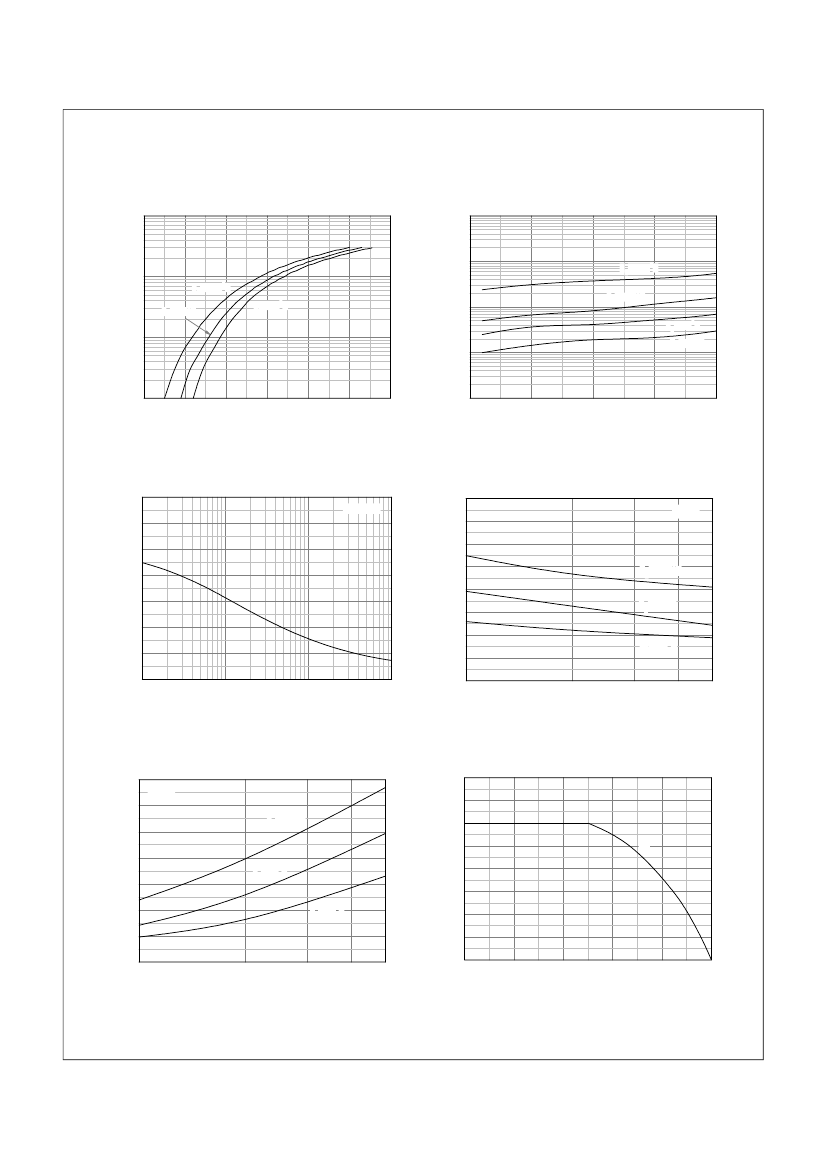

Typical Performance Characteristics
Figure 1. Typical Forward Voltage Drop
100
Figure 2. Typical Reverse Current
10
FORWARD CURRENT, I
F
[A]
REVERSE CURRENT, I
R
[
µ
A]
1
10
T
C
= 125 C
T
C
= 100 C
T
C
= 75 C
o
o
o
T
C
= 125 C
T
C
= 75 C
1
o
o
T
C
= 25 C
o
0.1
0.01
T
C
= 25 C
o
0.1
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1E-3
0
50
100
150
200
FORWARD VOLTAGE, V
F
[V]
REVERSE VOLTAGE, V
R
[V]
Figure 3. Typical Junction Capacitance
140
Figure 4. Typical Reverse Recovery Time
50
REVERSE RECOVERY TIME, trr [ns]
JUNCTION CAPACITANCE, C
J
[pF]
f = 1MHz
120
100
80
60
40
20
0
0.1
45
40
35
30
25
20
15
10
100
I
F
= 6A
T
C
= 125 C
T
C
= 75 C
o
o
T
C
= 25 C
o
1
10
100
200
300
400
500
REVERSE VOLTAGE, V
R
[V]
di/dt, [A/
µ
s]
Figure 5. Typical Reverse Recovery Current
REVERSE RECOVERY CURRENT, Irr [A]
7
Figure 6. Forward Current Deration Curve
AVERAGE FORWARD CURRENT, I
F(AV)
[A]
8
7
6
5
4
3
2
1
0
100
I
F
= 6A
6
5
4
T
C
= 125 C
o
DC
T
C
= 75 C
3
2
1
0
100
o
T
C
= 25 C
o
200
300
400
500
110
120
130
o
140
150
di/dt, [A/
µ
s]
CASE TEMPERATURE, T
C
[ C]
FFP12UP20DN Rev. A
