FFP20UP20DN Ultrafast Recovery Power Rectifier
FFP20UP20DN
Ultrafast Recovery Power Rectifier
Features
• Ultrafast with Soft Recovery : < 45ns
• High Reverse Voltage : V
RRM
= 200V
• Avalanche Energy Rated
• Planar Construction
Applications
• Output Rectifiers
• Switching Mode Power Supply
• Free-wheeling diode for motor application
• Power switching circuits
1

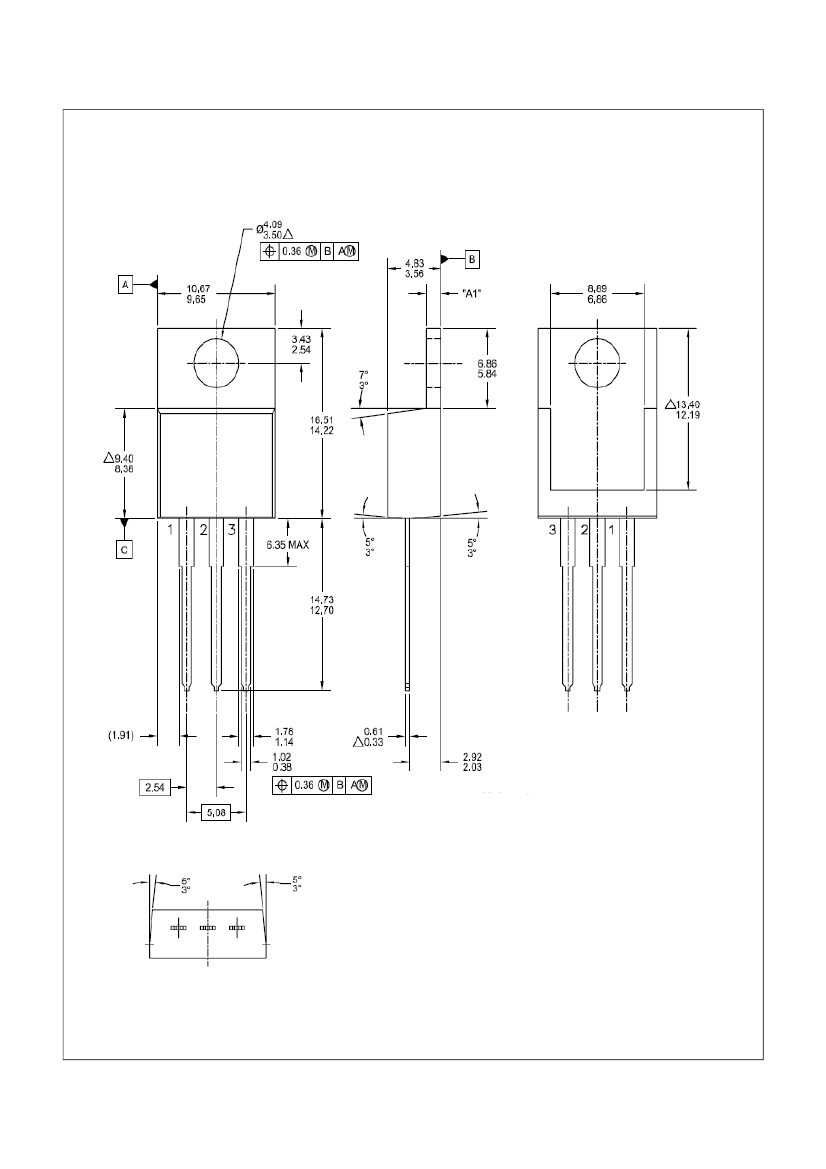

TO-220
1
2
3
1. Anode 2. Cathode 3. Anode
1.Anode 2.Cathode 3.Anode
Absolute Maximum Ratings
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
T
J,
T
STG
(per diode) T
a
= 25°C unless otherwise noted
Parameter
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave
Operating Junction and Storage Temperature
= 25°C unless otherwise noted
Value
200
200
200
@ T
C
= 120°C
10
100
- 65 to +150
Units
V
V
V
A
A
°C
Thermal Characteristics
T
Symbol
R
θJC
a
Parameter
Maximum Thermal Resistance, Junction to Case
Max
3.0
Units
°C/W
©2005 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FFP20UP20DN Rev. A
FFP20UP20DN Ultrafast Recovery Power Rectifier
Typical Performance Characteristics
Figure 1. Typical Forward Voltage Drop
50
100
Figure 2. Typical Reverse Current
Forward Current , I
F
[A]
10
T
C
= 100 C
Reverse Current , I
R
[
µ
A]
o
10
T
C
= 100 C
1
o
1
T
C
= 25 C
o
0.1
0.01
T
C
= 25 C
o
0.1
0.0
0.5
1.0
1.5
2.0
0.001
0
50
100
150
200
Forward Voltage , V
F
[V]
Reverse Voltage , V
R
[V]
Figure 3. Typical Junction Capacitance
400
Figure 4. Typical Reverse Recovery Time
60
f = 1 MHz
Reverse Recovery Time , t
rr
[ns]
I
F
=10A
50
Capacitance , Cj [pF]
100
T
C
=125 C
40
o
30
T
C
=25 C
20
100
200
300
400
500
o
10
0.1
1
10
100
Reverse Voltage , V
R
[V]
di/dt [A/
µ
s]
Figure 5. Typical Reverse Recovery Current
12
Figure 6. Forward Current Deration Curve
Average Rectified Forward Current, I
F(AV)
[A]
14
12
10
Reverse Recovery Current , I
rr
[A]
I
F
= 10A
10
8
DC
8
6
4
2
0
100
6
T
C
=125 C
o
4
T
C
=25 C
2
o
0
100
200
300
400
500
110
120
130
o
140
150
di/dt [A/
µ
s]
Case Temperature, T
C
[ C]
FFP20UP20DN Rev. A
3
www.fairchildsemi.com
