52435-2272: DescriptionCONN FFC TOP 22POS 0.50MM R/A; CategoryThe connector; File Size488KB，5 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

52435-2272 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52435-2272	-	-	View	Buy Now

52435-2272 Overview

CONN FFC TOP 22POS 0.50MM R/A

52435-2272 Parametric

Parameter Name	Attribute value
Flat flexible type	FFC，FPC
Installation type	Surface mount, right angle
Connector/contact type	contacts, top
Number of pins	22
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	0.079"（2.00mm）
Lock function	slide lock
Cable end type	straight, tapered
Contact material	Phosphor bronze
Contact plating	tin bismuth
Shell material	Polyamide (PA46), Nylon 4/6
Actuator material	Polyphenylene sulfide (PPS)
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.5A
Contact plating thickness	39.4µin（1.00µm）
Shell color	-
Actuator color	-
Number of patches	20

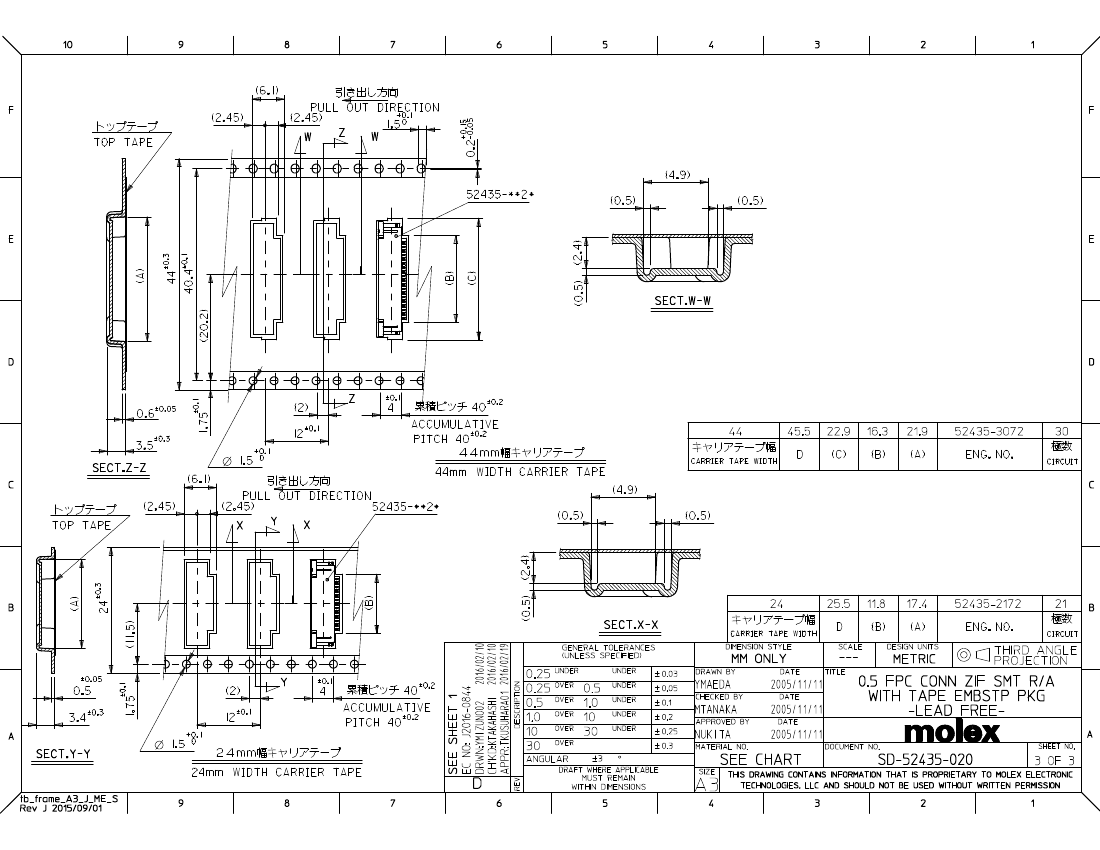

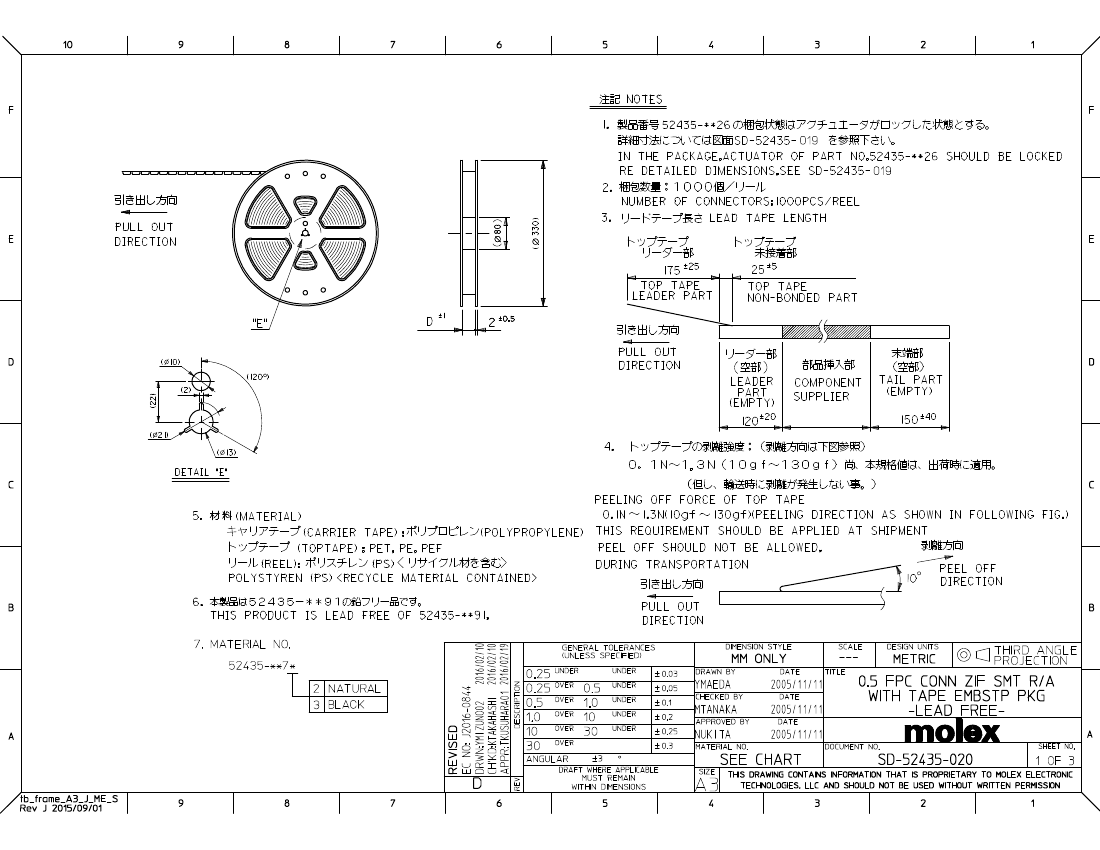

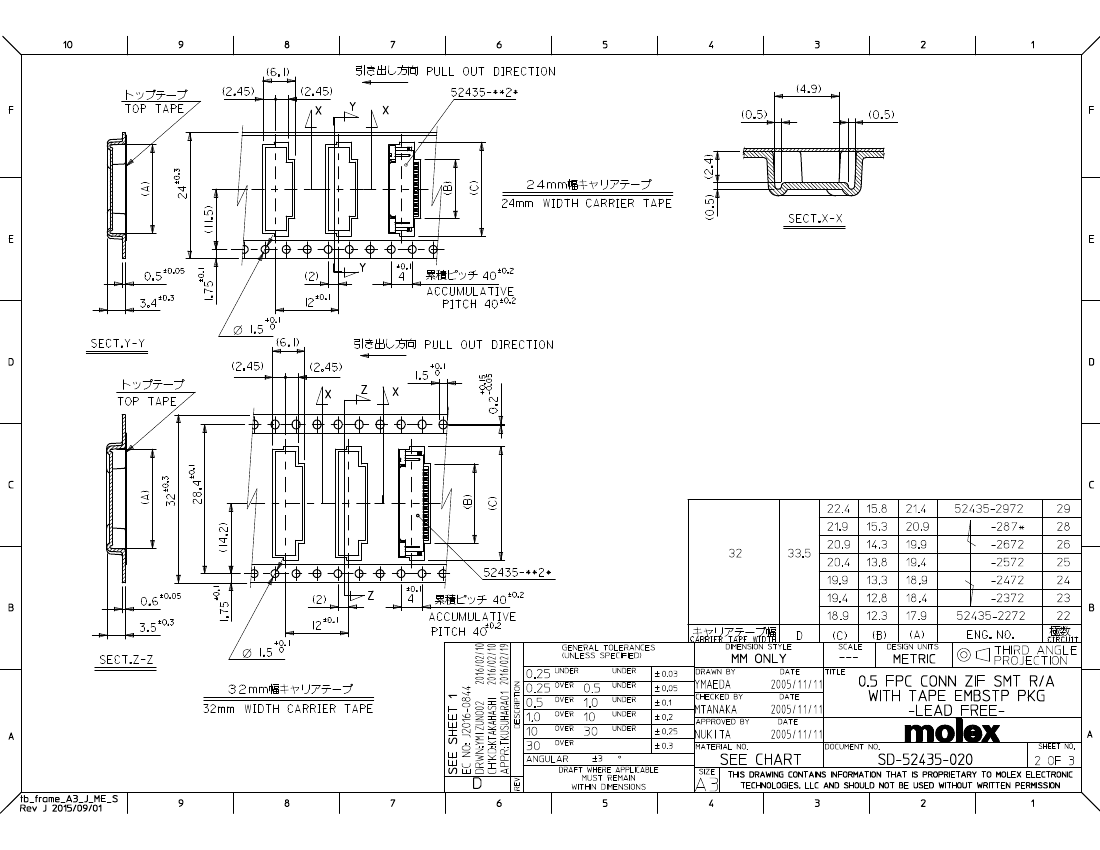

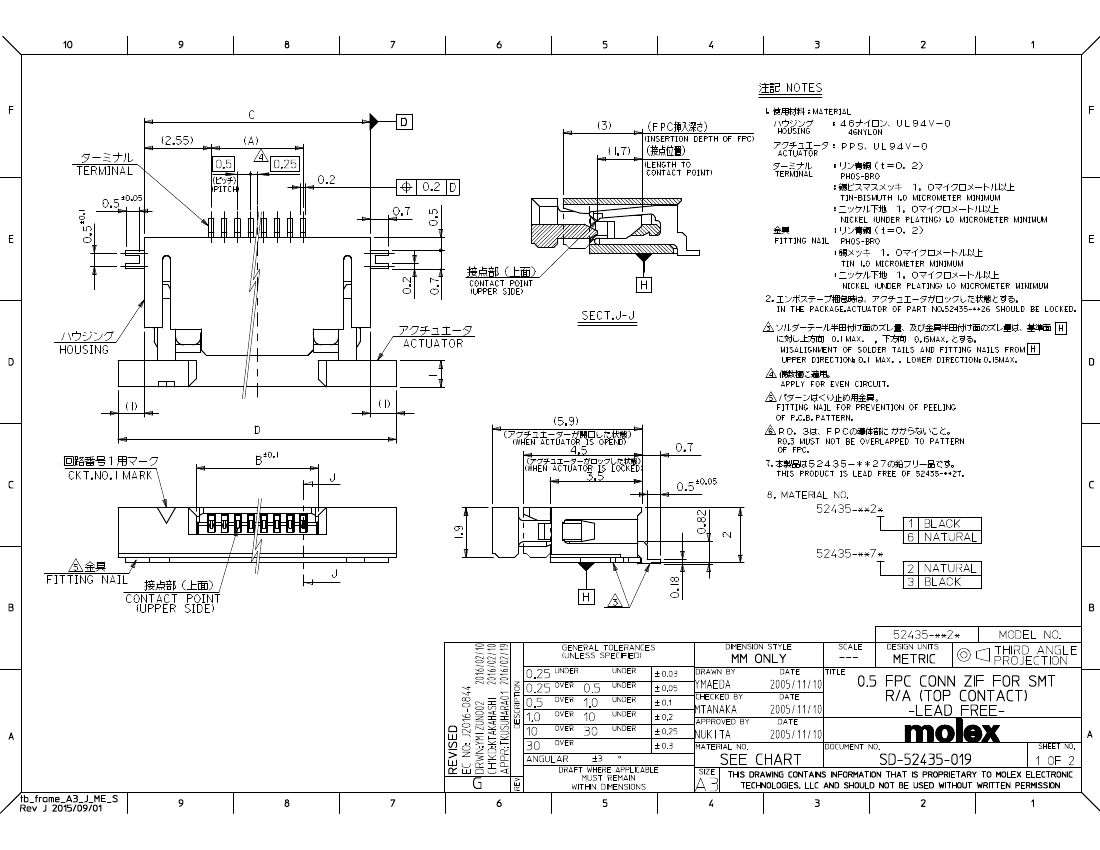

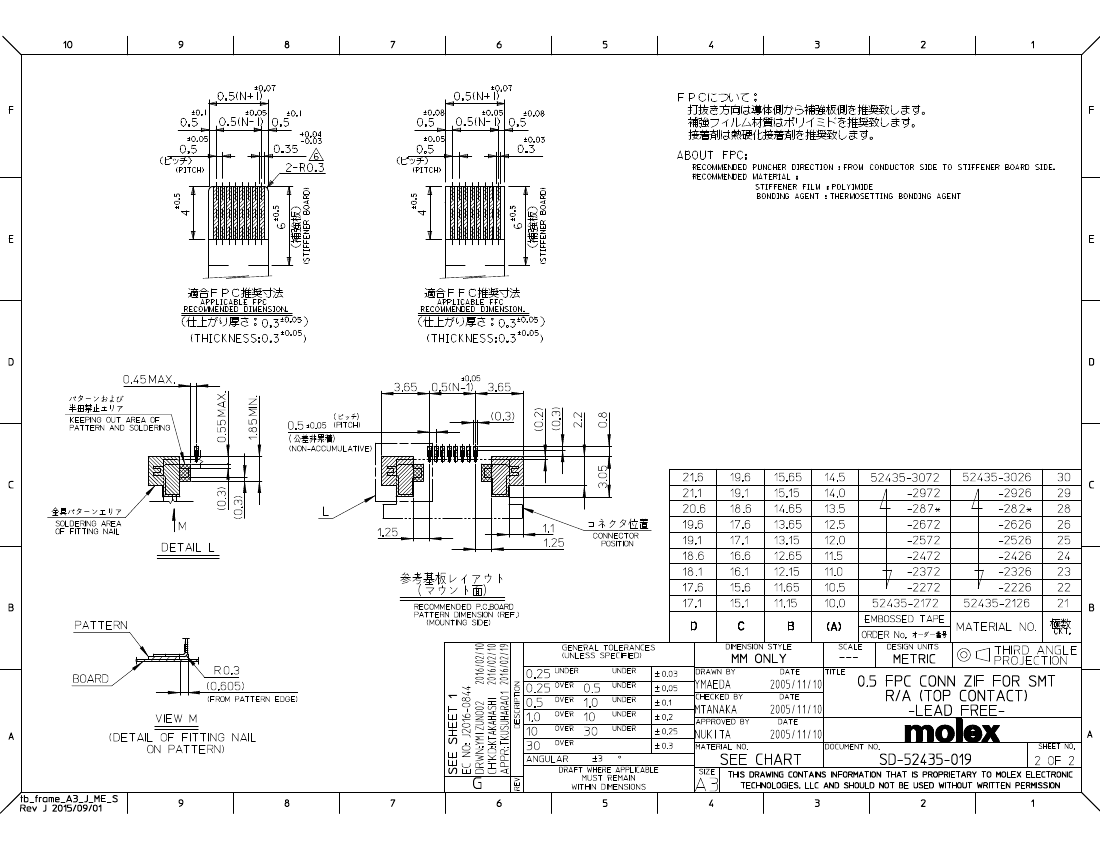

Preview

Download Datasheet

View All

52435-2272 Related Products

	52435-2272	52435-2872	52435-2172	52435-2372	52435-2572	52435-2672	52435-2772	52435-2472	52435-3072
Description	CONN FFC TOP 22POS 0.50MM R/A	CONN FFC TOP 28POS 0.50MM R/A	CONN FFC TOP 21POS 0.50MM R/A	CONN FFC TOP 23POS 0.50MM R/A	CONN FFC TOP 25POS 0.50MM R/A	CONN FFC TOP 26POS 0.50MM R/A	CONN FFC TOP 27POS 0.50MM R/A	CONN FFC TOP 24POS 0.50MM R/A	CONN FFC TOP 30POS 0.50MM R/A
Flat flexible type	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top	contacts, top
Number of pins	22	28	21	23	25	26	27	24	30
spacing	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）
Termination	welding	welding	welding	welding	welding	welding	welding	welding	welding
FFC, FCB thickness	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm
board height	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Lock function	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock	slide lock
Cable end type	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth
Shell material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Actuator material	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)
characteristic	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V	50V	50V	50V	50V	50V	50V	50V	50V
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A
Contact plating thickness	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
Number of patches	20	20	20	20	20	20	20	20	20
