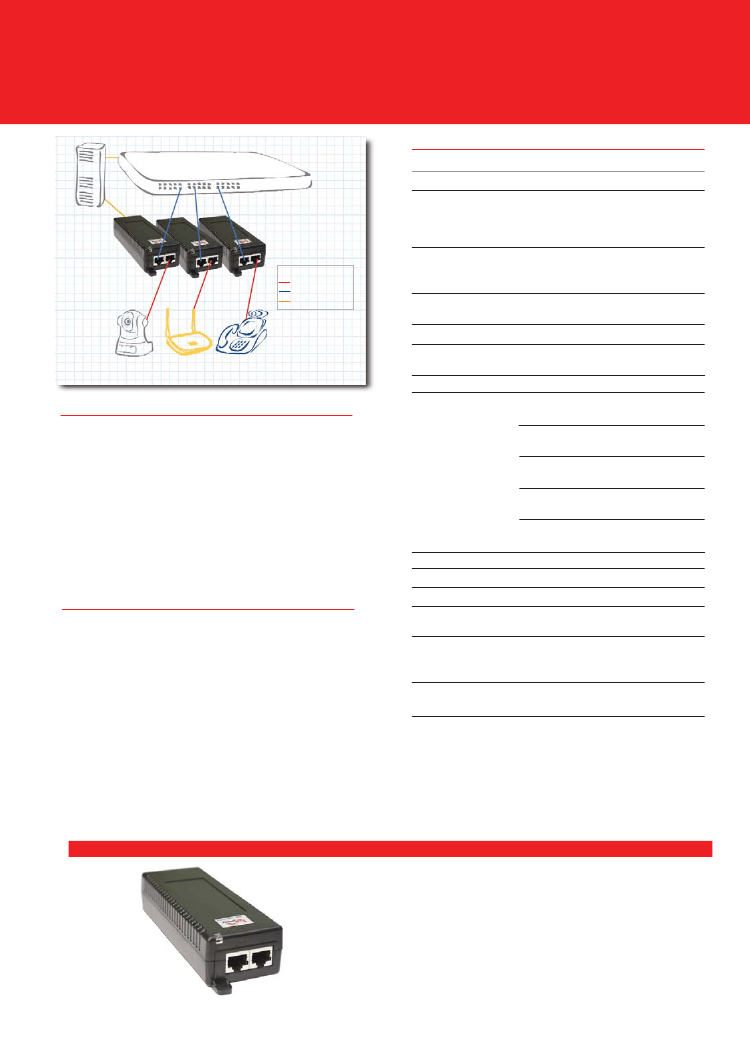

PowerDsine 9001GR
Single-port High Power Midspan, 802.3at Compliant, up to Gigabit PoE
PD-9001GR Specifications
Ethernet Switch
®
No. of Ports
Pass Through Data Rates
Power over Ethernet
Output
PowerDsine 9001GR
PoE Midspan
Ethernet Cable
Power & Data
Data
Power
1
10/100/1000 Mbps
Pin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 55Vdc
Output Power: 30 Watts (Guaranteed)
AC Input Voltage: 100 to 240 Vac
AC Input Current: 0.8A @ 100-240 Vac
AC Frequency:
50 to 60 Hz
53 mm (W) x 32.5 mm (H) x 140 mm (L)
2.09 in. x 1.28 in. x 5.5 in
0.44 lbs (200g)
AC Power (Yellow)
Channel Power (Green)
Shielded RJ-45, EIA 568A and 568B
Operating Ambient Temperature:
32º to 104ºF (0 to 40ºC)
Operating Humidity:
Maximum 90%, Non-condensing
Storage Temperature:
–4º to 158ºF (–20º to 70ºC)
Storage Humidity:
Maximum 95%, Non-condensing
Operating Altitude:
–1000 to 10,000 ft. (–304.8 to 3048 m)
UPS
Input Power
Requirements
Dimensions
Weight
Indicators
P-T-Z
Cameras
802.11n
Access Points
IP Video
Phones
Connectors
Overview
The PowerDsine 9001GR is a single port, high-power
solution for remote powering of current and emerging
high power applications. Generating up to 30W, the
9001GR enables remote power for a new range of
applications including 802.11n Access Points, pan-tilt-
zoom (PTZ) cameras and video-phones. It complies to
IEEE 802.3at PoE standard and is backward compati-
ble to IEEE802.3af. It can power both existing
10/100Base-T network devices and emerging wireless
1000Base-T devices such as WiMAX and wireless IEEE
802.11n access points.
Environmental
Conditions
Reliability
Thermal Rating
Warranty
Regulatory
Compliance
Electromagnetic
Emission & Immunity
Safety Approvals
MTBF: min 100,000 hrs. @25ºC
20 BTU/Hr (@240VAC)
1-year
IEEE 802.3at (PoE), RoHS Compliant
WEEE Compliant, CE
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity), VCCI
UL/cUL Per IEC 60950-1
GS Mark Per IEC 60950-1
PD-9001GR Features
• IEEE 802.3at compliant with 2-event classification
• IEEE 802.3af backward compatible
• Output power of 30W is guaranteed
• Supports 10/100/1000Base-T applications
• Compatible with IEEE 802.3af devices and
pre standard devices
• Safe: low power devices receive only the power
they need
• Automatic Detection and Protection of non–standard
Ethernet terminals
• Compact design fits easily in WLAN Access Point and
IP Cameras installations
Ordering Information
Part Number
PD-9001GR/AC
Name
PowerDsine 9001GR
Description
1-port IEEE 802.3at Gigabit Midspan
