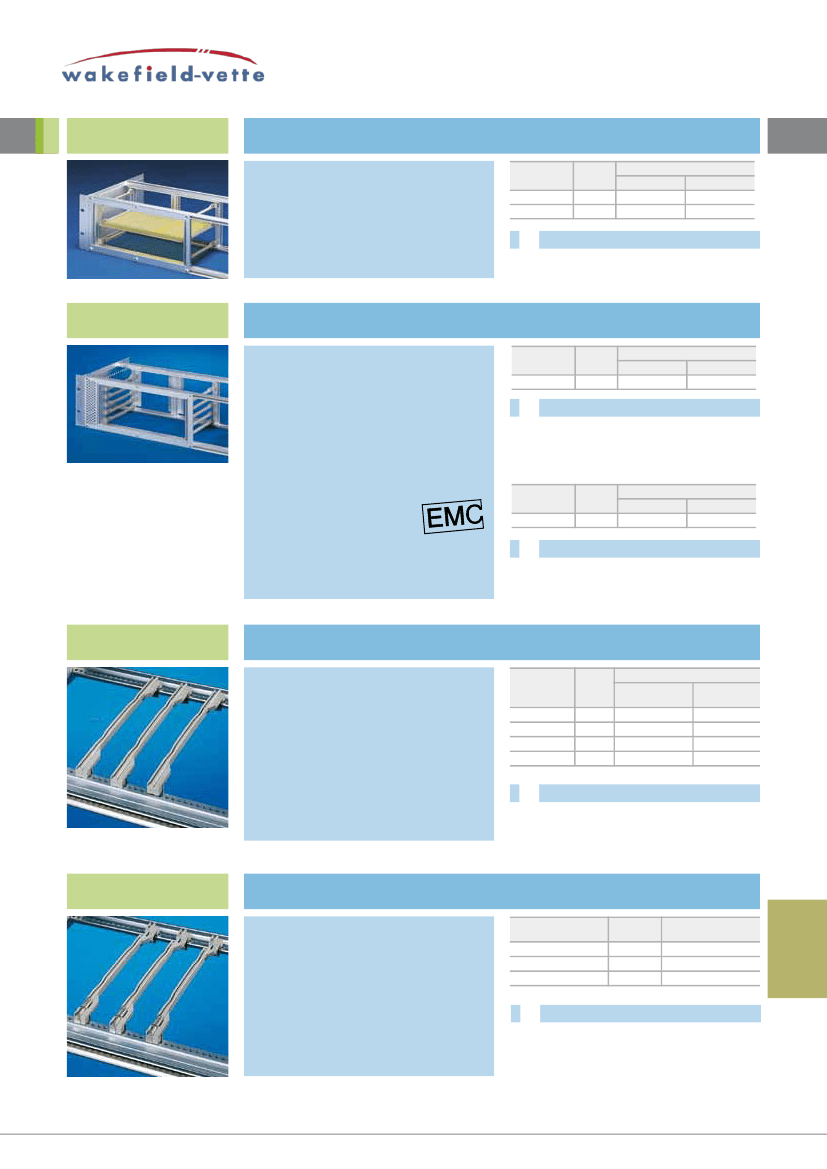

COMPONENTS / ACCESSORIES
mountinG kits/GuiDe rails
trim frame
For horizontal mounting kit
To conceal the front sections of the horizontal
mounting kit.
material:
Aluminum, anodized
U
horizontal
6
9
HP
56
84
order no.
For 3 U subracks For 4 U subracks
3685.783
3685.784
3685.785
3685.786
!
also required:
Collar screws and plastic collars,
packs of 100 sets, order no. 3658.160,
see page 164
trim frame, vented
For horizontal mounting kit
To conceal the front sections of the horizontal
mounting kit.
material:
Aluminum
surface finish:
Anodized,
clear-chromated (EMC version)
supply includes:
EMC accessories
(with EMC version).
U
horizontal
6
HP
63
order no.
For 3 U subracks For 4 U subracks
3685.787
3685.788
!
also required:
Collar screws and plastic collars,
packs of 100 sets, order no. 3658.160,
see page 164
emc version
U
horizontal
6
HP
63
order no.
For 3 U subracks For 4 U subracks
3685.291
3685.292
!
also required:
Centering screws,
packs of 100, order no. 3687.050,
see page 165
plastic guide rails
For 160, 220 and 280 mm PCBs up to 2 mm
nominal thickness.
2 versions are available:
•
Snap-in fastening and screw-fastening
•
Snap-in fastening
material:
Polycarbonate, base material to UL 94-V0
PCB depth
mm
100
160
220
280
order no.
snap-in
snap-in/screw
fastening
fastening1)
–
3688.005
3684.657
3684.658
3684.659
3684.654
3684.655
3684.656
Packs of
1
1
1
1
!
also required:
1) Assembly screws, packs of 100,
order no. 3654.360, see page 164
plastic guide rails
For contact spring fitting
For 160, 220 and 280 mm PCBs up to 2 mm
nominal thickness. By installing contact springs,
an electrical connection can be made between
the PCB and the assembly.
material:
Polycarbonate, base material to UL 94-V0
PCB depth
mm
160
220
280
Packs of
1
1
1
order no.
3684.660
3684.661
3684.662
+
accessories:
Contact springs,
see page 120
119
