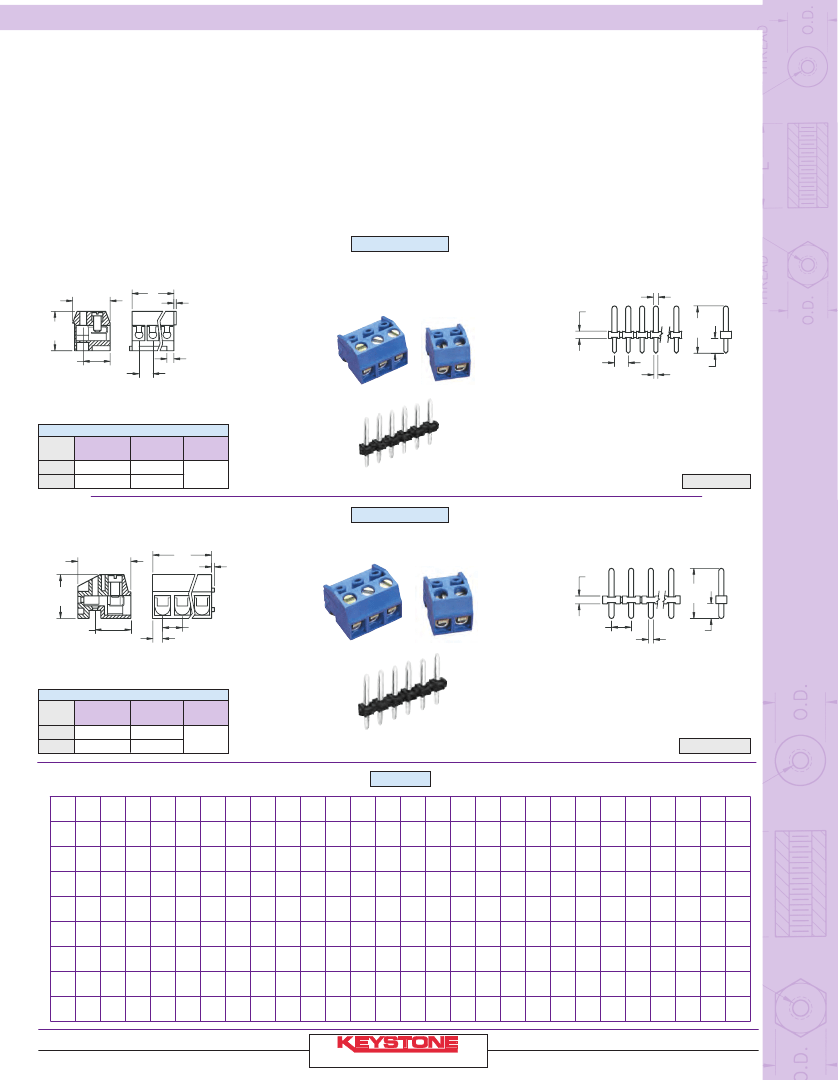

PLUGGABLE WITH PIN STRIPS
These unique modular terminal blocks are convenient and easy to
use. They may be interlocked to achieve the required number of
positions.The header pins, for both the 6 and 10 Amp models are
•
Space saving low profile design
•
Easy access horizontal wire entry
•
Convenient screw head access on top of terminal block
•
Headers mount easily in pre-drilled or stamped holes
•
Wire guards help prevent damage to conductors
MATERIAL:
Contact:
Brass, Tin Plate
Header Pins:
Brass, Tin Plate
Housing:
Blue PBT, UL Rated 94V-0
Screw:
Steel, Zinc Plate & Clear
Chromate (captivated)
supplied in strips of 24. Simply snap off the desired number of
positions required and insert into PC board. The modular
terminal block can be plugged into the header strip at anytime.
•
Accepts #22-16 AWG wire
•
Because of accumulating tolerances, we
recommend a maximum of 24 positions per row
•
Header strips and terminal blocks sold separately
MODULAR INTERLOCKING PC TERMINAL BLOCKS
SPECIFICATIONS
ELECTRICAL:
Dielectric Strength:
2500V
Insulation Breakdown:
1500V AC/min.
Rated voltage:
250V
MECHANICAL:
Operating Temp:
22°F to 248°F (-30°C to 120°C)
Peak Temp:
+393°F (+200°C)
HORIZONTAL ENTRY
•
Use header strip to connect to PCB
.375 [9.5]
A
.024
[0.61]
.051 [1.30]
.073
[1.9]
.473
[12.0]
.394
[10.0]
.069
[1.75]
.138 [3.5]
.268 [6.8]
.138 [3.5]
.039 [0.99]
.148
[3.8]
8723
8722
Recommended Mtg. Hole Size: .047(1.19)
3.5mm SPACING
A
CURRENT
POSITIONS
DIM.
RATING
2
.276 (7.0)
6 Amps
3
.413 (10.5)
CAT.
NO.
8722
8723
Pin Header Strips
(24 pins per strip)
8724
CAT. NO. 8724
HORIZONTAL ENTRY
•
Use header strip to connect to PCB
.531 [13.5]
A
.028 [0.71]
.078
[2.0]
.502
[12.8]
.436
[11.1]
.358 [9.1]
.197 [5.0]
.098 [2.5]
.197 [5.0]
8726
8725
.051 [1.30]
.148
[3.8]
Recommended Mtg. Hole Size: .059 (1.50)
5mm SPACING
A
CURRENT
POSITIONS
DIM.
RATING
2
.394 (10.0)
10 Amps
3
.591 (15.0)
CAT.
NO.
8725
8726
8727
Pin Header Strips
(24 pins per strip)
CAT. NO. 8727
NOTES
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
®
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017
59
