FMPA2151 2.4–2.5 GHz and 4.9–5.9 GHz Dual Band Linear Power Amplifier Module (Preliminary)
May 2005
FMPA2151
2.4–2.5 GHz and 4.9–5.9 GHz Dual Band Linear Power
Amplifier Module (Preliminary)
Features
■
Dual band operation in a single package design
■
Integrated bias bypass
■
>30 dB modulated gain 2.4 to 2.5 GHz band
■
>30 dB modulated gain 4.9 to 5.9 GHz band
■
27 dBm output power @ 1 dB compression for both
frequency bands
■
3.5 % EVM at 20 dBm modulated power out (2.4 GHz)
■
3.5 % EVM at 20 dBm modulated power out (5.5 GHz)
■
3.3 V positive supply operation
■
Separate integrated power detectors with 20 dB dynamic
range
■
16 pin 4 x 4 x 1.4 mm leadless package
■
Internally matched to 50 ohms and DC blocked RF
input/output
■
Optimized for use in 802.11a/b/g applications
General Description
The FMPA2151 is a dual frequency band power amplifier
module designed for high performance WLAN applications in
the 2.4-2.5 GHz and the 4.90-5.9 GHz frequency bands. The 16
pin 4 x 4 x 1.4 mm package with internal matching on both input
and output to 50 Ohms minimizes next level PCB space and
allows for simplified integration. Only two external bias bypass
capacitors are required. The two on-chip detectors provide
power sensing capability. The PA’s low power consumption and
excellent linearity are achieved using our InGaP Heterojunction
Bipolar Transistor (HBT) technology.

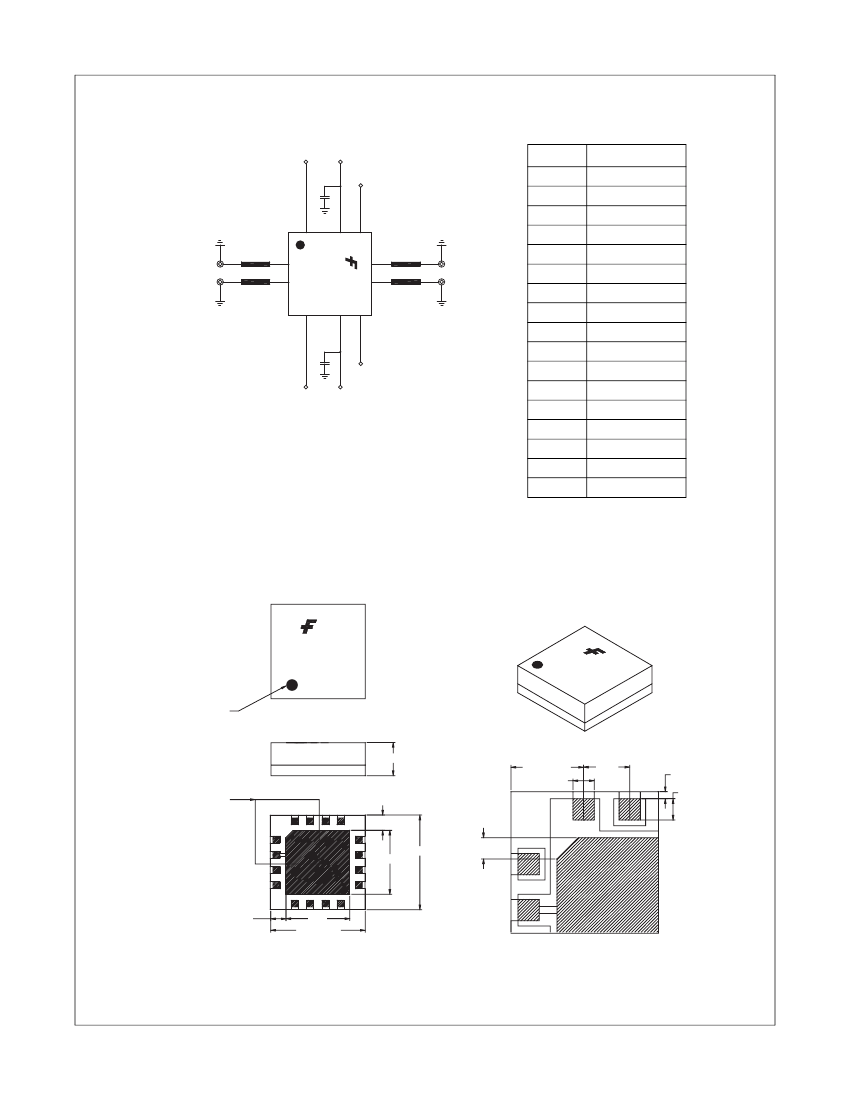

Device (4 x 4 x 1.4mm)
Z
X
21 Y T T
51
Electrical Characteristics
1
802.11g (2.4-2.5 GHz) OFDM Modulation
(with 176 µs burst time, 100 µs idle time) 54 Mbps Data Rate, 16.7 MHz Bandwidth
Parameter
Frequency
Collector Supply Voltage
Mirror Supply Voltage (PA ON 2.4)
Mirror Supply Current (PA ON 2.4)
Gain
Average Packet Current @ +20dBm Pout
EVM @ +20dBm Pout
2
Detector Output @ +20dBm Pout
Detector Output @ +5dBm Pout
POUT Spectral Mask Compliance
3
Min
2.4
3.0
2.6
Typ
3.3
3.0
0.1
31
170
3.5
850
230
+20
Max
2.5
3.6
3.6
Units
GHz
V
V
mA
dB
mA
%
mV
mV
dBm
Notes:
1. VCC=3.3V, PA ON 2.4=3.3V, T
A
=25°C, PA is constantly biased, 50¾ system.
2. Percentage includes system noise floor of EVM=0.8%.
3. Measured at PIN at which Spectral Mask Compliance is satisfied. Two-sample windowing length applied.
©2005 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FMPA2151 Rev. B
FMPA2151 2.4–2.5 GHz and 4.9–5.9 GHz Dual Band Linear Power Amplifier Module (Preliminary)
Electrical Characteristics
1
802.11a OFDM Modulation
(with 176 µs burst time, 100 µs idle time) 54 Mbps Data Rate, 16.7 MHz Bandwidth
Parameter
Frequency
Collector Supply Voltage
Mirror Supply Voltage (PA ON 5.5)
Mirror Supply Current (PA ON 5.5)
Gain
Average Packet Current @ +20dBm Pout
EVM @ +18dBm Pout
2
(4.9 to 5.35GHz)
EVM @ +20dBm Pout
2
(5.35 to 5.9GHz)
Detector Output @ +20dBm Pout
Detector Output @ +5dBm Pout
POUT Spectral Mask Compliance
3
Min
4.9
3.0
2.6
Typ
3.3
3.0
0.1
32
295
3.5
3.5
820
195
+20
Max
5.9
3.6
3.6
Units
GHz
V
V
mA
dB
mA
%
%
mV
mV
dBm
Absolute Maximum Ratings
4
Symbol
VCC
ICC
PA ON
Pin
Tcase
Tstg
Parameter
Positive Supply Voltage
Supply Current
Positive Bias Voltage
RF Input Power
Case Operating Temperature
Storage Temperature
Ratings
6
500
4
0
-40 to +85
-55 to +150
Units
V
mA
V
dBm
°C
°C
Notes:
1. VCC=3.3V, PA ON 5.5=3.3V, T
A
=25°C, PA is constantly biased, 50¾ system.
2. Percentage includes system noise floor of EVM=0.8%.
3. Measured at PIN at which Spectral Mask Compliance is satisfied. Two-sample windowing length applied.
4. No permanent damage with one parameter set at extreme limit. Other parameters set to typical values.
2
FMPA2151 Rev. B
www.fairchildsemi.com
FMPA2151 2.4–2.5 GHz and 4.9–5.9 GHz Dual Band Linear Power Amplifier Module (Preliminary)
Performance Data
802.11b/g OFDM Modulation
(with 176 ms burst time, 100 ms idle time) 54 Mbps Data Rate, 16.7 MHz Bandwidth

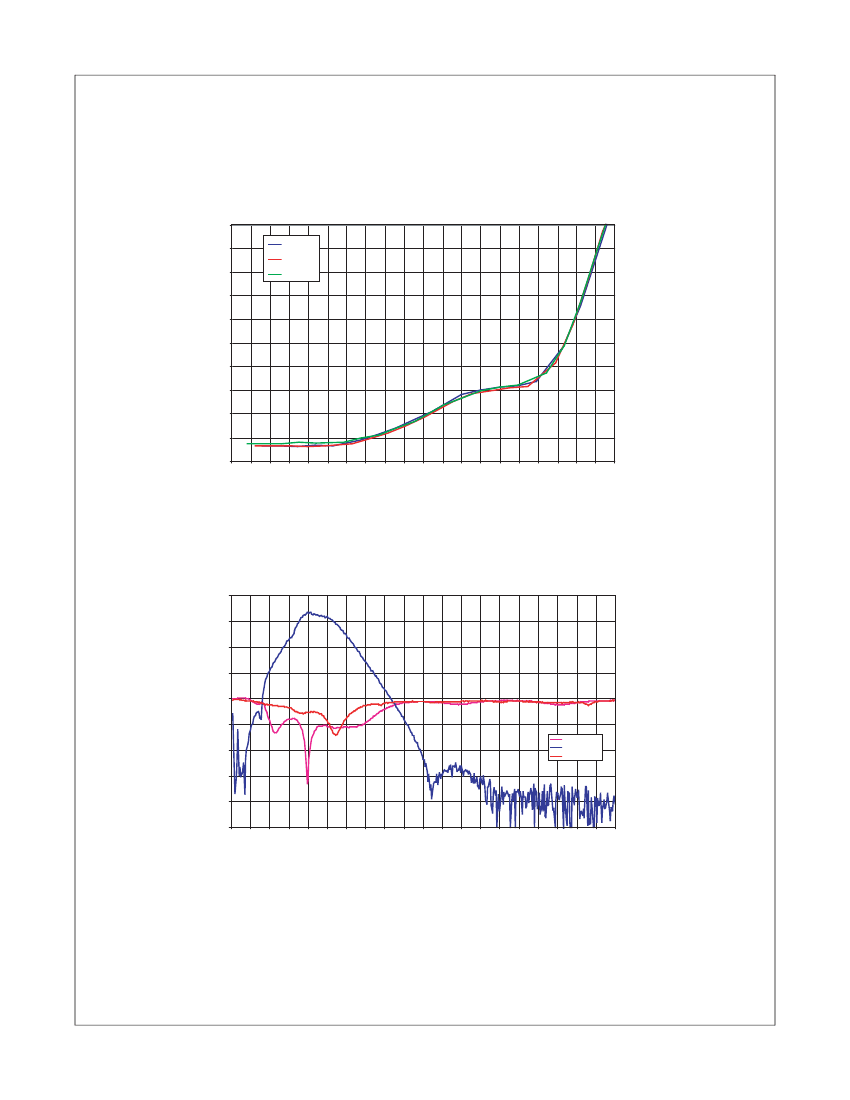

FFPA2151 EVM vs Modulated Output Power 802.11b/g Band
10
9
2.40GHz
2.45GHz
Total Measured EVM (%)
8
7
6
5
4
3
2
1
0
4
5
6
2.50GHz
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Modulated Output Power (dBm)
Note:
Uncorrected EVM. Source EVM is approximately 0.8%.
Single Tone
40
30
20
FFPA2151 S-Parameters 802.11b/g Band
S-Parameter (dB)
10
0
-10
-20
-30
-40
-50
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10
S11 (dB)
S21 (dB)
S22 (dB)
Frequency (GHz)
3
FMPA2151 Rev. B
www.fairchildsemi.com
FMPA2151 2.4–2.5 GHz and 4.9–5.9 GHz Dual Band Linear Power Amplifier Module (Preliminary)
Performance Data
802.11a OFDM Modulation
(with 176 ms burst time, 100 ms idle time) 54 Mbps Data Rate, 16.7 MHz Bandwidth

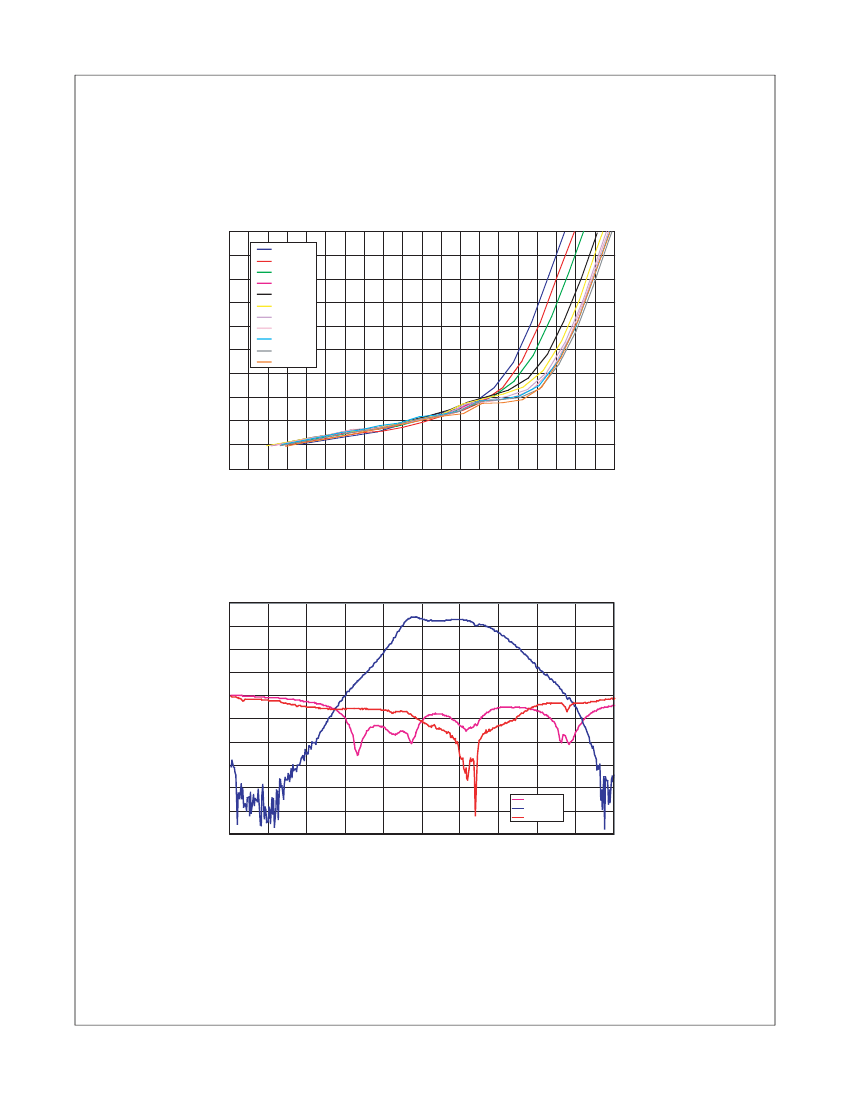

FFPA2151 EVM vs Modulated Output Power 802.11a Band
10
9
8
4.90GHz
5.00GHz
5.10GHz
5.20GHz
5.30GHz
5.40GHz
5.50GHz
5.60GHz
5.70GHz
5.80GHz
5.90GHz
Total Measured EVM (%)
7
6
5
4
3
2
1
0
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Modulated Output Power (dBm)
Note:
Uncorrected EVM. Source EVM is approximately 0.8%.
Single Tone
40
30
20
FFPA2151 S-Parameters 802.11a Band
S-Parameters (dB)
10
0
-10
-20
-30
-40
-50
-60
0
1
2
3
4
5
6
7
8
9
10
S11 (dB)
S21 (dB)
S22 (dB)
Frequency (GHz)
4
FMPA2151 Rev. B
www.fairchildsemi.com
