131-0303-0002

Description
BOARD TERMINATED, FEMALE, RF CONNECTOR, SOLDER, RECEPTACLE
CategoryThe connector    The connector
File Size102KB,5 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

131-0303-0002 Overview

BOARD TERMINATED, FEMALE, RF CONNECTOR, SOLDER, RECEPTACLE

131-0303-0002 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Body/casing typeRECEPTACLE
Characteristic impedance93 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberSCREW-ON
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency2 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
voltage standing wave ratio1.2
Base Number Matches1

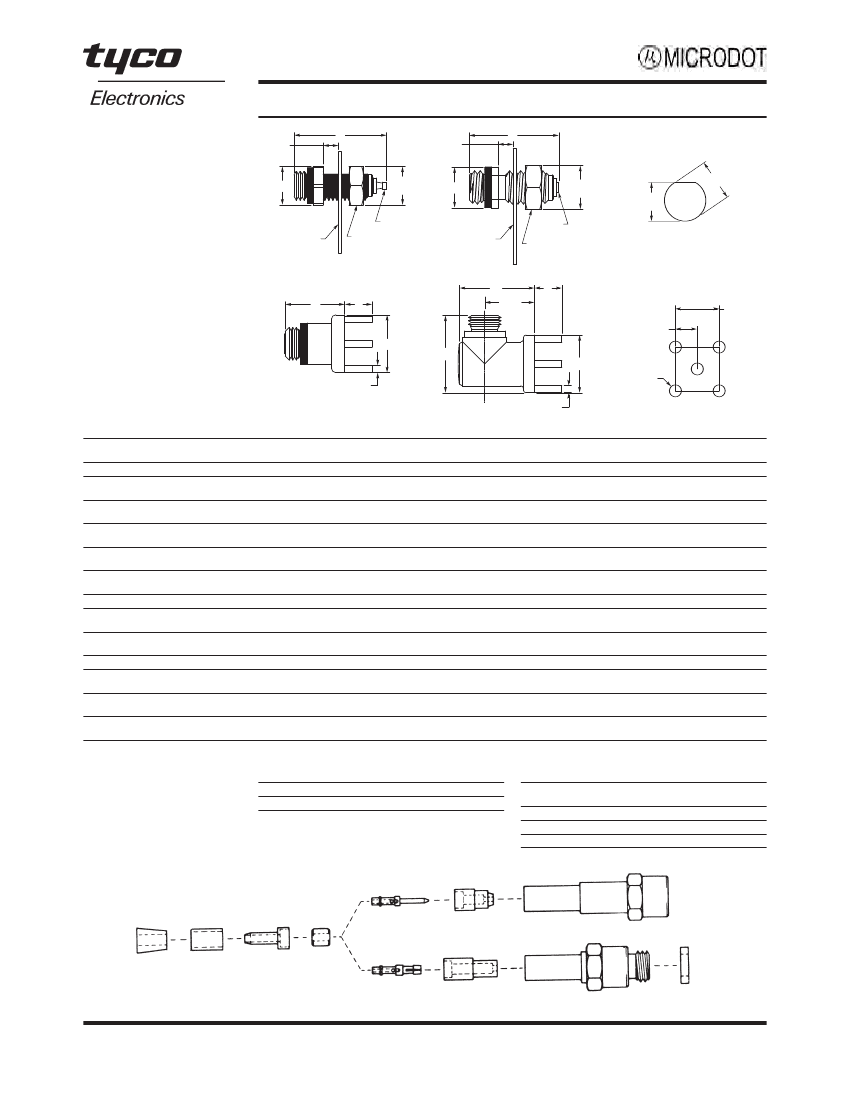

Coaxial Connectors

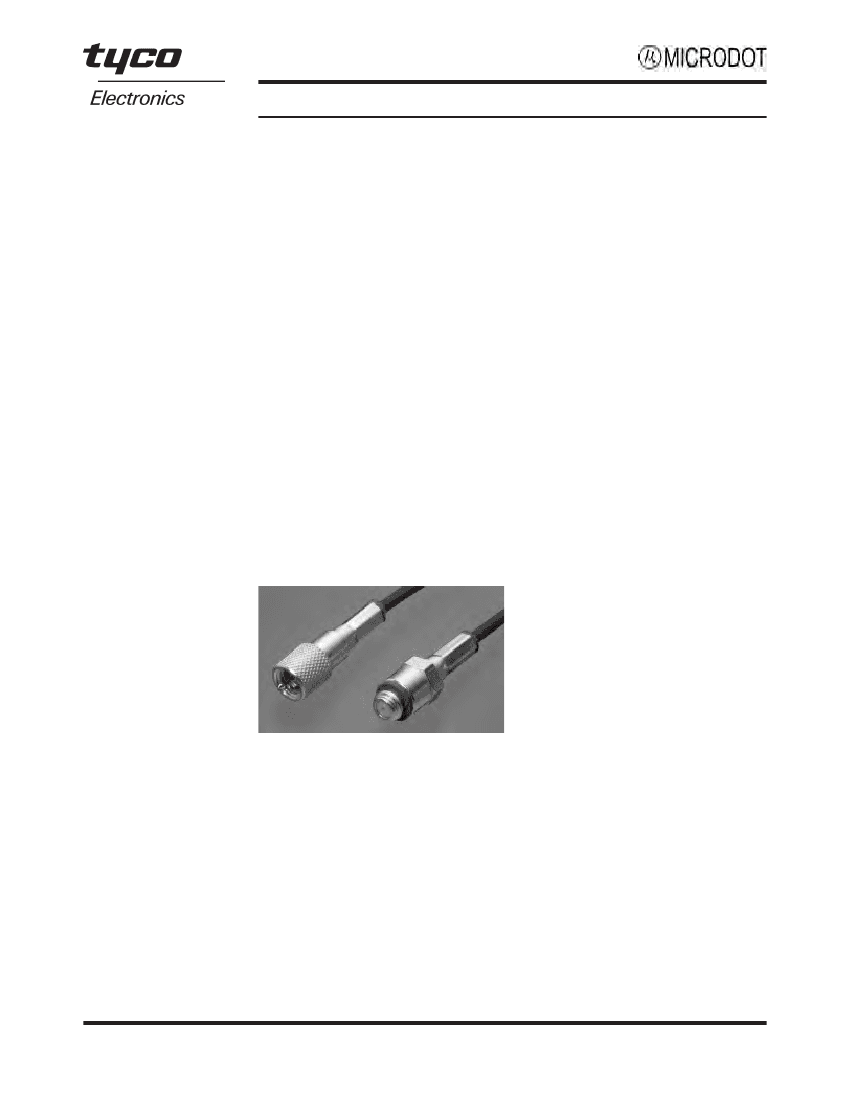

Gold Plated Crimp Style Coaxial Connectors
Performance Data
Summary
For Gold Plated Crimp Style
Coaxial Connectors
Mechanical
Captive Contacts
— Terminated con-
nector contacts captivated from move-
ment in both directions.
Cable Retention
50 Ohm connectors, 15 lb. min.
70 Ohm connectors, 25 lb. min.
93 Ohm connectors, 25 lb. min.
Recommended Coupling Torque
(Threaded Interface)
8 inch/pounds max. [.904 Nm]
Recommended Receptacle
Mounting Torque (Threaded
Interface)
— 8 inch/pounds max.
[.904 Nm]
Contact Protection (Unmated)
Pin contact protected by coupling nut.
Socket protected by insulator and
housing.
Vibration
1,2
— MIL-STD-202, Method
204, Test condition B (15 G peak). No
physical damage or electrical disconti-
nuities in excess of 1 microsecond.
Shock
1,2
— MIL-STD-202, Method
213, Test Condition H. No physical dam-
age or electrical discontinuity after
shock.
Thermal Shock
— MIL-STD-202,
Method 107, Test Condition C.
Moisture Resistance
1
— MIL-STD-
202, Method 106.
Salt Spray
1
— MIL-STD-202, Method
101, Test Condition B (48 hours).
Materials
Housing, Nut, Inner Sleeve
Brass per ASTM-B-16, 35% Zinc.
Insulator
— TEFLON per
ASTM-D-1710.
Pin & Socket Contacts
— Beryllium
Copper per ASTM-B-196.
Middle Sleeve
— Copper Alloy.
Facial Seal
4
, Sealing Sleeve &
Gasket
— Silicone Rubber per
ZZ-R-765.
Lockwasher
— #425 Bronze Alloy.
Plating
Contacts, Housing, Nut,
Inner Sleeve, Middle Sleeve,
Lockwasher
— Gold per MIL-G-45204,
Type II, Grade C, Class 1.
NOTES:
1
Screw-On Series threaded inter-
face.
2
Tyco Electronics recommends the
use of wired connectors in vibration
and shock environments. See indi-
vidual specifications for connectors
with wire holes.
3
VSWR is a system specification.
Where performance is critical,
purchase Tyco Electronics cable
assemblies (See page 127) and
specify VSWR testing and mating
connector part numbers.
Electrical
Impedance
— Designed to be com-
patible with 50, 70, or 93 Ohm miniature
coaxial cable.
Dielectric Withstanding Voltage
1000 volts RMS at sea level.
Contact Resistance
— 4 milliohms
max., D.C.
Contact Capacity
— 3 amps, D.C.
Insulation Resistance
— 5 x 10
3
Megohms min. @ 500 volts D.C.
Voltage Standing Wave Ratio
3
(VSWR)
— Typical 50 Ohm series, 1.2
max. to 2 GHz.
Assembly Methods
Straight Plugs & Jacks
— Cable
Inner Conductor: Crimped to contact.
Cable Shield: Crimped under housing.
Right-Angle Plugs
— Cable Inner
Conductor: Crimped to contact. Cable
Shield: Crimped under housing.
Environmental
Temperature Range (Continuous
Service)
— -80°F to +392°F.
[-62°C to +200°C].
112
Catalog 1308638
Revised 8-05
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
