B64290A0084X049 datasheet, PDF

Datasheet> All Categories > Passive components> B64290A0084X049

B64290A0084X049: DescriptionFERRITE CORE; CategoryPassive components; File Size98KB，5 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B64290A0084X049 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B64290A0084X049	-	-	View	Buy Now

B64290A0084X049 Overview

FERRITE CORE

B64290A0084X049 Parametric

Parameter Name	Attribute value
Kernel type	Magnetic ring
Tolerance	-
gap	No notch
Material	-
surface	Uncoated
Supplier device packaging	-
high	-
length	-
width	-
diameter	-

Preview

Download Datasheet

View All

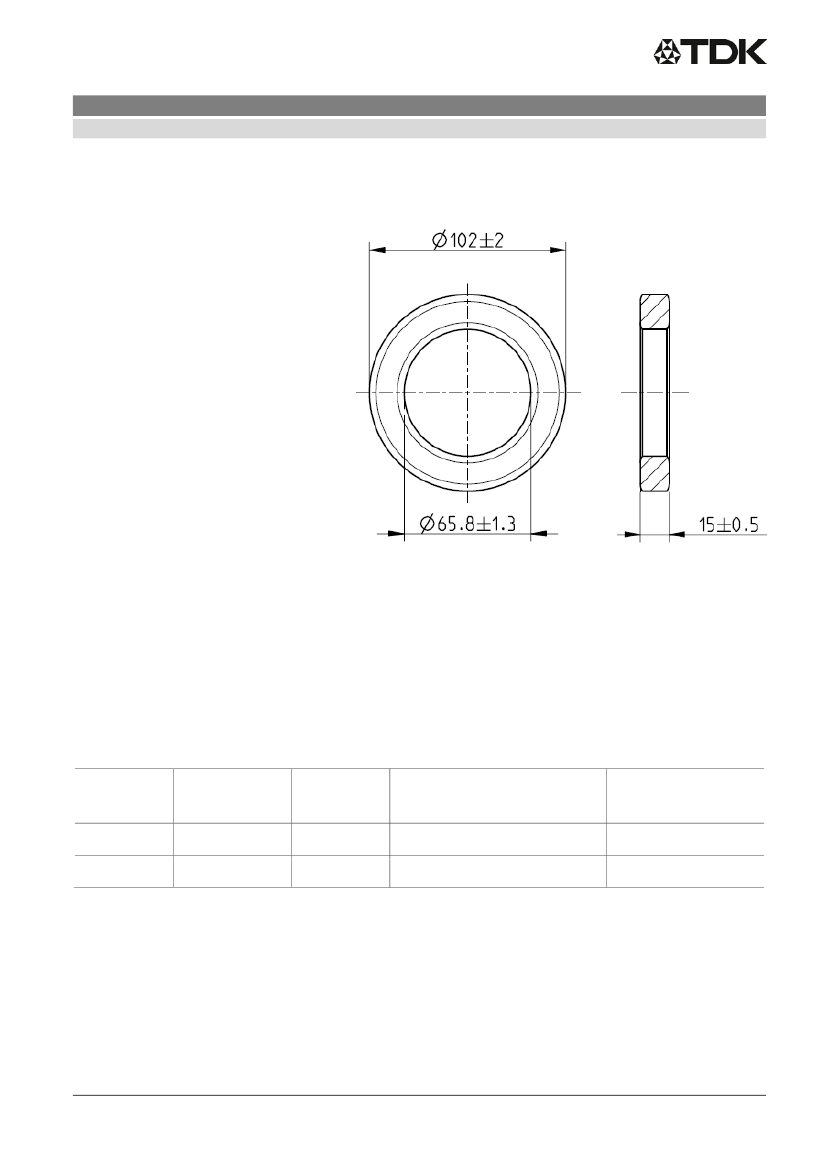

R102/65.8/15

Ferrite core

Series/Type:

Ordering code:

Date:

Version:

B64290

B64290A0084X049

2017-09-21

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then

change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.

Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!

Identification/Classification 1

R102/65.8/15

(header 1 + top left bar):

Identification/Classification 2

Ferrite core

(header 2 + bottom left header bar):

Ordering code: (top right header bar)

B64290A0084X049

Series/Type: (bottom right header bar)

B64290

Preliminary data (optional):

Department:

SMP MAG D

Date:

2017-09-21

Version:



EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

R102/65.8/15

Ferrite core

B64290A0084X049

B64290

Cautions and warnings

Mechanical stress and mounting

Ferrite cores have to meet mechanical requirements during assembling and for a growing number of

applications. Since ferrites are ceramic materials one has to be aware of the special behavior under

mechanical load.

As valid for any ceramic material, ferrite cores are brittle and sensitive to any shock, fast temperature

changing or tensile load. Especially high cooling rates under ultrasonic cleaning and high static or

cyclic loads can cause cracks or failure of the ferrite cores.

For detailed information see data book, chapter

“General - Definitions, 8.1”.

Effects of core combination on AL value

Stresses in the core affect not only the mechanical but also the magnetic properties. It is apparent

that the initial permeability is dependent on the stress state of the core. The higher the stresses are in

the core, the lower is the value for the initial permeability. Thus the embedding medium should have

the greatest possible elasticity.

For detailed information see data book, chapter

“General - Definitions, 8.1”.

Heating up

Ferrites can run hot during operation at higher flux densities and higher frequencies.

NiZn-materials

The magnetic properties of NiZn-materials can change irreversible in high magnetic fields.

Ferrite Accessories

EPCOS ferrite accessories have been designed and evaluated only in combination with EPCOS

ferrite cores. EPCOS explicitly points out that EPCOS ferrite accessories or EPCOS ferrite cores may

not be compatible with those of other manufacturers. Any such combination requires prior testing by

the customer and will be at the customer‘s own risk.

EPCOS assumes no warranty or reliability for the combination of EPCOS ferrite accessories with

cores and other accessories from any other manufacturer.

Processing remarks

The start of the winding process should be soft. Else the flanges may be destroyed.

– Too strong winding forces may blast the flanges or squeeze the tube that the cores can not be

mounted any more.

– Too long soldering time at high temperature (>300 °C) may effect coplanarity or pin arrangement.

– Not following the processing notes for soldering of the J-leg terminals may cause solderability

problems at the transformer because of pollution with Sn oxyde of the tin bath or burned

insulation of the wire. For detailed information see chapter

“Processing notes”,

section 2.2.

– The dimensions of the hole arrangement have fixed values and should be understood as a

recommendation for drilling the printed circuit board. For dimensioning the pins, the group of

holes can only be seen under certain conditions, as they fit into the given hole arrangement. To

avoid problems when mounting the transformer, the manufacturing tolerances for positioning the

customers’ drilling process must be considered by increasing the hole diameter.

SMP MAG D

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 5
