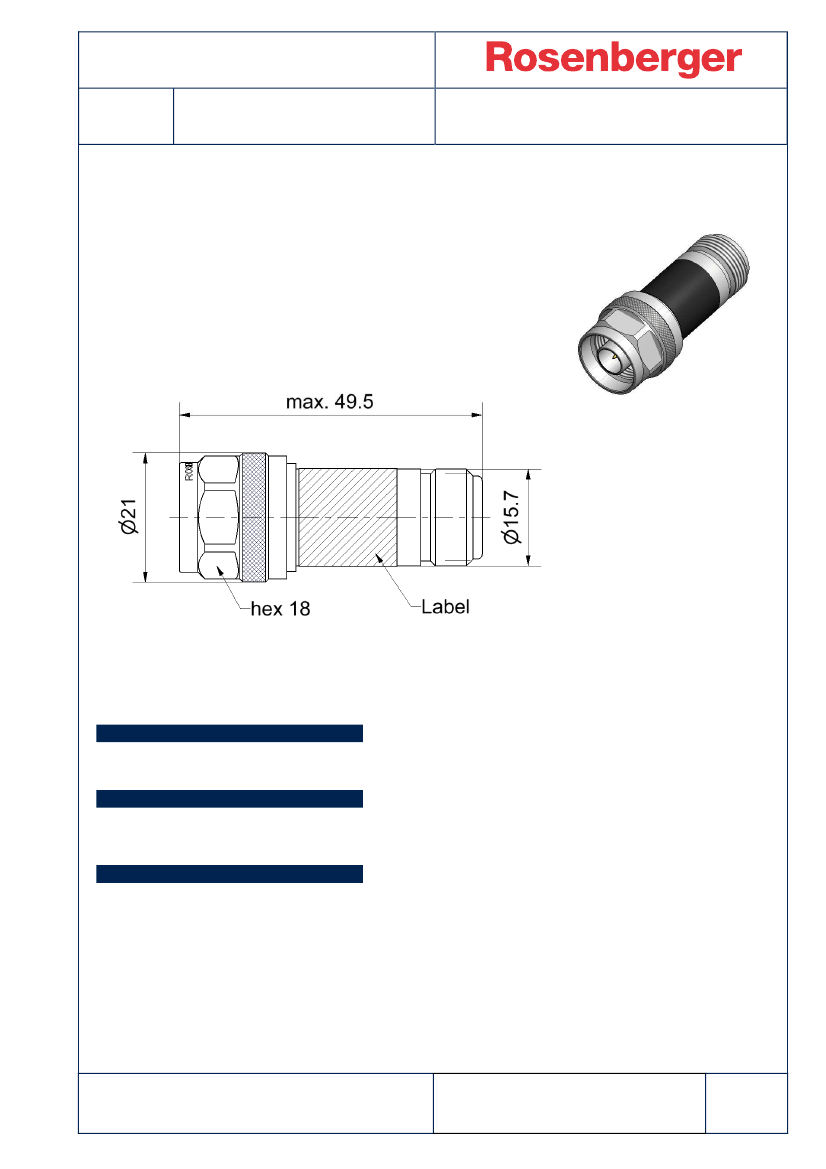

Technical Data Sheet
N 50
Ω
Attenuator
Plug/Jack
53AS102-K20N3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 61169-16
Documents
N/A
Material and plating
Connector parts
Center contact - plug
Center contact - jack
Outer contact
Coupling nut
Dielectric
Substrate
Material
Brass
CuBe
Brass
Brass
PTFE
Al
2
O
3
Plating
Gold, min. 1.27 µm, over nickel
Gold, min. 1.27 µm, over nickel
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
N 50
Ω
Attenuator
Plug/Jack
53AS102-K20N3
50
Ω
DC to 12.4 GHz
≥
26.4 dB, DC to 4 GHz
≥
20.8 dB, 4 GHz to 10 GHz
≥
19.1 dB, 10 to 12.4 GHz
20 dB
±
0.3 dB, DC to 4 GHz
20 dB
±
0.6 dB, 4 GHz to 8 GHz
20 dB
±
1.0 dB, 8 GHz to 12.4 GHz
2 W at 25°C
derated linearity to 0 Watts at 125°C
Electrical data
Impedance
Frequency
Return loss
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Attentuation
Power handling
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation
Maximum torque
Recommended torque
≥
500
≥
450 N
≥
28 N
1.70 Nm
0.70 Nm to 1.10 Nm
Environmental data
Operating temperature range
1
Storage temperature range
RoHS
1
0 °C to +50 °C
-40 °C to +85 °C
compliant
Temperature range over which these specifications are valid.
Packing
Standard
Weight
1 pce in bag
67.0 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Kerstin Herzog
Date
06.01.05
Approved
Lars Ramtke
Date
22.01.16
Rev.
b00
Engineering change number
16-0025
Name
Marion Striegler
Date
22.01.16
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
