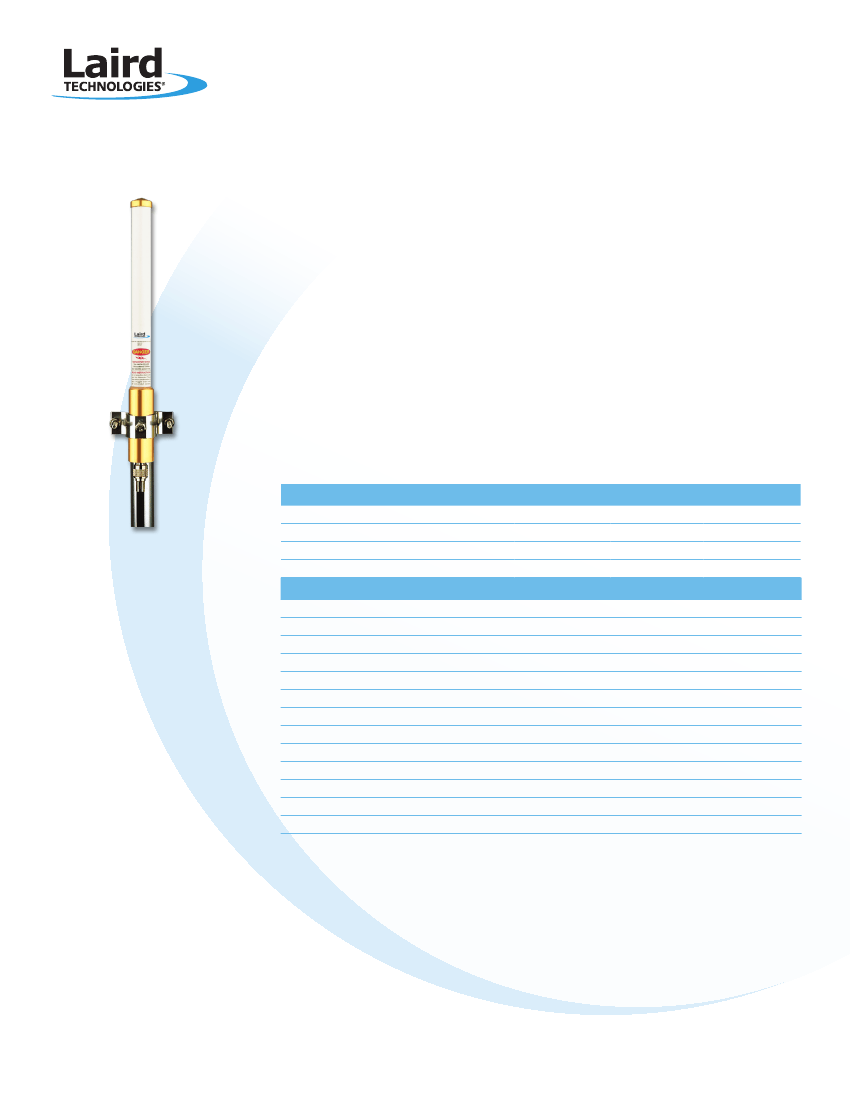

Quad-band Omnidirectional Antenna
FG16397
Innovative
Technology
for a
Connected
World
FiberglAss bAse stAtiOn AntennAs FeAture industry leAding design
cOMpOnents thAt perFOrM in extreMe cOnditiOns
The FG16397 quad-band omnidirectional base station antenna incorporates a collinear design that is
enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
The radiating elements are made from high efficiency copper and are carefully phased to provide
maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from
the transmission line, resulting in a “cold” sleeve that allows for greater freedom in mounting.
The antenna’s high quality and well-focused beam provides the best efficiency with highest gain
.
FeAtures
•
Quad-band
• Every FG fiberglass base antenna is tested on a
network analyzerbefore shipping to assure the
best performance
• Special UV Treated - Stands up to the sun
• Durable gold anodized sleeve and cap
with N-female connector
• FedEx/UPS Shippable
MArkets
•
Omnidirectional outdoor antenna
applications used in commercial, public safety,
and government applications around the globe
• Typical applications include land based and
marine radio and voice and data transmission
• The quad-band feature allows the antenna
to be used in many diverse applications
ELECTRICAL SpECIfICATIonS
frequency Range
peak Gain
Elevation Beamwidth at Half-power
Azimuth Beamwidth at Half-power
806-896 MHz
2 dBi
110°
360°
890-960 MHz
1 dBi
90°
360°
1850-1990 MHz
3.3 dBi
60°
360°
2400-2500 MHz
2 dBi
70°
360°
MECHAnICAL SpECIfICATIonS
Maximum power
nominal Impedance
polarization
VSWR
Termination
Mounting Bracket
Lightning protection
Antenna Length
Weight (Mass)
Diameter
Rated Wind Velocity
Rated Wind Velocity (with 1/2”(12.7mm) radial ice)
Wind Resistance
All data relevant to all frequencies
100 Watts
50Ω
Vertical
≤
2.0:1
n-female Connector
optional p/n: fM2Sp Mounting Kit
Lightning Arrestor p/n: LABH350nn (sold separately)
14” (35.56cm)
0.844 lbs
1.310” (33.27mm)
125mph (210kph)
85mph (137kph)
0.1245 sq. ft
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
TM
www.lairdtech.com
Quad-band Omnidirectional Antenna
FG16397
Innovative
Technology
for a
Connected
World

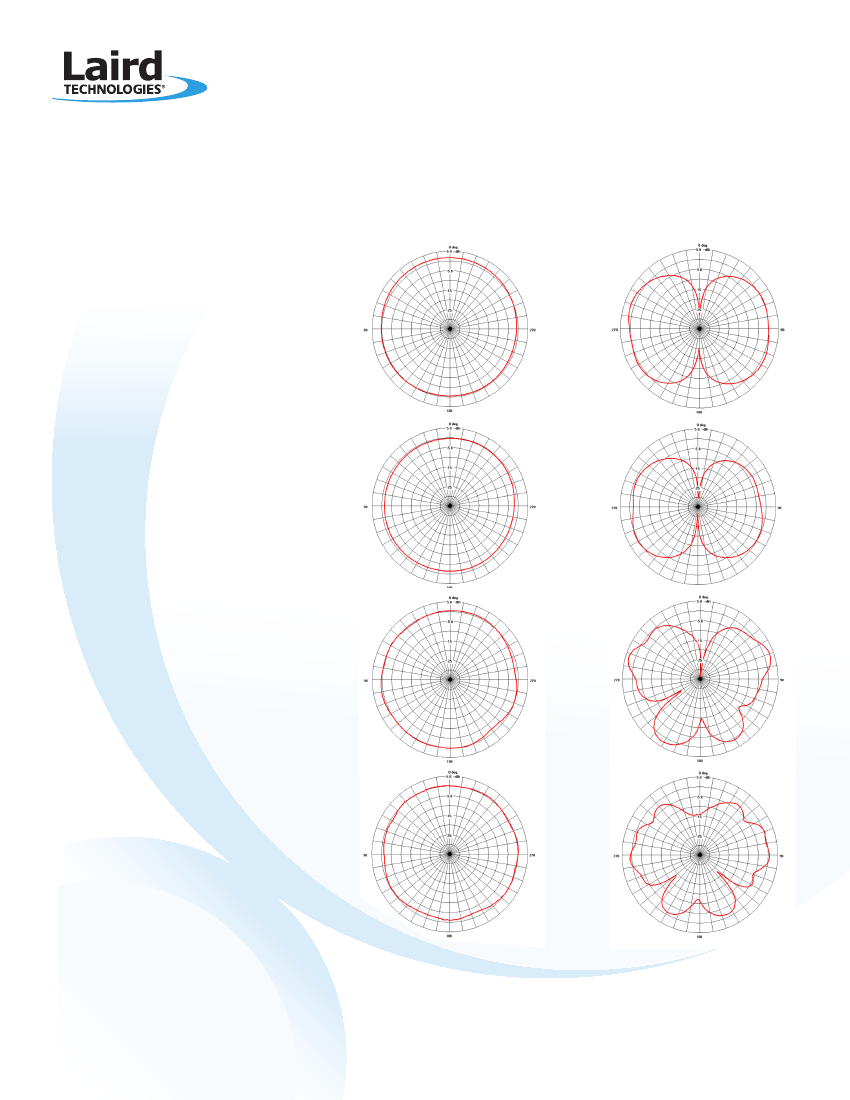

pAtterns
Azimuth
806-896 MHz
Elevation
890-960 MHz
1850-1990 MHz
2400-2500 MHz
AnT-DS-fG16397 0510
